Thermax AF2 - Parts Diagrams Canister Only; Parts Recovery Tank Assembly

14
For more information or to place an order visit www.thermaxaf.com

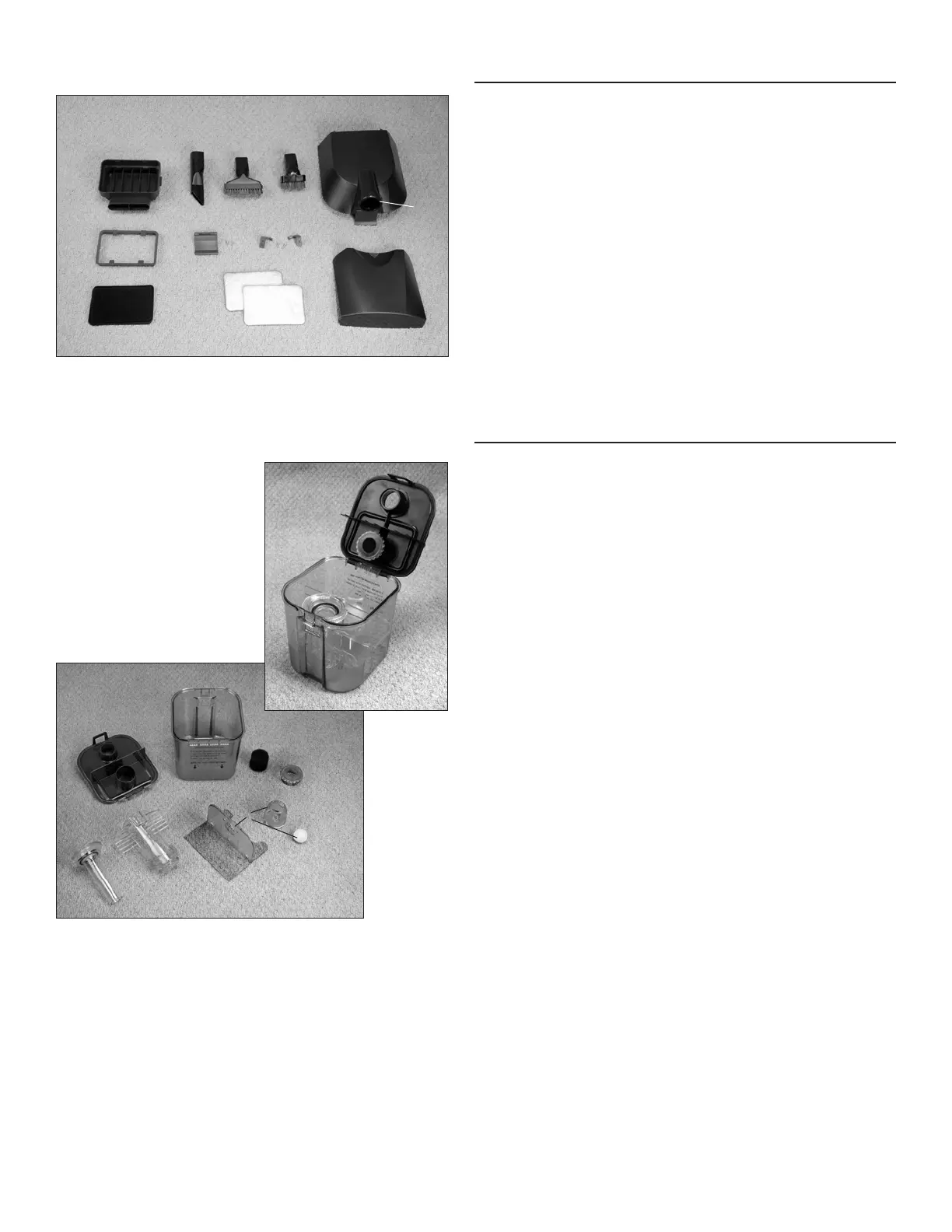

Parts Diagrams Canister Only
1. Front Lid Assembly Complete 24-105-000
2. Hose Lock Assembly 37-025-000
3. Rear Lid Assembly 24-050-001
4. Crevice Tool 01-242-01
5. Hinge Kit with Screws 32-905-000
6. Latch Kit with Screws 32-902-000
7. Upholstery Tool with slide on brush 35-300-000
8. Dusting Tool with brush 35-301-00
9. Electrostatic Allergy Filter, 2 pk 05-315-00
10. Primary Filter Base 01-045-00
11. Filter Retainer 04-041-00
12. Primary Foam Filter 05-316-00
Parts Recovery Tank Assembly
1. Recovery Tank Assembly with lid (English) 22-050-000
2. Recovery Tank 01-280-00
3. Recovery Tank Lid Assembly 24-260-000
4. Baffle/Ball/Cage Assembly 32-910-000
5. Foam Core Filter 05-329-00
6. Foam Core Holder 01-224-00
7. Inner Filtration Tube 32-913-000
8. Outer Filtration Tube Chamber 01-220-00
1
3
2
7
8
4
6
5
10
3
4 7 8
5
11
12
9
6
1
2
