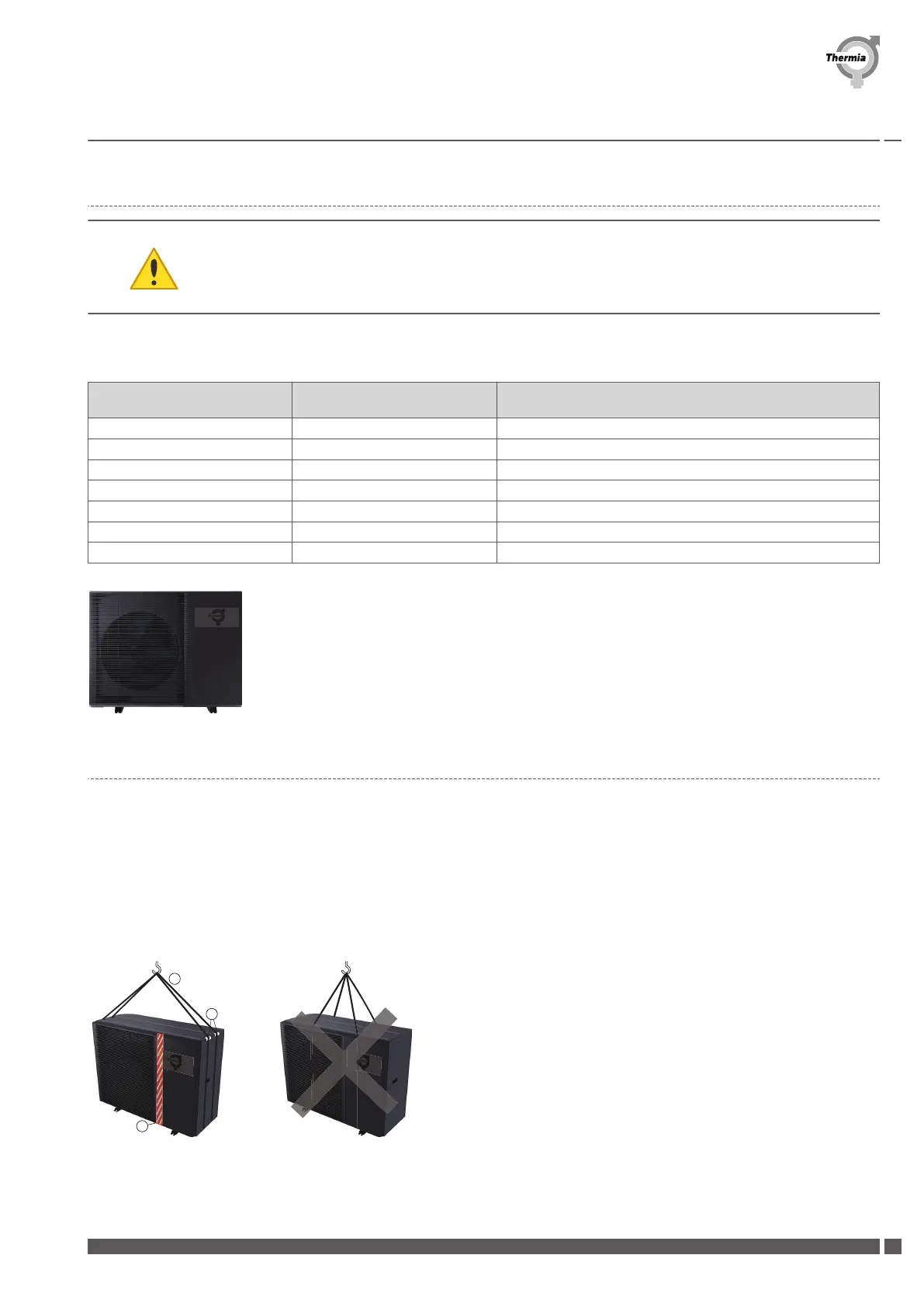

4.2.2 Delivery check
Caution Inspect the product shipped and check if damaged during transport. If
the product has some damages, DO NOT INSTALL and immediately
discuss about the damages with the carrier or retailer (if the installer or
the authorized technician has collected the material from the retailer.)
Check that the delivery contains the following components:
Heat pump (Outdoor unit) Indoor unit iTec XT Standard Indoor unit iTec XT Total, iTec XT Total EQ, iTec XT Compact, iTec
XT Plus
Document set 1 Outdoor sensor (NTC, 150 Ohm) 1 Outdoor sensor (NTC, 150 Ohm)
Flow guard (12 litres/min) 3 Pipe sensors (NTC, 150 Ohm) 2 Rubber sleeves (N/A for iTec XT Plus)
Shut-off valve with filter 1 Safety valve, 9bar (N/A for iTec XT Plus)
Shut-off valve (no filter)
Ferrite (for communication cable)
Drain pipe
Cable inlets (M20 & M40)
4.3 Moving the outdoor unit
▪
Do not slant the product more than 30˚when carrying it. Do not lay the product down sideways!
▪
Select the moving route in advance.
▪
Be sure that moving route is clear of obstacles.
▪
The surface of the heat exchanger is sharp. Be careful not to be injured while moving and installing.
Moving the outdoor unit by wire rope
▪
Fasten the outdoor unit by two 8m or longer wire ropes as shown in the picture below. To prevent from damage or scratches, insert
a piece of cloth between the outdoor unit and ropes, then move the unit.
1. Wire rope
2. Plate protection cloth
3. Center of gravity
Installation Guide iTec XT
Thermia AB AWIXT01IG0102
25
