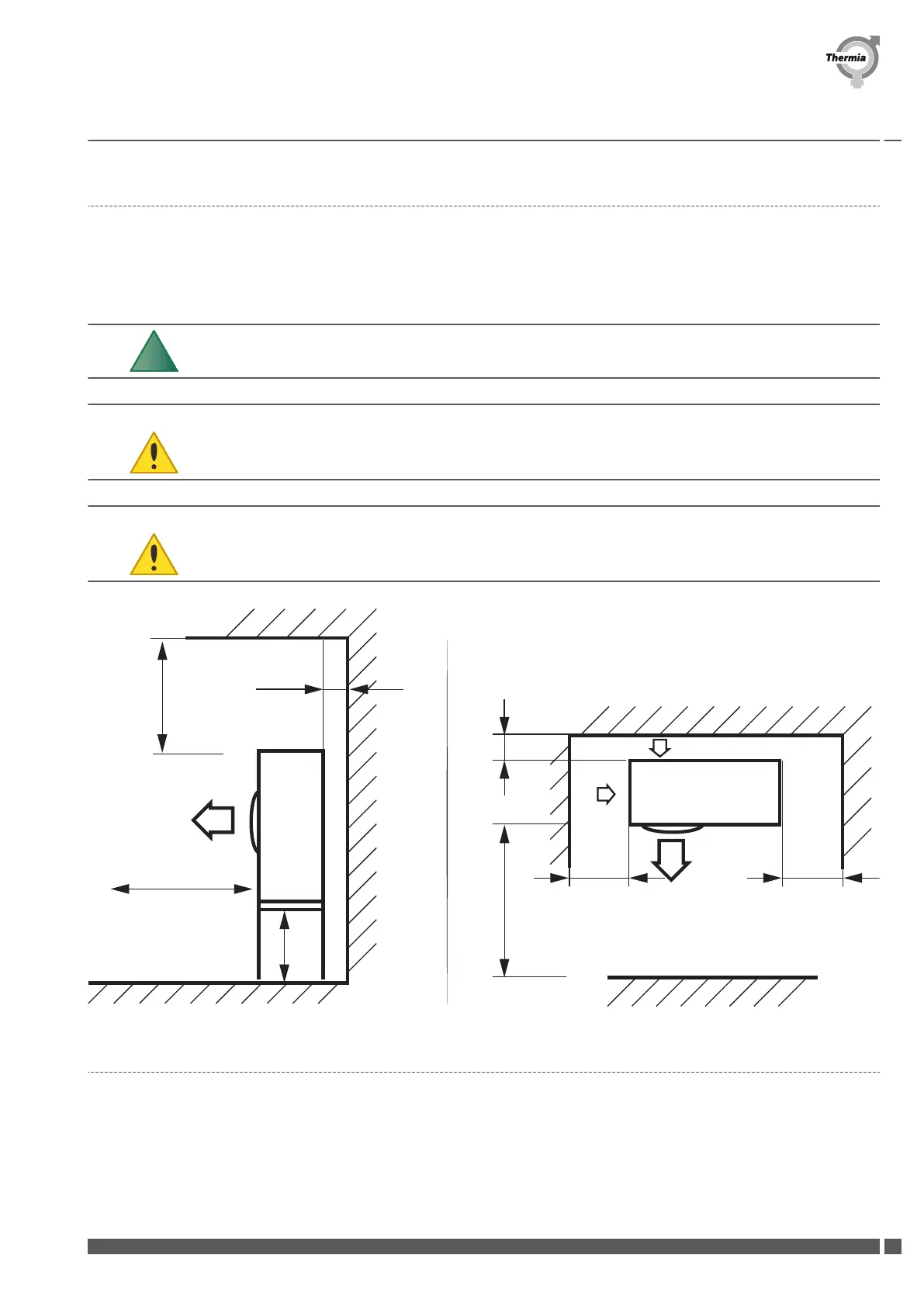

4.4.1 Space requirements for outdoor unit
Space requirements for positioning one outdoor unit
The outdoor and indoor unit shall be installed in compliance with the spaces described in the installation manual, to ensure accessibility
from both sides and allow repairs or maintenance operations to be carried out. If the units installed without complying with procedures
described in manual, additional expenses can be asked because special harnesses, ladders, scaffolding or any other elevation system for
repair service will NOT be considered part of the warranty and will be charged to the end customer.
The outdoor unit may not be enclosed.
Caution Incorrect positioning of the outdoor unit risks reduction of perform-
ance.
Caution The units must be installed according to distances declared, in order
to permit accessibility from each side, either to guarantee correct op-
eration of maintenance or repairing products.
300 3000
3000
1000 1000
400
1000
300
4.5 Outdoor unit installation
The outdoor unit must be installed on a rigid and stable base to avoid any increase in the noise level and vibration, particularly if the
outdoor unit is to be installed in a location exposed to strong winds or at a height, the unit must be fixed to an appropriate support.
▪
Fix the outdoor unit with anchor bolts.
Installation Guide
iTec XT
Thermia AB AWIXT01IG0102
33
