Thermia iTec XT Installation Guide

N
Be sure to install both an earth leakage detector and circuit breaker
with specified capacity in accordance with relevant local and national
regulations. -If it is not installed properly, it may cause electric shocks
and fire.

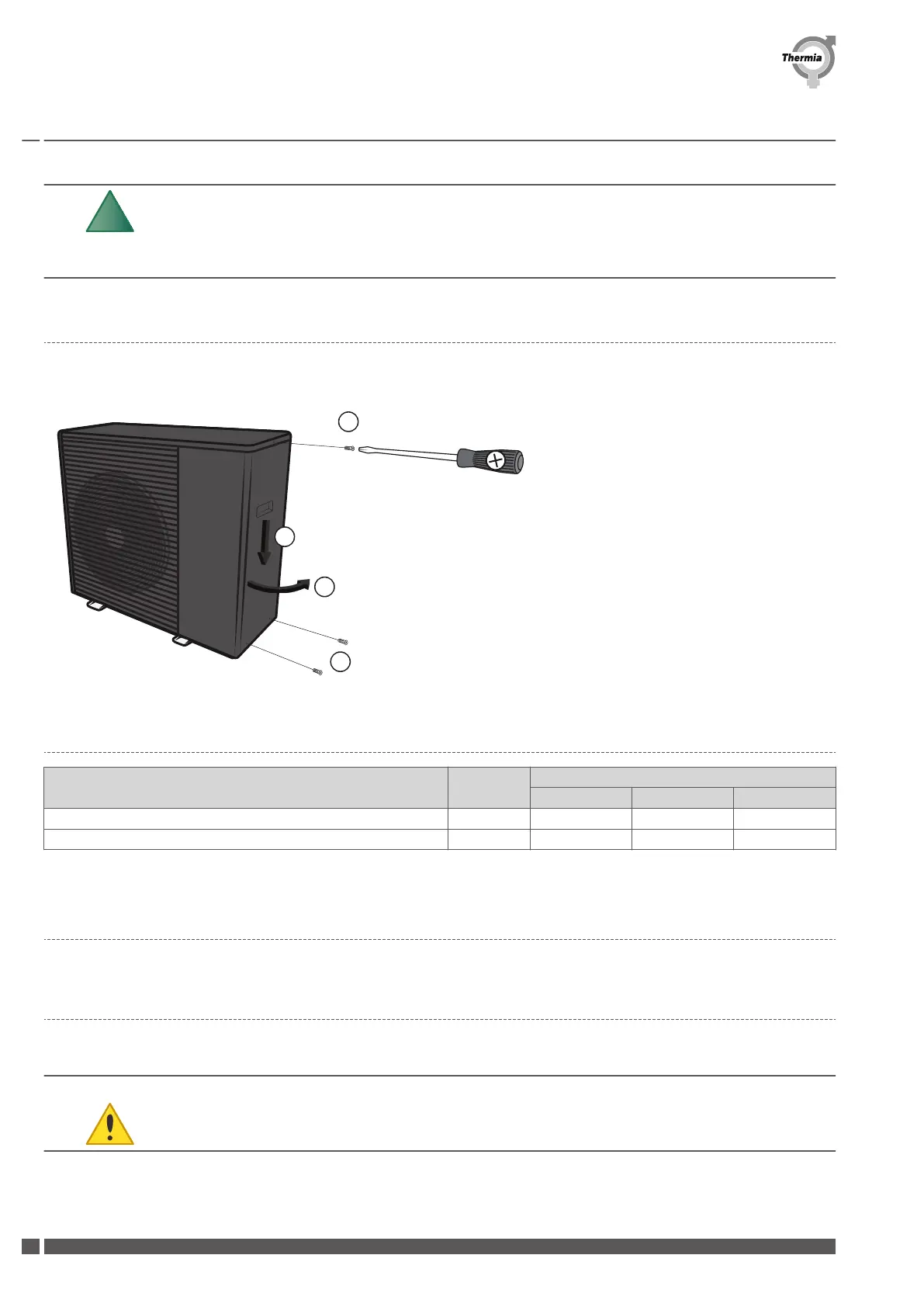

6.1 How to access the outdoor unit electrical cabinet
Follow the instructions in the images below to proceed:
1
2
3
1
1. To access the electrical panel on the outdoor
unit, start by unscrewing the three screws, as
shown in the picture.
2. Pull the panel down.
3. Pull the panel to the side, from the front cor-
ner of the panel.
6.1.1 Fuse table outdoor unit
Outdoor Unit Mains Supply Unit Fuse size
10kW 14kW 16kW
230V 1-N, 50Hz A 25 32 32
400V 3-N, 50Hz A 10 16 16
Tab. 1: Fuse table
6.2
Indoor unit
6.2.1 Installation
The indoor unit contains the necessary components for voltage supply, control systems and operation.
Caution The indoor unit must be installed in a frost-free environment.
Installation Guide iTec XT
AWIXT01IG0102 Thermia AB
44
