Thermo Haake DK15 - Immersion Coolers EK20 and EK30

Functional Elements
10

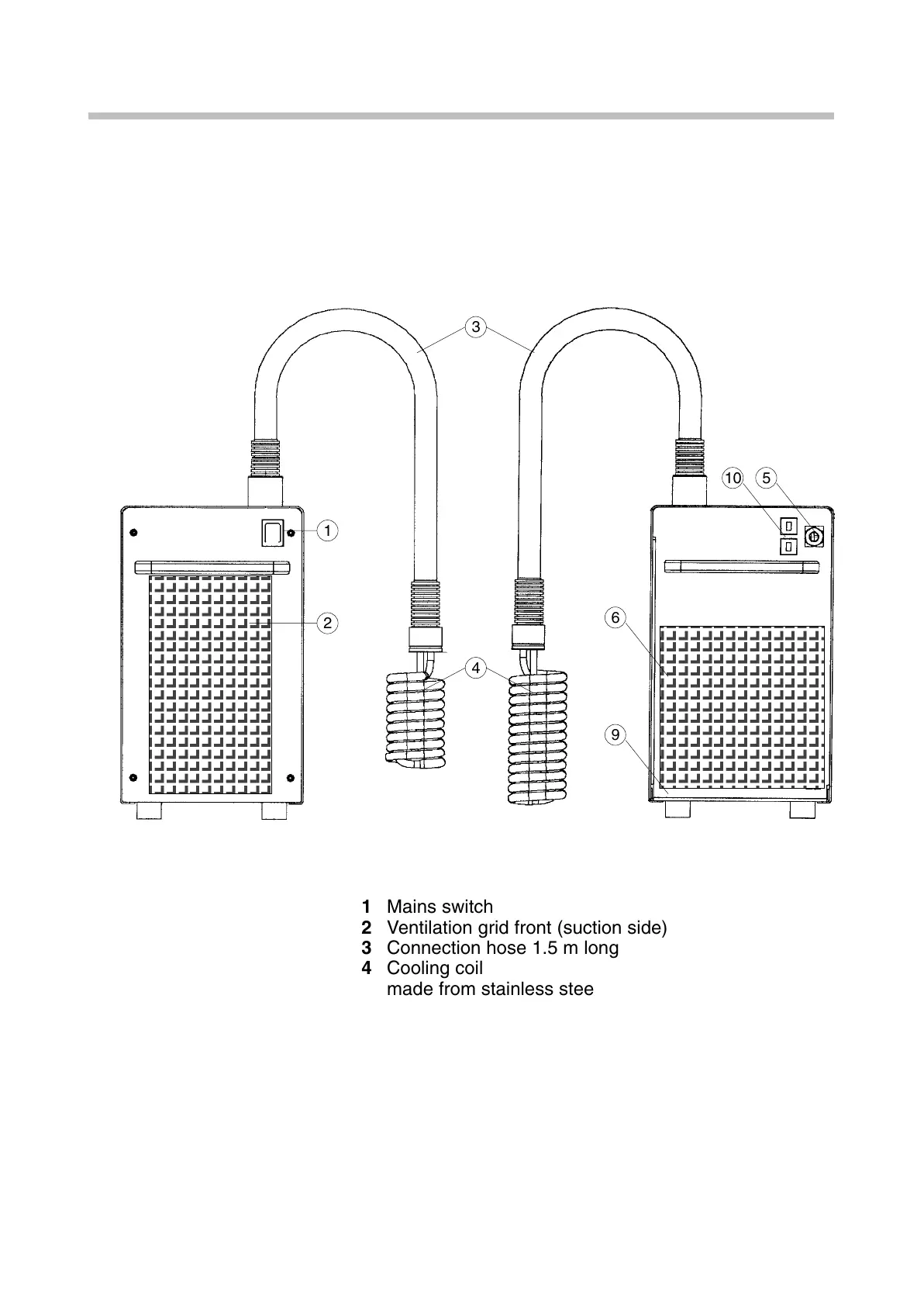

5.2 Immersion coolers EK20 and EK30:
EK20 EK30
Front Rear
ÀÀÀÀÀÀ
ÀÀÀÀÀÀ
ÀÀÀÀÀÀ
ÀÀÀÀÀÀ
ÀÀÀÀÀÀ
ÀÀÀÀÀÀ
ÀÀÀÀÀÀ
ÀÀÀÀÀÀ
ÀÀÀÀÀÀ
ÀÀÀÀÀÀ
ÀÀÀÀÀÀÀÀ
ÀÀÀÀÀÀÀÀ
ÀÀÀÀÀÀÀÀ
ÀÀÀÀÀÀÀÀ
ÀÀÀÀÀÀÀÀ
ÀÀÀÀÀÀÀÀ
ÀÀÀÀÀÀÀÀ
ÀÀÀÀÀÀÀÀ
1
2
3
4
5
6
10
9
1 Mains switch
2 Ventilation grid front (suction side)
3 Connection hose 1.5 m long
4 Cooling coil
made from stainless steel 18/8
5 Mains cable
6 Ventilation grid rear (air exhaust)
9 Name plate
10 Circuit breakers (with 115V unit only 1 circuit breaker)
