Fitting an Evaporator to a Bath Bridge
12
7. Fitting an Immersion Cooler Evaporator
to a Thermo Haake Bath Bridge
1

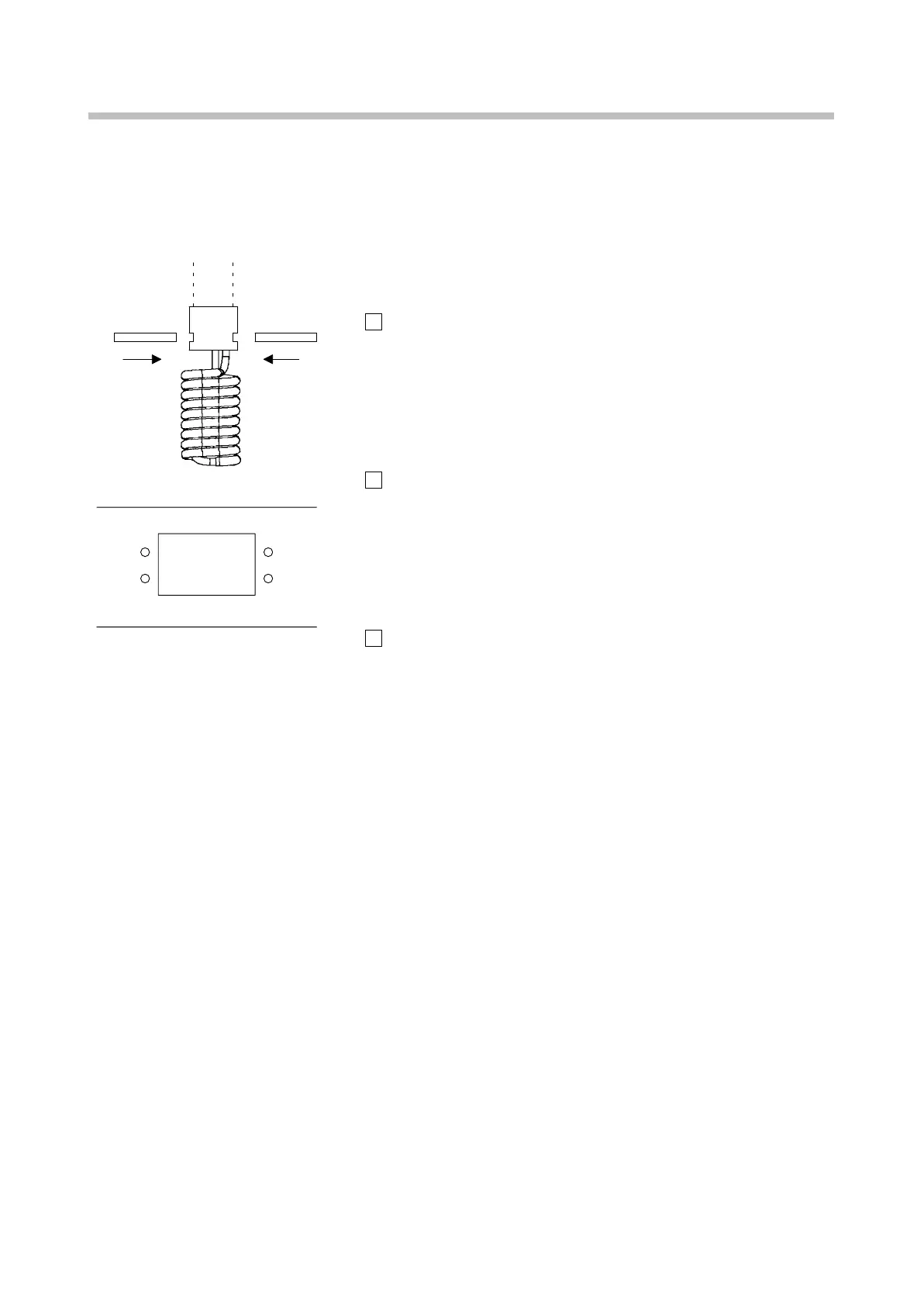

Slide the supplied metal plates into the slot above the
cooling coil.
2
Remove the covering plate on the Thermo Haake bath
bridge by unscrewing two screws.
3
Insert the evaporator through the opening and secure
the fitted plates with 4 screws.
Do not bend the evaporator coil!
