Connecting the Hoses (only for the DK15)
11
6. Connecting the Hoses
(only for flow-through cooler DK15)
Inlet = Hose from external object
Outlet = Hose to return nozzle on circulator

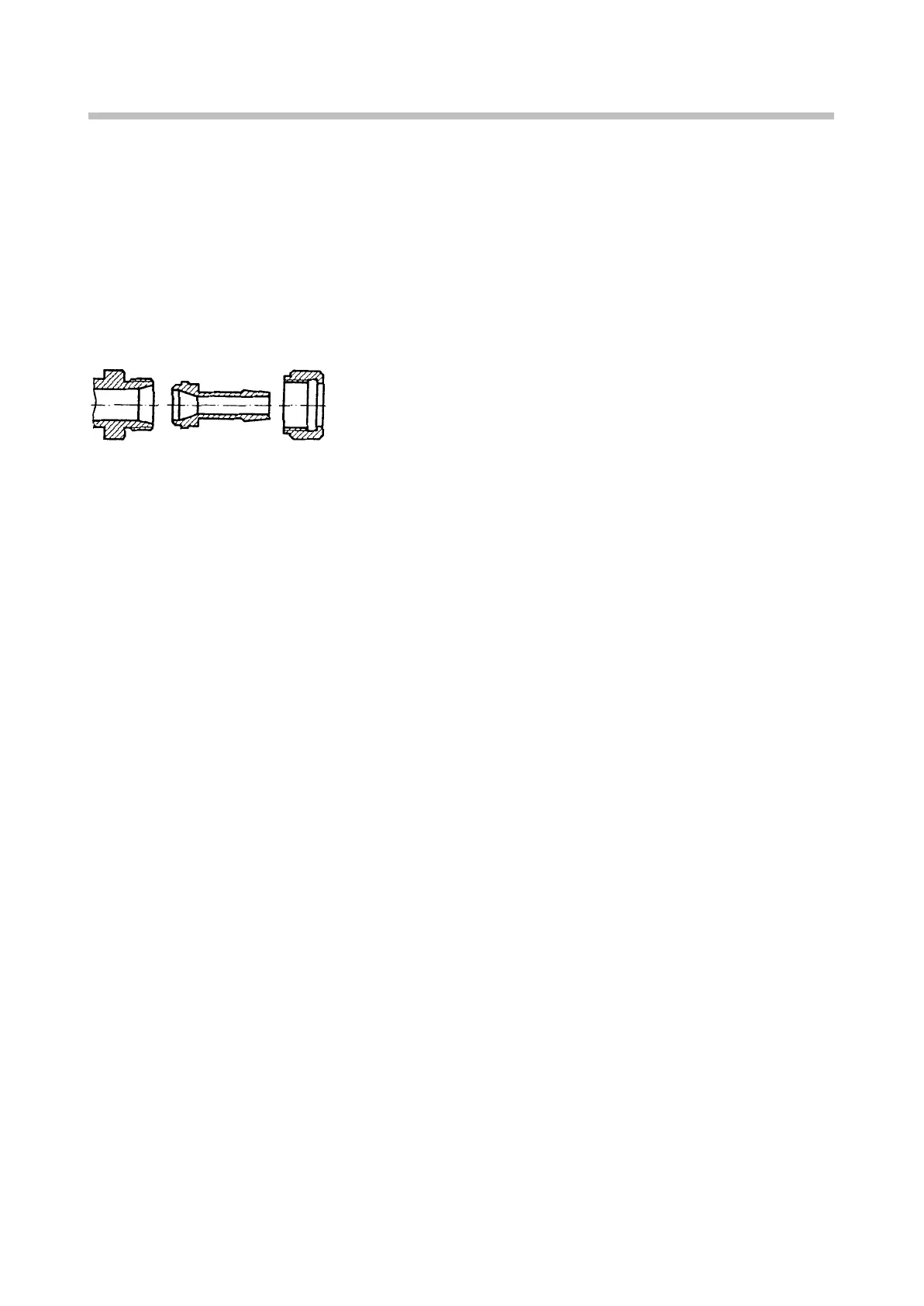

The hose connections pieces for 8 or 12 mm ∅ B and the
unions E supplied with the unit are screwed onto the
threaded nozzles A (7 + 8). Threaded nozzles A must be
held secured using a wrench.
Hoses must not be folded or bent sharply!
A wide radius should be used if turns have to be
made!
Hoses might become brittle after prolonged use or
they may get very soft. They should therefore be
checked regularly and exchanged if necessary!
Do not exert mechanical loads on hoses of refriger-
ated units. Danger of breakage!
Secure hoses with clips!
