56
TK 61651-18-OP-EN

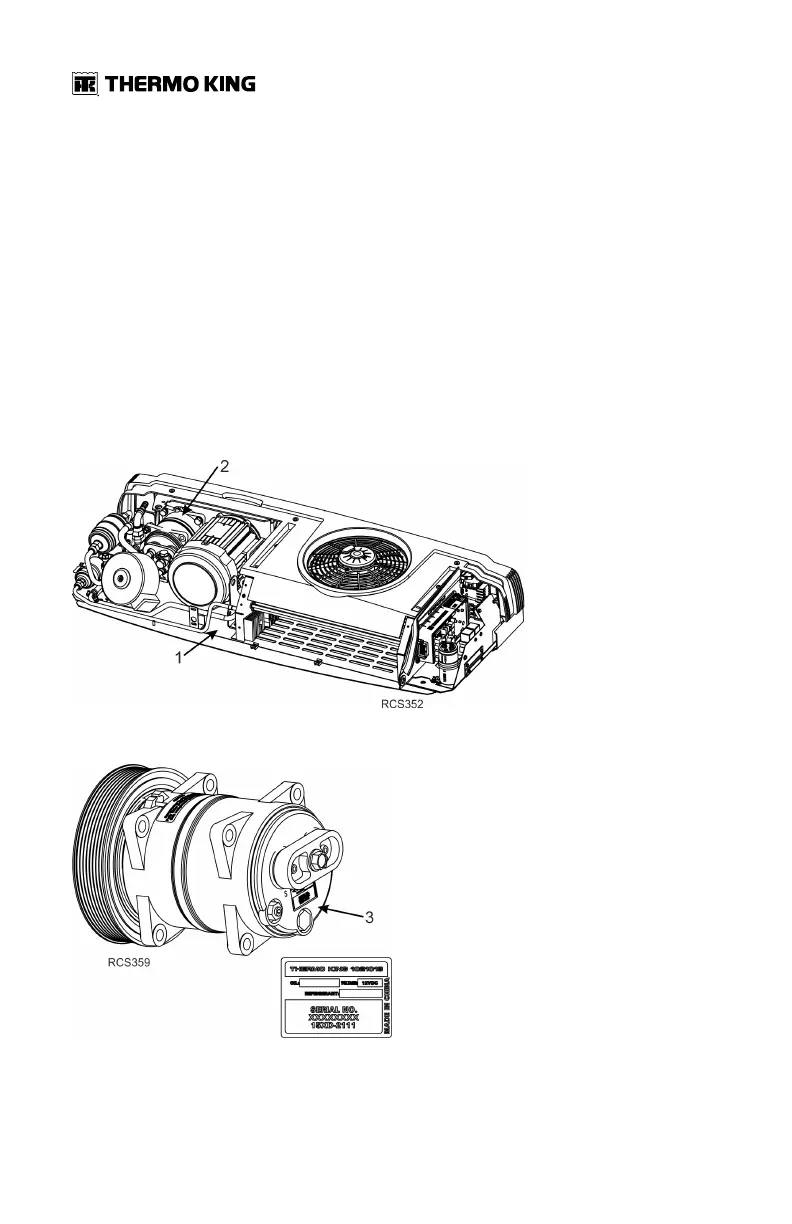

Serial Number Locations
1. CCOONNDDEENNSSEERR:: Nameplate located on the front inside edge of condenser
frame (Cover needs to be removed).
2. SSTTAANNDDBBYY CCOOMMPPRREESSSSOORR:: 20 and 50 Models only. Nameplate located
on standby compressor body. Standby compressor is located inside the
Condenser.
3. EENNGGIINNEE DDRRIIVVEENN CCOOMMPPRREESSSSOORR:: Nameplate located on compressor
body. Engine driven compressor is located in the vehicle’s engine
compartment.
Figure 12. Condenser and Standby Compressor Serial Number Locations
Figure 13. Engine Driven Compressor Serial Number Location
