Thermo King T- series Manual

Operating Instructions
30
Operating Instructions
Unit Operating Instructions
Premium HMI Controller
The Premium Truck HMI (Human/Machine Interface) Control
Panel is available as an option on TSR-3 Truck applications. It
is used to operate the unit, display unit information and access
all TSR-3 Maintenance and Guarded Access Menus. The
Premium HMI Control Panel communicates with the base
controller via the CAN (Controller Area Network) bus. It is
connected to the base controller via CAN Connector J14 on the
interface board. The Premium HMI Control Panel is typically
located in the vehicle driver's compartment. It may be installed
in the truck instrument panel using a DIN mounting ring or
under the instrument panel using an under dash mounting kit.

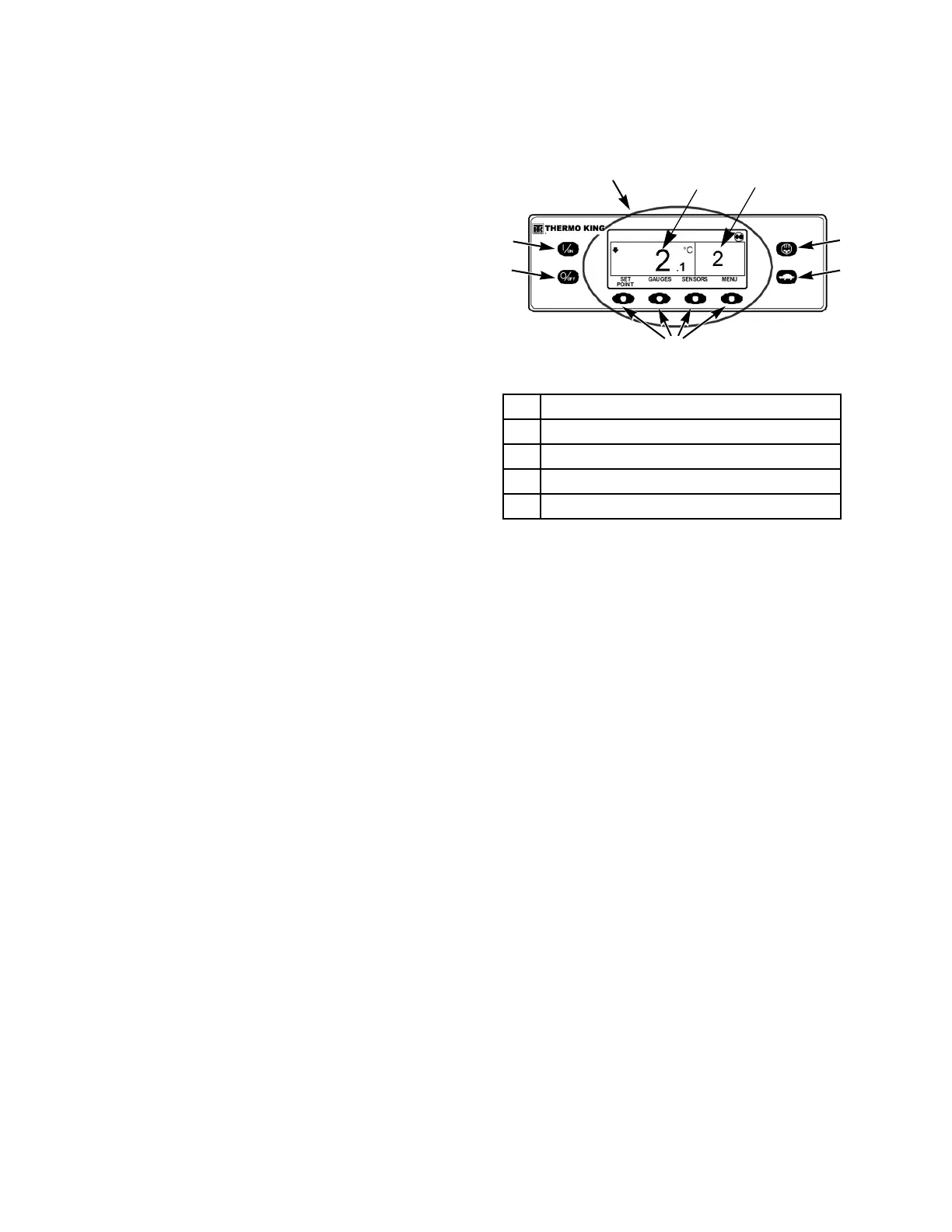

Premium HMI Control Panel Display
Hard Keys
1.
On Key
2.
Off Key
3.
Defrost
4.
High Speed Lockout
1
2
8
3
4
5
7
6

Thermo King T- series Specifications

General

Refrigerant	R-404A
Voltage	12V/24V DC
Defrost	Electric or Hot Gas
Model	T-series
Cooling Capacity	Varies by model
Power Source	Diesel Engine or Electric
Temperature Range	-29°C to 24°C
Control System	Microprocessor-based
Fuel Tank Capacity	Varies by model
Dimensions	Varies by model
Weight	Varies by model
