17

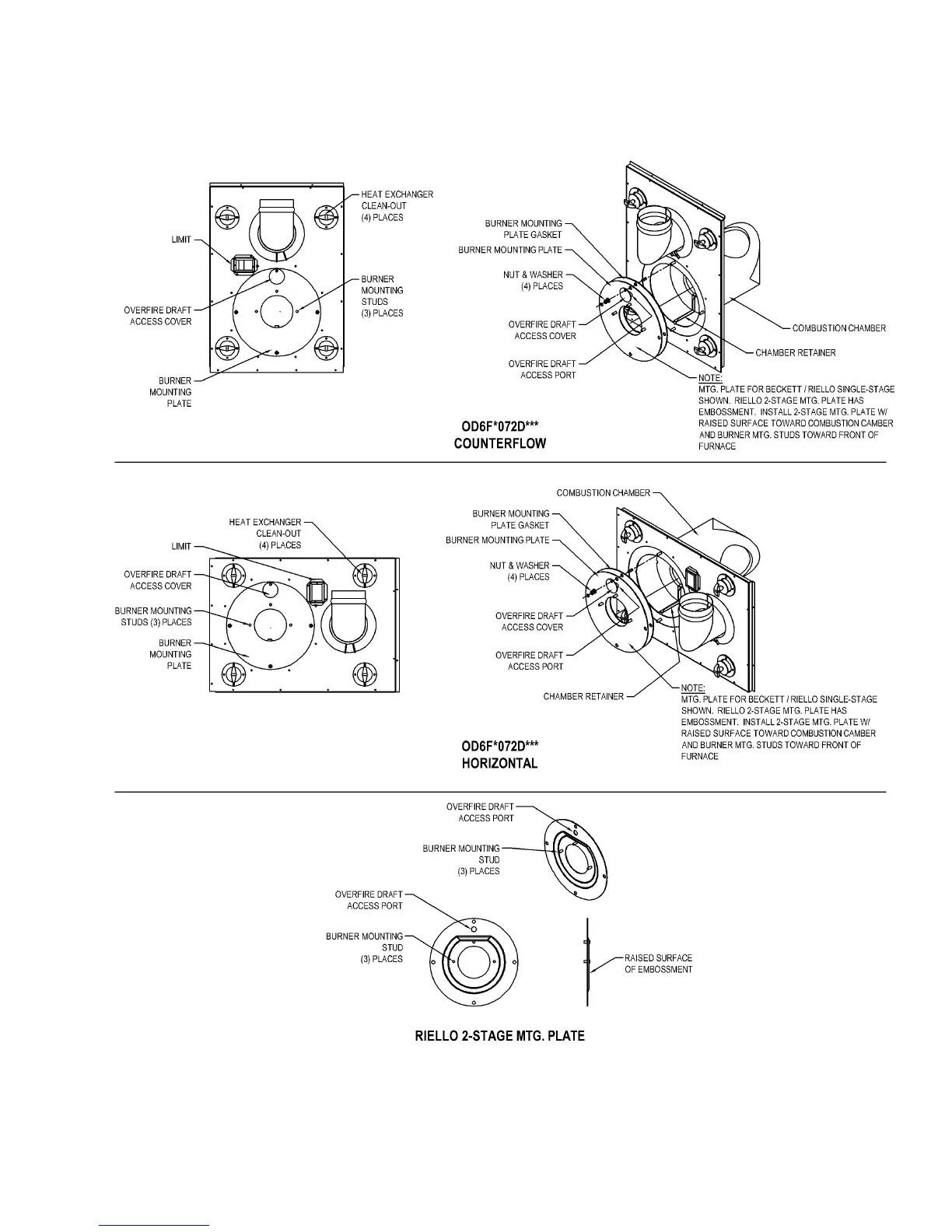

Fig. 12-1: Typical location of the overfire air tap and components in burner mounting plate area for OD6F*072D***
counterflow and horizontal installations
