Thermo Scientific DSP2 User Manual

5
Preliminary Inspection
Equipment
Model DSP 2 metal detector consists of four (4) major components:
1) Search Head
The Search Head, which contains the inspection coils, through which the
product to be monitored is passed.
2) Control Unit
The Control Unit, which contains the user interface controls, and main
board electronics.
The Control Unit may be ordered directly mounted to the Search Head or
remotely mounted. In the latter case, the correct length of cable is supplied
with the Search Head.
3) Power Supply
The Power Supply Unit, which houses the power supplies, input/output devices and connection terminal strip.
4) Photo Eye
The Photo Eye. When inspecting discrete products a photo eye is needed to indicate the location of each package.
Preliminary Inspection
Check the contents of crate or crates against the order and/or packing slip. Look specifically for any reject device which might
have been ordered with the equipment. Some reject devices (e.g.: an air-jet solenoid) are quite small and may get discarded with
the packing. Check the equipment for any signs of damage in shipment.
Included with each metal detector are the following;
• Installation and Operation Manual
• Nylon Foot Mount and Nylon Bushings ( 4 of each )
• Metal Test Samples
NOTE:
If there are any signs of external damage to the crate, notify the transport company and do not discard the crate, it may have to
be inspected by an insurance inspector.

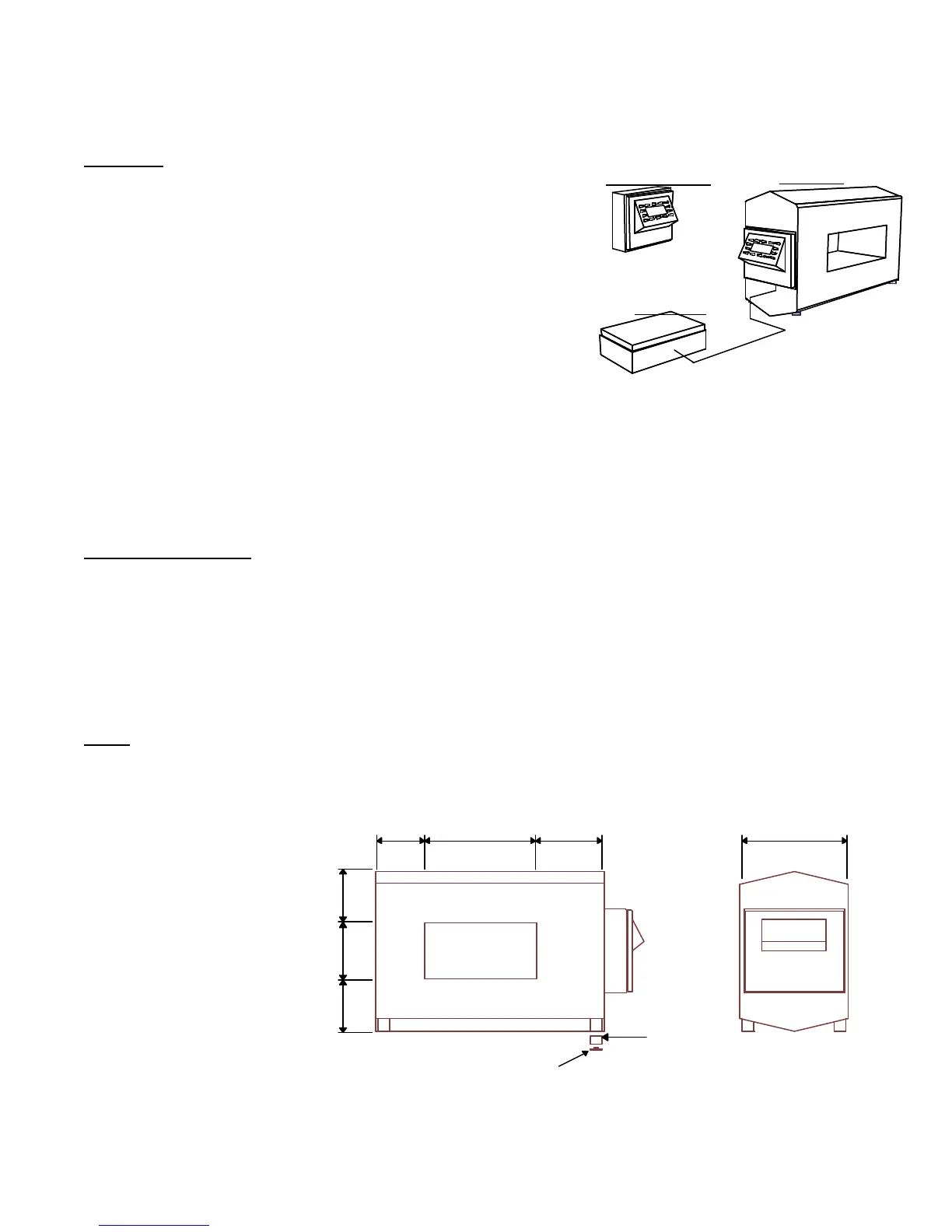

A = Aperture Width
B = Aperture Height
C = Through Dimension
X = Aperture Border
Power Supply
Search Head
Remote Control Box
( Optional )
Figure 1
X + 1/2”
B
X + 1/2”
X
A
X + 2 1/2”
C
Nylon
Bushing
Nylon Foot
Mount
Figure 2
