6. Supplies
6.1 MOST COMMONLY USED PARTS
• Sealing pad SPA43941
• Teon cover, self-adhesive, SPA9000
• Fuse: 2x 20015-26 3.15 A Fuse
6.2 PARTS IDENTIFICATION AND LOCATION OF COMPO-
NENTS BY NAME
thermopatch.com
Power Entry Module
ITEM
#
DESCRIPTION QTY Part Num-
ber
1 Electrical Chassis 1 46326
2 Power Entry Module Assembly (without
fuses)
1 46453
3 Fuse Drawer 1 P/O 46453
4 230 VAC 3.15 AMP Fuses 2 20015-16

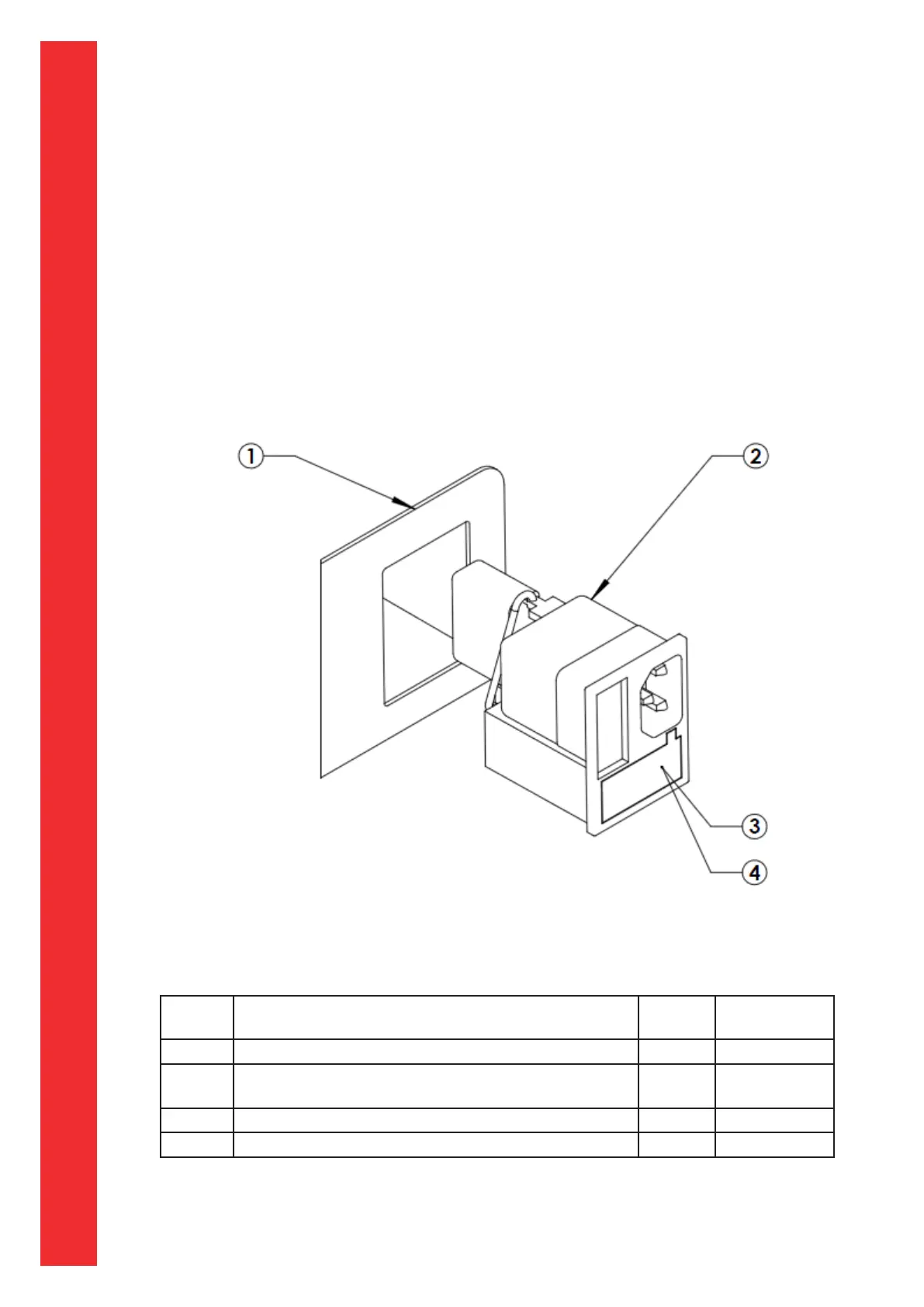

Figure 5 – Power Entry Module
