Heater Element
ITEM
#
DESCRIPTION QTY Part Number
9 ¼ 20unc x 5/8” Socket Hex
Cap Screw
1 21063-05-K
10 M5 Hex Nut 4 21045-07-A
11 M5 Spring Lockwasher 2 21046-06
12 Pivot Block 1 46378
13 Pivot Block Pin 1 46379
14 Heater Unit Assembly 1 SPAHS40000
15 Teon Cover 1 46375
16 Compression Spring 2 24075-36

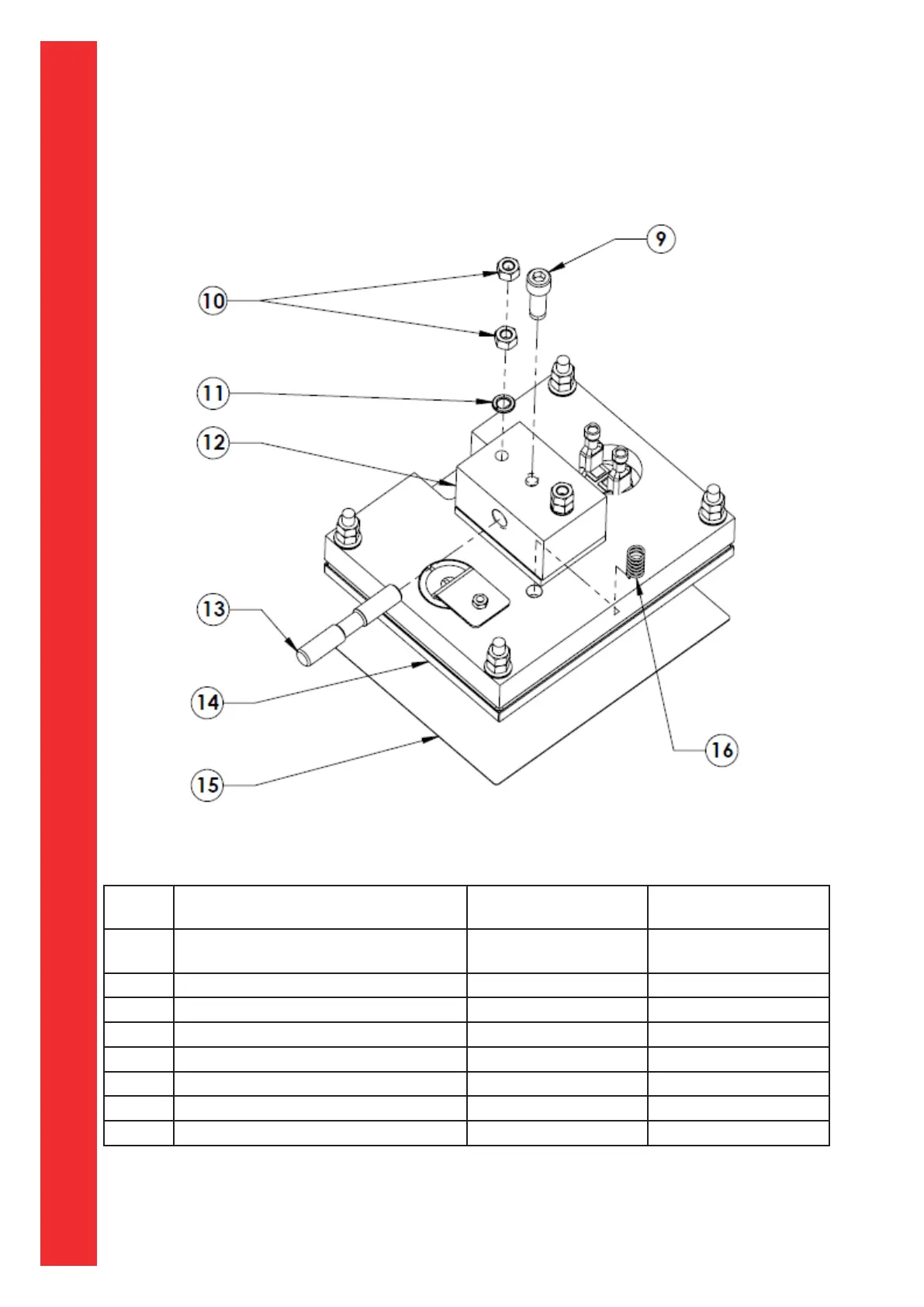

Figure 7 – Heater Element
