Seal Arm Release Mechanism
ITEM
#
DESCRIPTION QTY Part Num-
ber
30 #4-40unc Hex Nut 2 21051-03-
A
31 #4-40 Spring Lockwasher 2 21021-03-C
32 CAM Release Arm Switch 1 20055-62
33 #8-32unc x 3/8” Hex Socket Cap Screw 2 21063-03-
G
34 #8 Spring Lockwasher 2 21021-06-C
35 Cam Arm Switch Bracket 1 47187
36 #10-32unf x 3/16” Set Screw, Socket Hex
Cup Point
1 21011-04-
K
37 Cam Release Lobe 1 46408

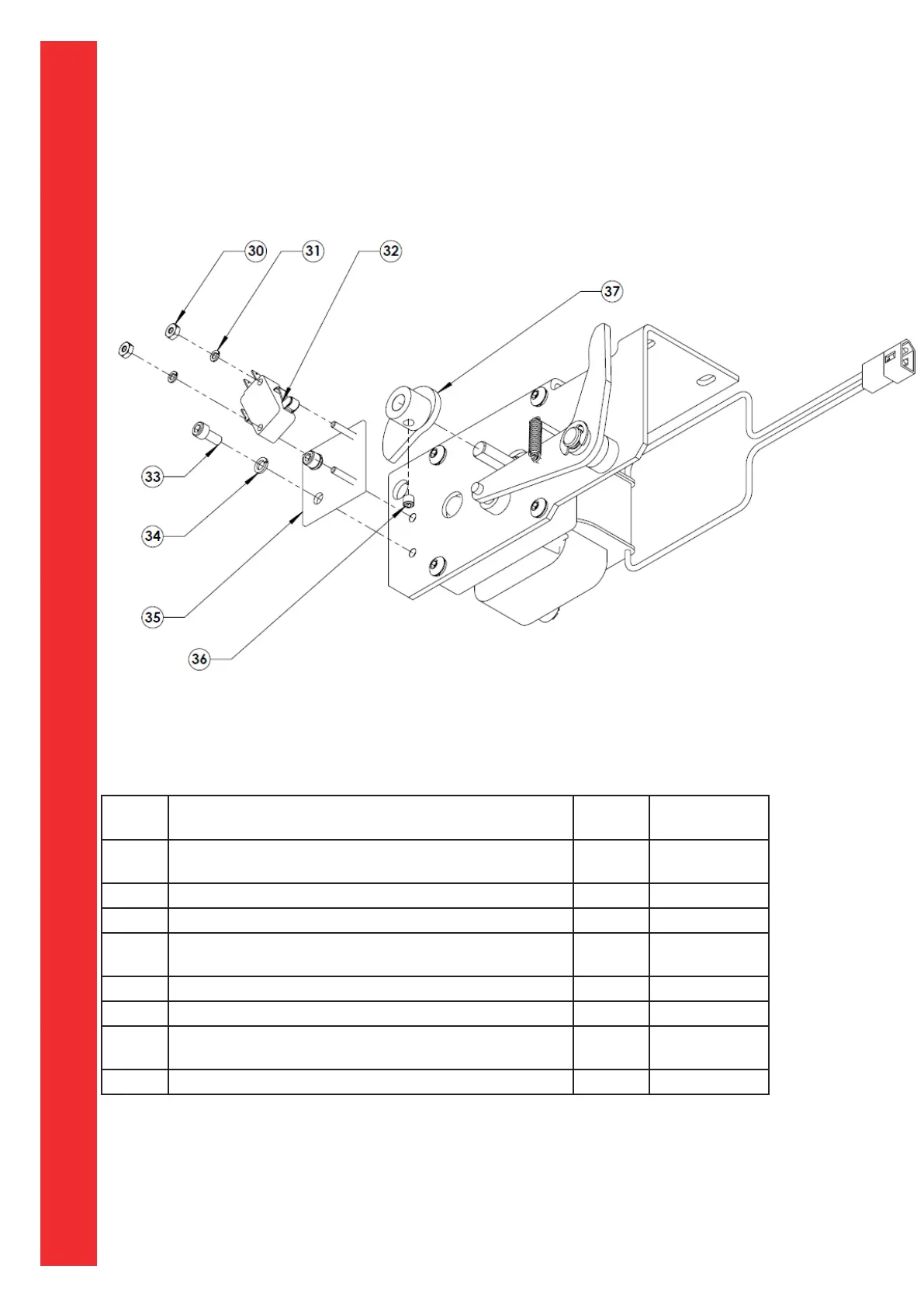

Figure 11 – Seal Arm Release Mechanism
