Manual HS-4-C V.2.1 ENG Original Version QC/TDPT/mn March 2020 19
thermopatch.com
Gas Spring Mounting
ITEM
#
DESCRIPTION QTY Part Num-
ber
22 Top Cover Mounting Plate 1 46312
23 Gas Spring Bracket 1 46374
24 Gas Spring 1 24091-48
25 #10 Flat Washer 1 21023-01
26 #10 Spring Lockwasher 1 21012-07-C
27 #10-32unc x 3/8” Socket Hex Cap Screw 1 21063-03-J
28 Gas Spring Ball Joint 1 24901-77
29 5/16” Spring Lockwasher 1 21021-10-C
29A Retaining Ring 1 D-9706

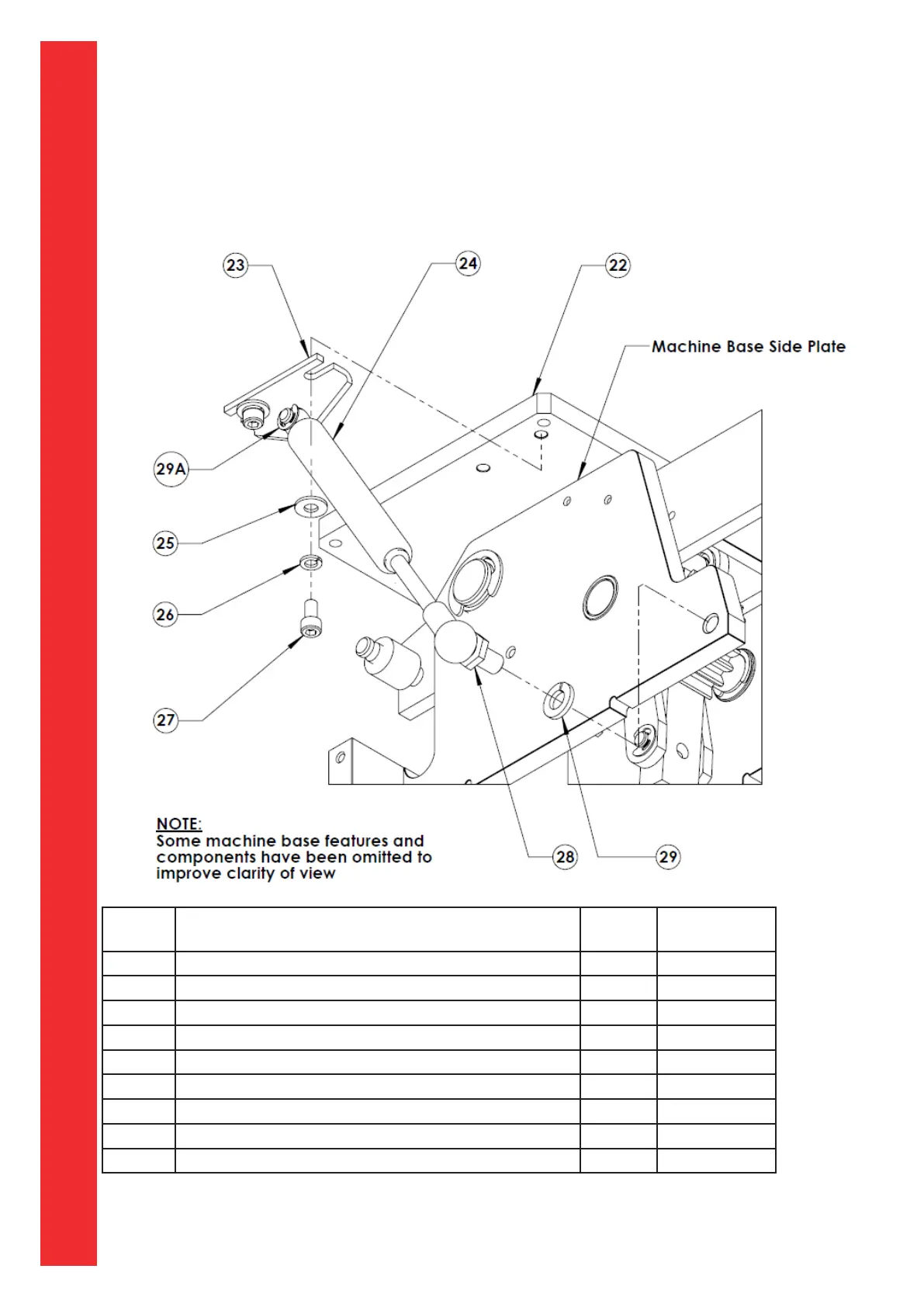

Figure 10 – Gas Spring Mounting
