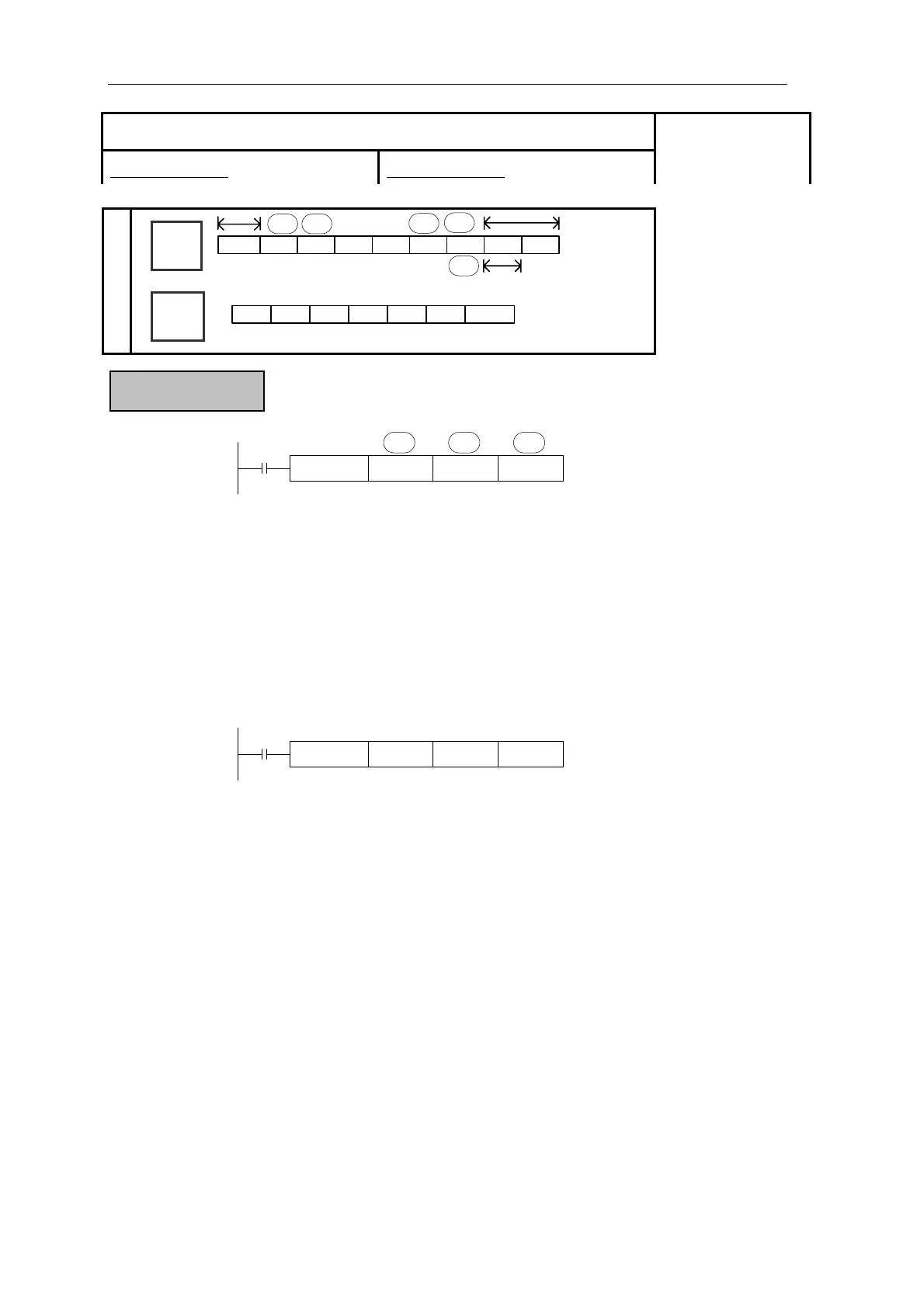

Thinget XC3-24RT-E - Page 192

Applied Instructions
ESUB D10 D20 D50
S1· S2· D·
X0
z The floating point value of S2 is subtracted from the floating point value of S1 and the result
stored in destination device D.
If a constant K or H used as source data, the value is converted to floating point before the
addition operation.
z
ESUB D100K1234 D110
X1
Function & Action
(D11,D10) － (D21,D20) → (D51,D50)
Binary Floating Binary Floating Binary Floating
（K1234） － (D101,D100) → (D111,D110)
Binary converts to Floating Binary Floating Binary Floating
z The same device may be used as a source and as the destination. If this is the case then,
on continuous operation of the EADD instruction, the result of the previous operation
will be used as a new source value and a new result calculated. This will happen every
program scan unless the pulse modifier or an interlock program is used.
[ESUB]
16 bits instruction：- 32 bits instruction：ESUB
Suitable Models：
XC3、XC5
¾
Word
Device
Bit
Device
X
Y
M
S
T
C
Dn.m
D FDDMDX DY DS TD CDK/H
S1·
S2·
S2·
D·
S1·
