Thinget XC3-24RT-E - Connection of Output Terminals

Applied Instructions
220
z Connection of output terminals
Y0
COM0
Y1
COM1
Y2
COM2

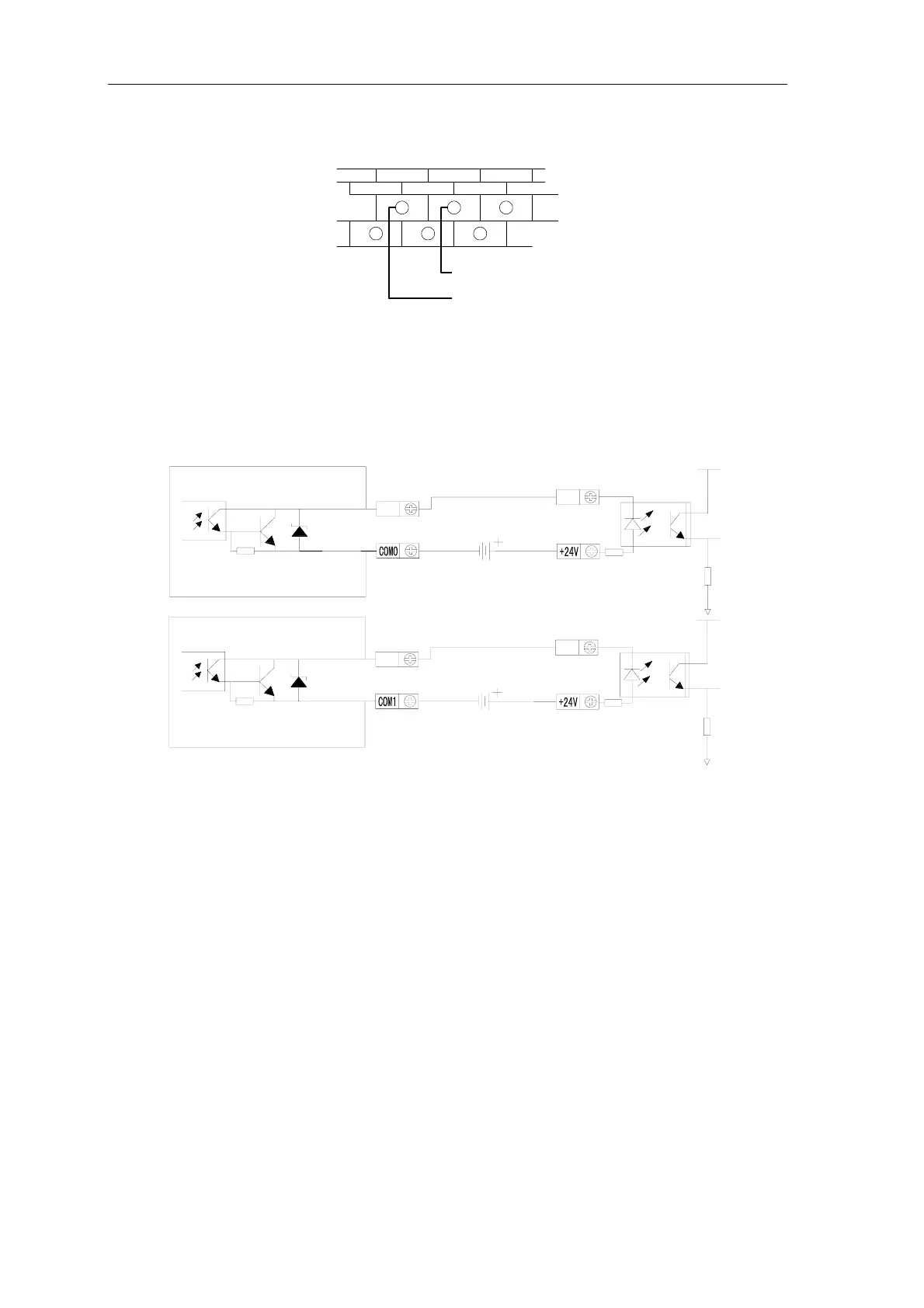

The following graph is connection of output terminals and step motor driver:
Y0
PU
PU
Y1
PLC Side Step Motor Driver Side
Output port Y0: pulse output port 0 (Single Phase)
Output port Y1: pulse output port 1 (Single Phase)
