ThinkPad T60 - 2040 Wireless WAN Antenna Cable (MAIN) or Wireless WAN Blank Cover

2040 Wireless WAN antenna cable (MAIN) or wireless WAN
blank cover
For access, remove these FRUs in order:
v “1010 Battery pack” on page 59
v “1040 Palm rest or palm rest with fingerprint reader” on page 63
v “1060 Keyboard” on page 71
v “1080 PCI Express Mini Card for 802.11 a/b/g wireless LAN” on page 75
v “1100 PCI Express Mini Card for wireless WAN” on page 79
v “1120 Keyboard bezel and wireless WAN antenna cable (AUX)” on page 82
v “1150 LCD assembly” on page 90
v “2010 LCD front bezel” on page 113
v “2020 Inverter card” on page 115
v “2030 Bluetooth daughter card (BDC-2)” on page 116
For 14.1-in. LCD models:

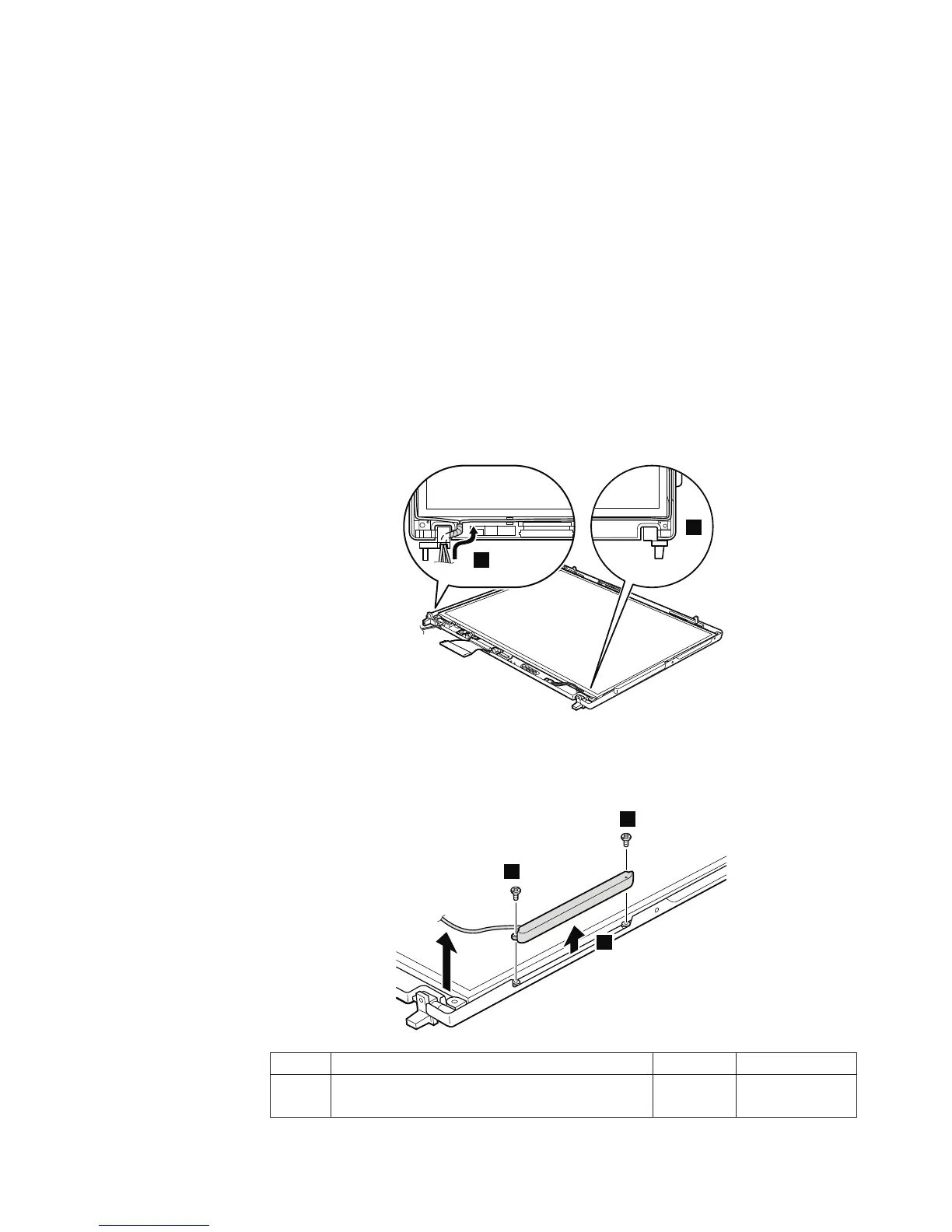

Note: The red cable is the wireless WAN antenna cable (MAIN). The blank cover
of the wireless WAN does not have this cable.
1
1
When installing: When routing the antenna cable, do not tense the cable. To do
so, the cable may get damaged by the hinge, and may cause a
broken wire.
3
2
2
Step Screw (quantity) Color Torque
2 M2 × 2.8 mm, flat-head, nylon-coated (2) Silver 0.118 Nm
(1.2
kgfcm)
Removing and replacing a FRU
ThinkPad T60 and T60p 117
