1150 LCD assembly
For access, remove these FRUs in order:
v “1010 Battery pack” on page 59
v “1040 Palm rest or palm rest with fingerprint reader” on page 63
v “1060 Keyboard” on page 71
v “1080 PCI Express Mini Card for 802.11 a/b/g wireless LAN” on page 75
v “1100 PCI Express Mini Card for wireless WAN” on page 79
v “1120 Keyboard bezel and wireless WAN antenna cable (AUX)” on page 82
1
1

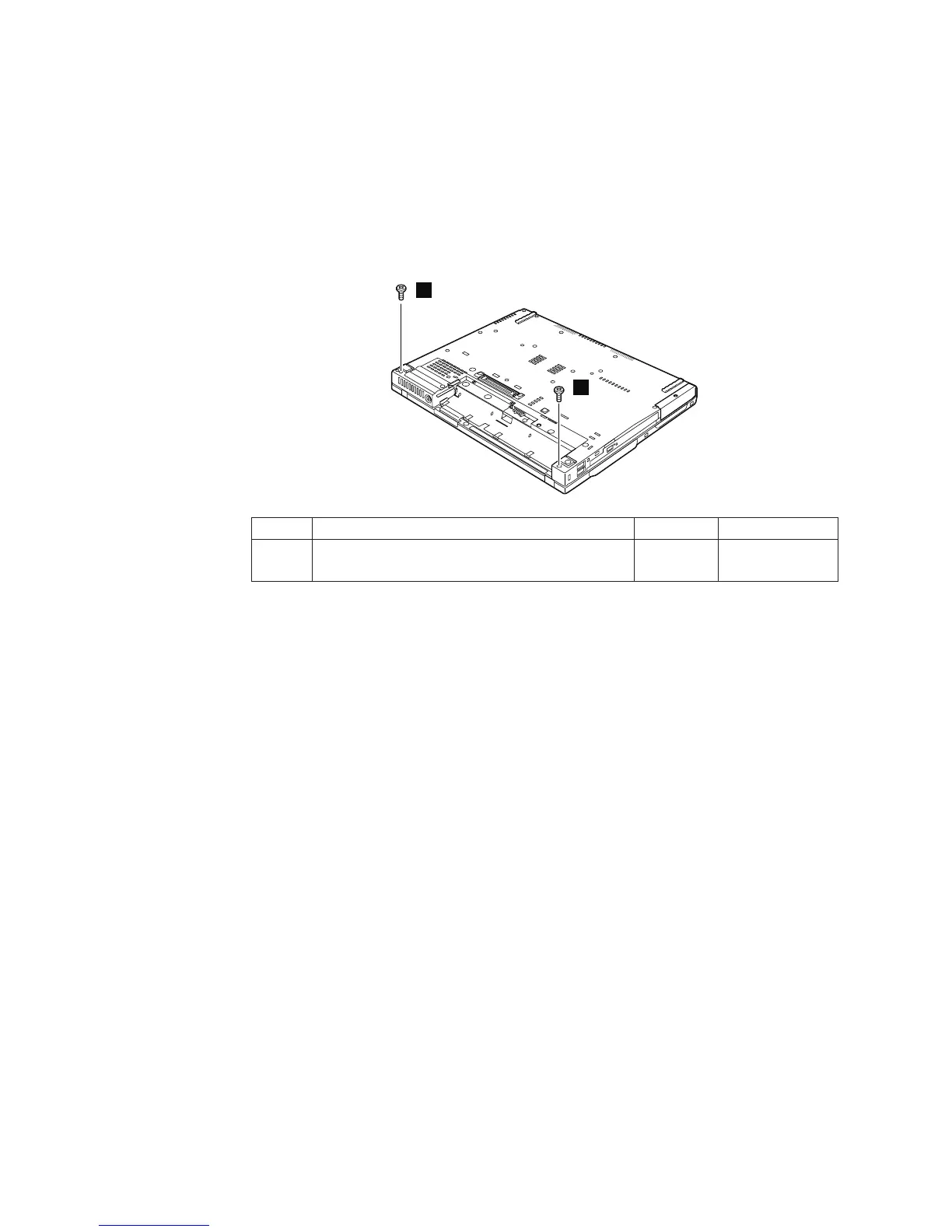

Step Screw (quantity) Color Torque
1 M2 × 9.5 mm, flat-head, nylon-coated (2) Black 0.167 Nm
(1.7 kgfcm)
(continued)
Removing and replacing a FRU
90 MT 1951, 1952, 1953, 1954, 1955, 1956, 2007, 2008, 2009, 2613, 2623, and 2637
