1160 Base cover
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 59
v “1020 Ultrabay Slim device” on page 60
v “1030 Hard disk drive cover, hard disk drive, and hard disk drive rubber rails”
on page 61
v “1040 Palm rest or palm rest with fingerprint reader” on page 63
v “1060 Keyboard” on page 71
v “1070 Modem daughter card (MDC-1.5)” on page 73
v “1080 PCI Express Mini Card for 802.11 a/b/g wireless LAN” on page 75
v “1100 PCI Express Mini Card for wireless WAN” on page 79
v “1120 Keyboard bezel and wireless WAN antenna cable (AUX)” on page 82
v “1130 Fan assembly” on page 85
v “1150 LCD assembly” on page 90

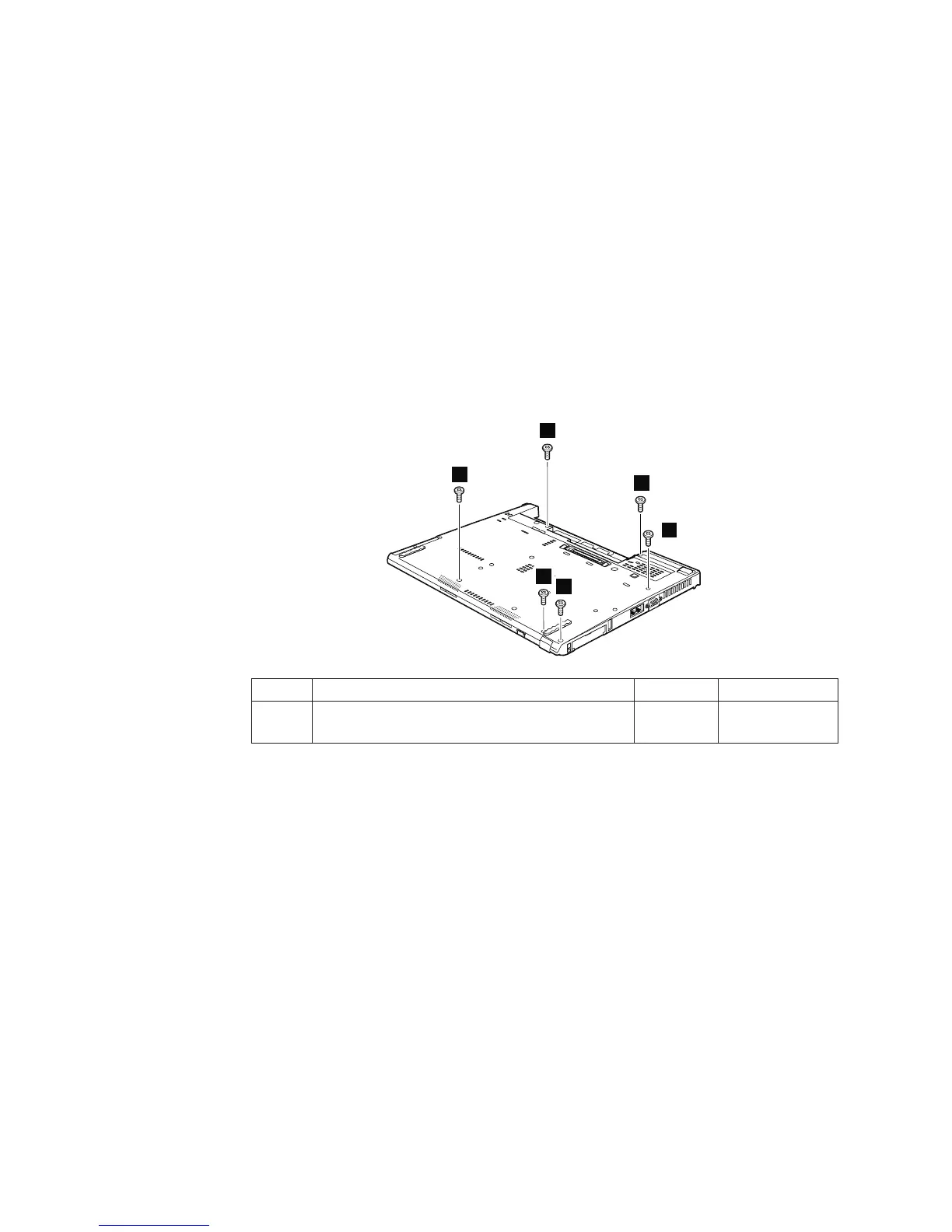

For models with 14.1-in. LCD:
1
1
1
1
1
1
Step Screw (quantity) Color Torque
1 M2 × 5 mm, flat-head, nylon-coated (6) Black 0.167 Nm
(1.7 kgfcm)
(continued)
Removing and replacing a FRU
94 MT 1951, 1952, 1953, 1954, 1955, 1956, 2007, 2008, 2009, 2613, 2623, and 2637
