ThinkPad T60 - Page 71

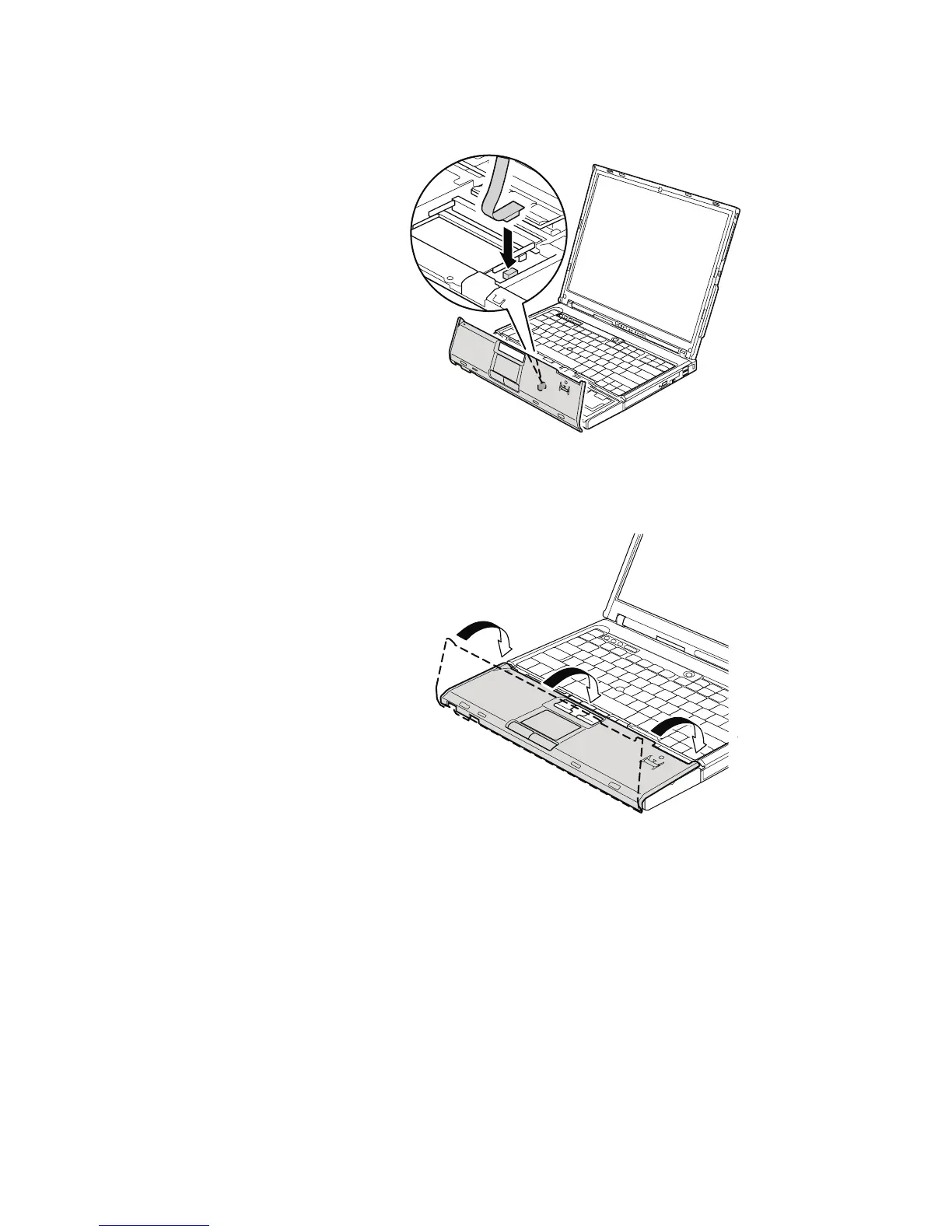

When installing: When you attach the palm rest, do as follows:
1. Attach the fingerprint reader connector firmly to the system board.
2. 14.1-in. LCD models:
a. Align the front side of the palm rest and the frame first; then place the palm
rest as shown in this figure.
(continued)
Removing and replacing a FRU
ThinkPad T60 and T60p 65
