THM Clavicula M3 - Bottom Bracket Dismantling (Press-fit;EVO386;BBright Direct Fit)

27
Clavicula M³
Maintenance

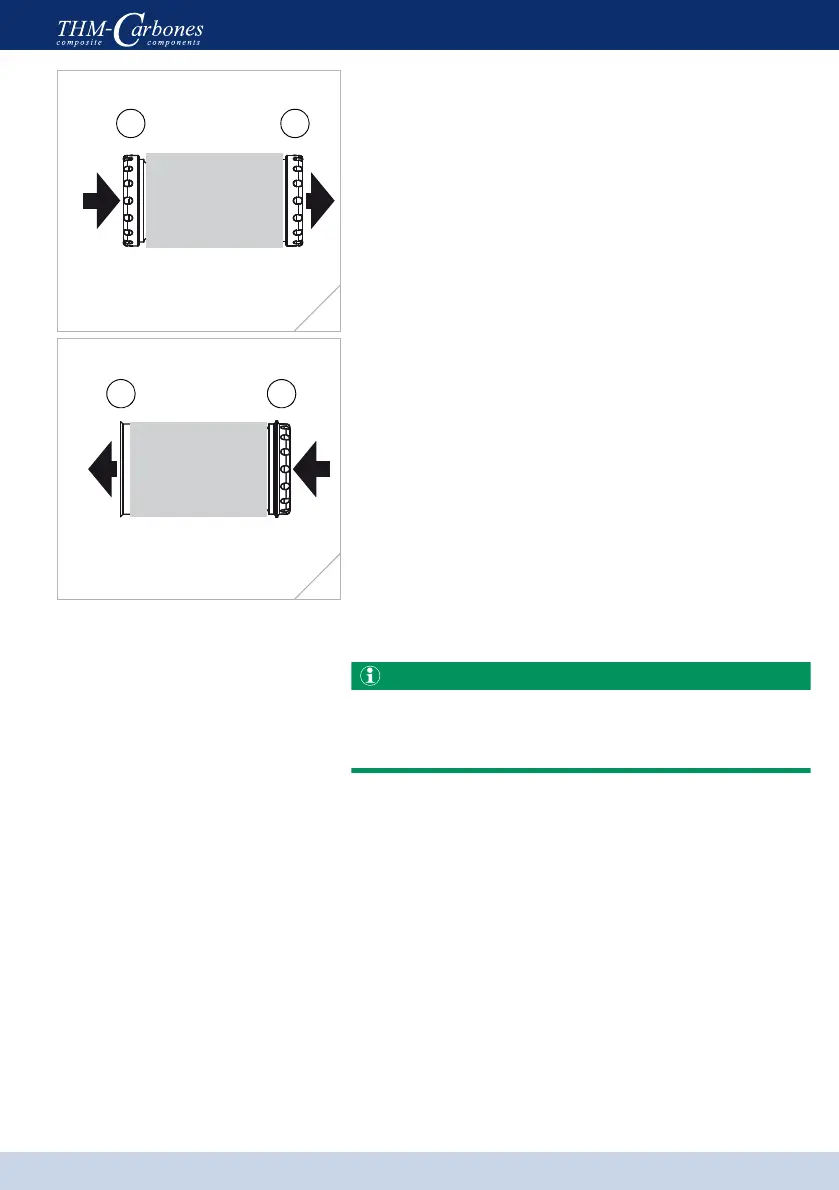

 Use a rubber mallet to carefully tap the bearing
cup(2) or (3) until the bearing cup(1) or (4) is freed
from the bottom bracket housing.
(fig. 6, 7)
 Now twist the bearing cups apart by hand and re-
move these from the bottom bracket housing.
Press-fit/EVO386/BBright™ Direct Fit
Remove the Press-fit / EVO386 / BBright™ Direct Fit
bottom bracket by using a suitable extraction tool
(e.g. Shimano
®
TL-BB13).
2 1
6
34
7
