9 Plug and connection assignment
This chapter will help you select the right cables and plugs to connect your valuable
equipment in such a way that a perfect sound experience is ensured.
Please note these advices, because especially in ‘Sound & Light’ caution is indicated:
Even if a plug ts into the socket, an incorrect connection may result in a destroyed
power amp, a short circuit or ‘just’ in poor transmission quality!
1 Signal (left)
2 Signal (right)
3 Ground, shielding
1 Ground, shielding
2 Signal (in phase, +)
3 Signal (out of phase, –)
4 Shielding on plug housing (option)

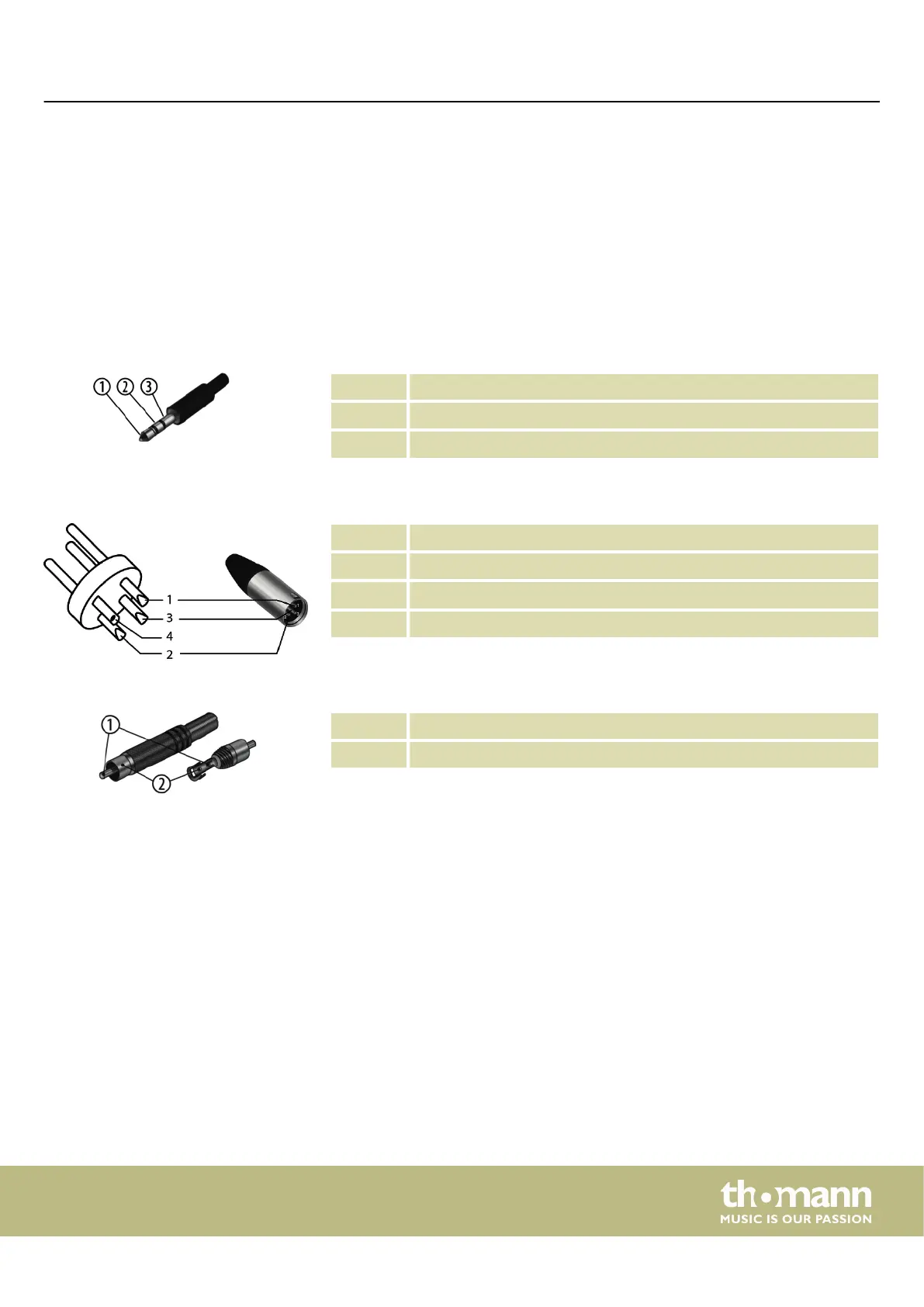

Drawing and table indicate the pin assignment of an RCA plug.
1 Signal
2 Ground, shielding
Introduction
Three-pole 1/8" mini phone jack
(stereo, unbalanced)
XLR plug (balanced)
RCA connection
Plug and connection assignment
MP2
33
