Thomas 153 Repair Manual

1
1-34
CONTROL VALVE 1.3
Disassembly / Repair 1300/135
(con’t)

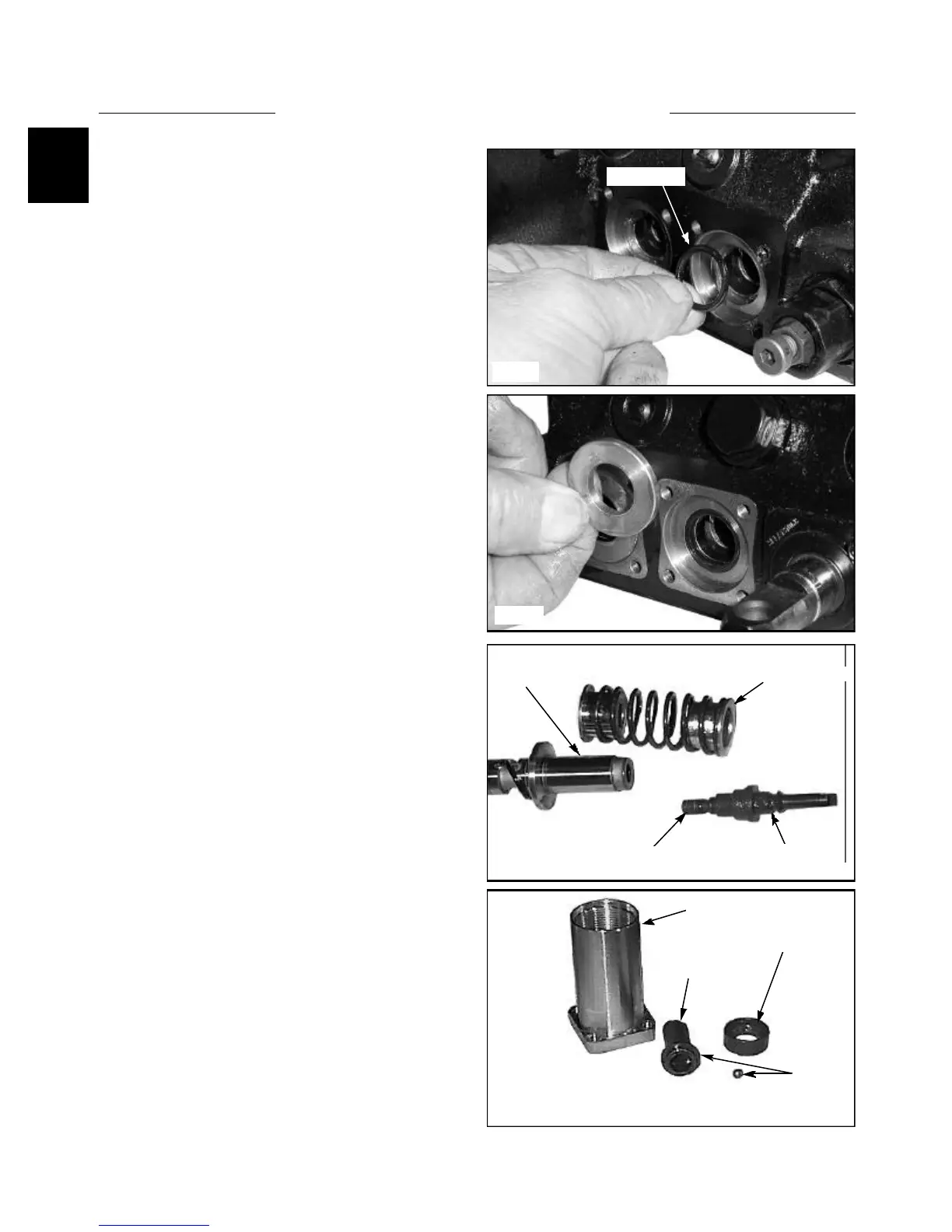

7 When replacing the spool to the control valve, use
new O-ring seals and apply oil to the O-rings and spools.
(fig. C3718).
8 Fit the seal washer to the control valve with the
beveled side of the washer facing the control valve. (fig.
C3719) Fit the spool to the control valve now if repairs
are not needed to the detent or spring return mechanism.
Use oil to lubricate the spool before inserting to the
control valve.
19 Place the cable end of the spool in a vice, or insert a
screw driver through the clevis pin holes, to keep it from
turning. The detent is threaded to the spool and can be
removed for inspection or repairs.(fig. C2238, C2242)
Replace broken springs, worn detents and / or damaged
detent balls with a new detent kit.
Apply Loctite 542 to the threads of the detent when
installing to the spool.
Apply Castrol “Spheerol” TN grease to the inside of the
spring cover.
C3718
Spool O-Ring
C3719
C2238
Spool spring and bushing
Apply Loctite 542
Detent
Detent
C2242
Center return cover
Detent ball carrier
Tapered cup
Detent
balls
