Thomas 153 Repair Manual

1
1-35
CONTROL VALVE 1.3
Disassembly / Repair 1300/135
(con’t)
10 When installing the detent to the control valve spool,
apply Loctite type 542 to the threads. Tighten the detent
to the spool at 17.7 ft lbs (24 Nm). (fig. C2254)
11 Install the spring return / centering cover and tighten
the mounting screws evenly to 4.9 ft lbs (6.6 Nm). Install
the end cap to the cover and tighten to 7.2 ft lbs (9.8 Nm)
(fig. C2258).

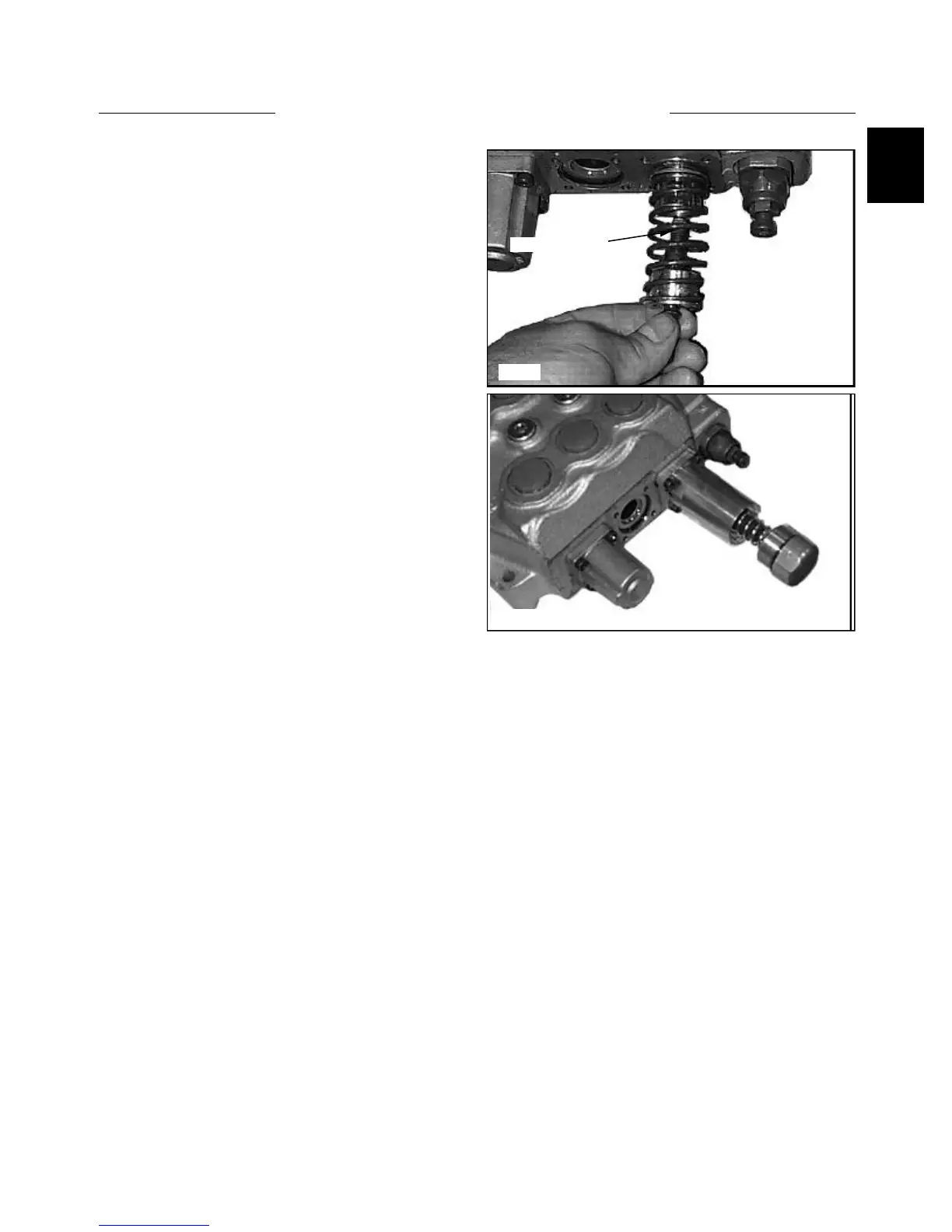

C2254
Apply Loctite 542
C2258
Detent spring and cap
