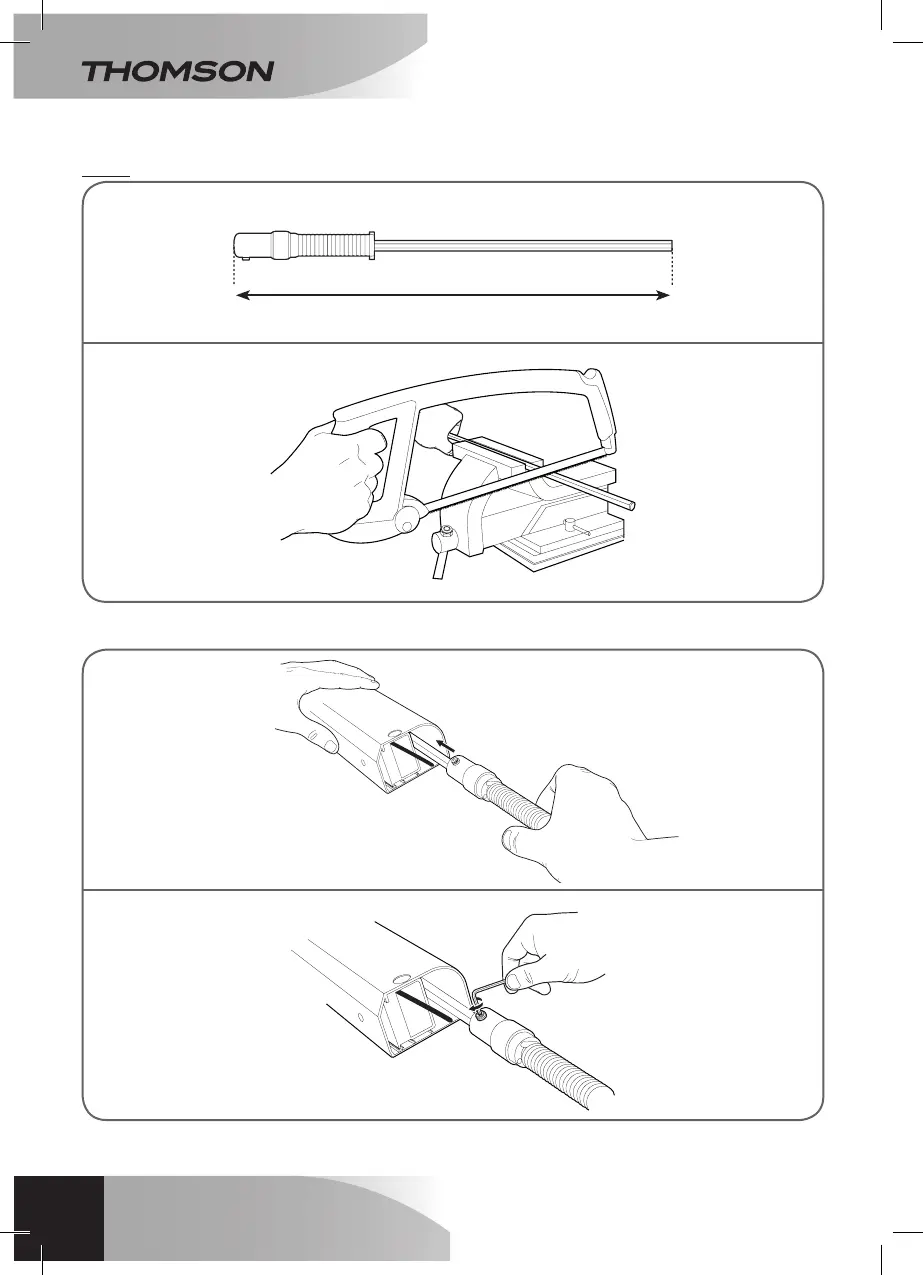

Step 2
Cutanddeburrthetransmissionaxis[1]atdimensionD.
EN
10
D - INSTALLATION
MOTORISED KIT WITH ARTICULATED ARMS
FOR SINGLE OR DOUBLE LEAF SHUTTERS
distance D = lenght of lintel - 620mm
D
view from below
