Chapter 1: Connections and Setup
Illustrations contained in this document are for representation only.
5

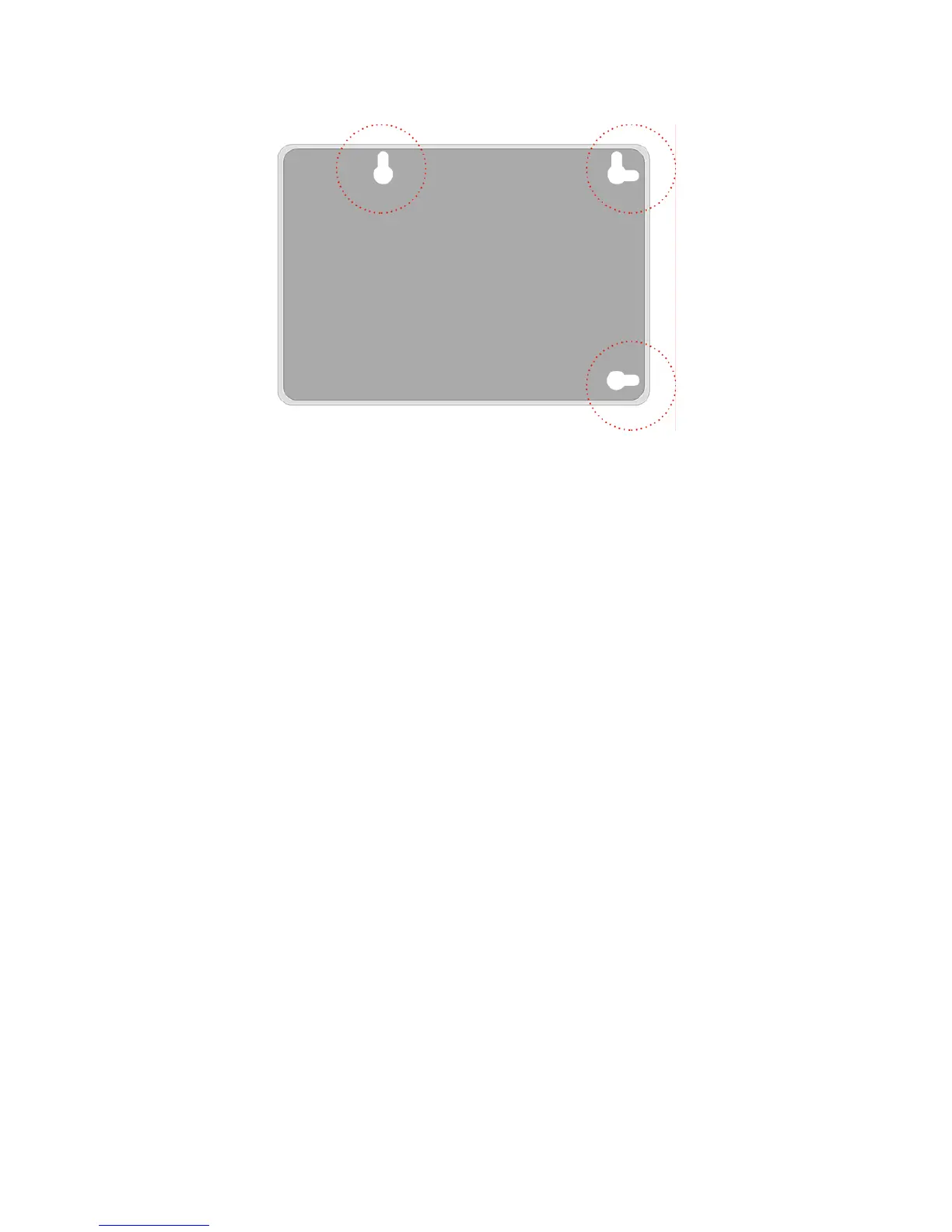

Note: When wall mounting the unit, ensure that it is within reach of the power outlet. You will
need 3 screws (4.4mm) to wall mount the unit. To do this:
1. Ensure that the wall you use is smooth, flat, dry and sturdy and use the 3 screw holes which
both are 101.6mm apart.
2. Fix the screws into the wall, leaving their heads 3 mm (0.12 in.) clear of the wall surface.
3. Remove any connections to the unit and locate it over the screw heads. When in line, gently
push the unit on to the wall and move it downwards to secure.
4. Wall mounting orientation: LED panel upper.
