22 CONNECTIONS
Connections

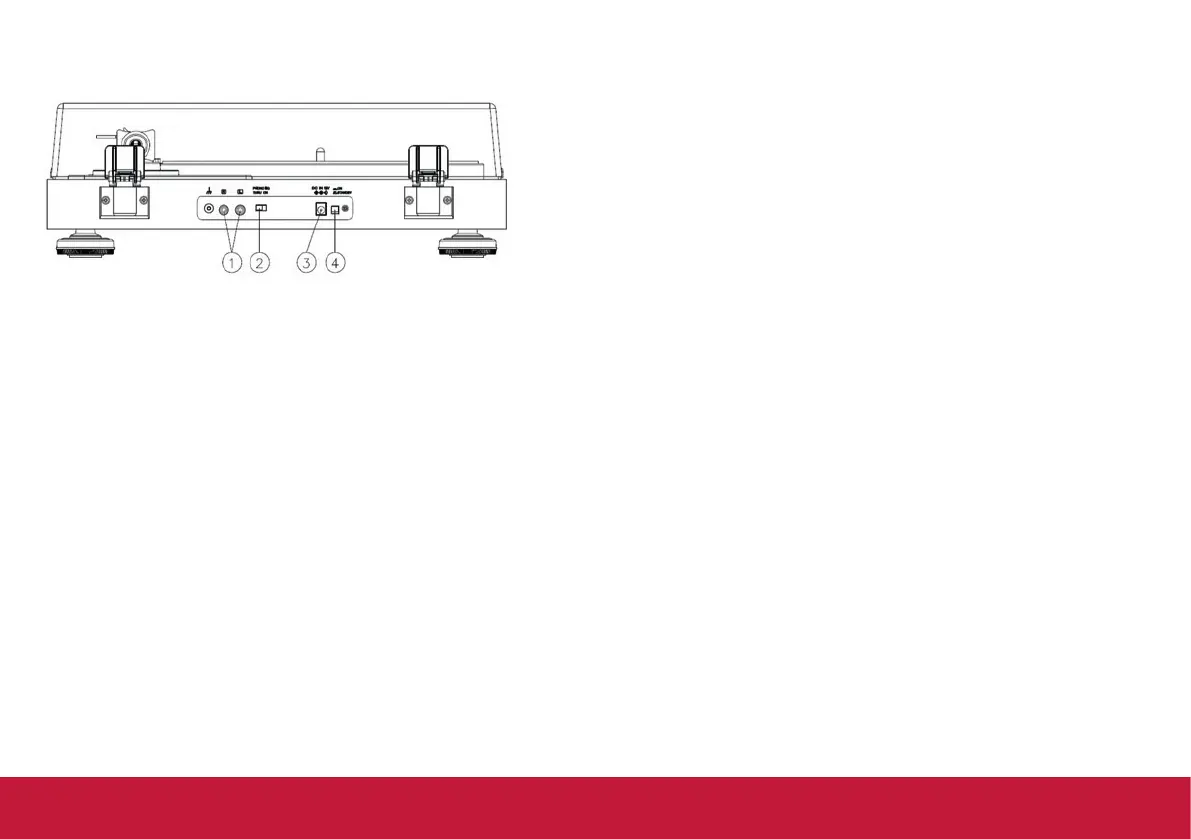

01. Analog audio output connectors (L/R)
These output analog audio signals.
The PHONO EQ switch setting changes the type of output signal.
Use the included audio cable (or commercially-available ones) to connect other equipment to the output
connectors of this unit.
02. PHONO EQ (audio output setting) switch ON
Signals that have been amplified by the built-in equalizer amp are output from the analog audio output
connectors (L/R).
THRU
The VM cartridge signal is output directly through the analog audio output connectors (L/R). Use this
when connecting to equipment that has PHONO inputs. When shipped new from the factory, this is set
to ON.
ATTENTION
When set to ON, if connected to the PHONO inputs of an amplifier, for example, the output from speak-
ers and headphones will be very loud, which could damage equipment or harm hearing.
