THORENS TD 146 User Manual

I. Unpacking

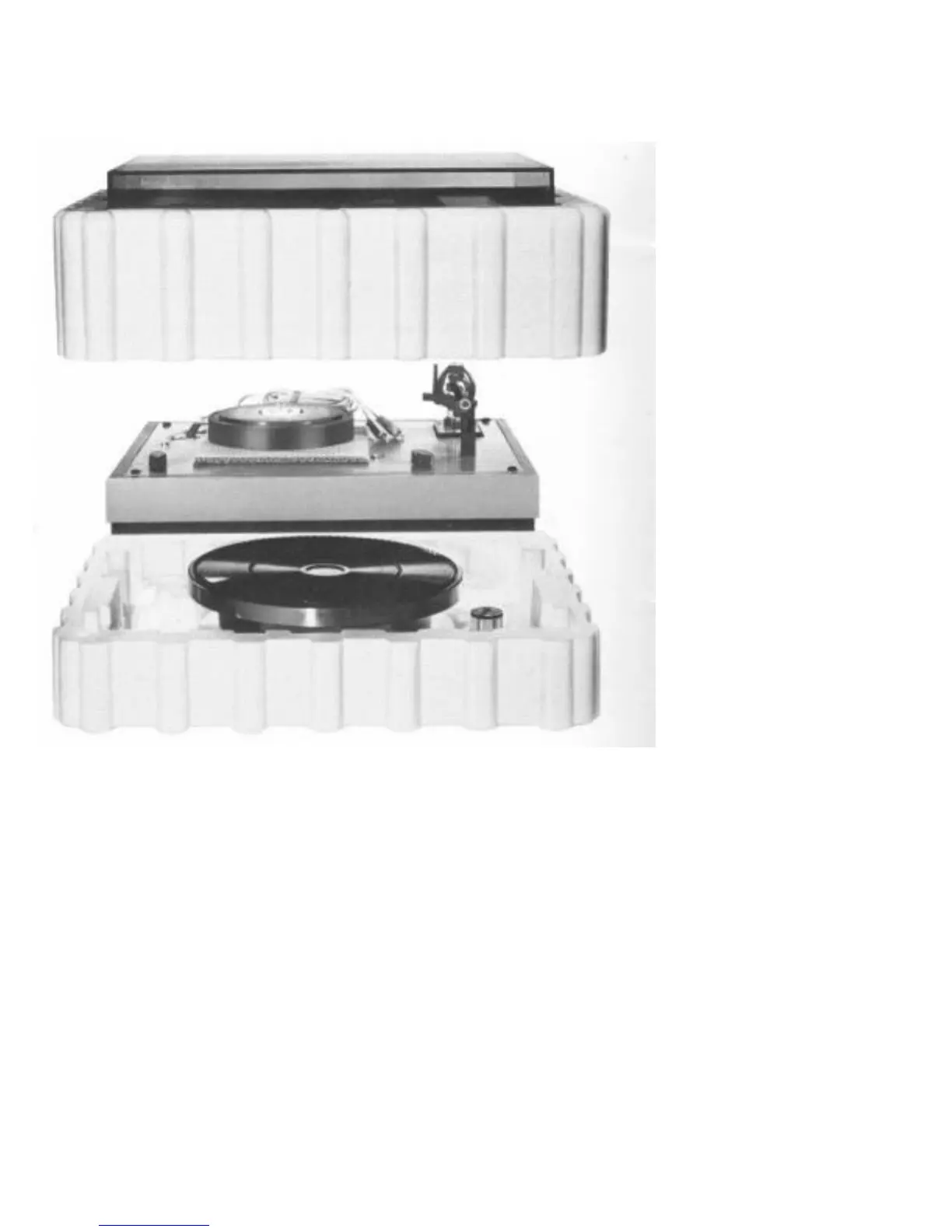

Figure 2
The arrangement of the
packed turntable is shown
in Figure 2. The upper
styrofoam packing may
easily be removed by
grasping the opening on
either side and lifting
straight up.
The turntable can now be
taken out of the lower
styrofoam packing.
Do not use the tone arm
assembly as a handle!
The top styrofoam
packing enclosure (Figure
3) contains the dust cover
and the following
turntable components:
● a hinged storage
case containing the
TP 63 cartridge
wand (5) with all
accessoriess
including (if
delivered with the
turntable) the

THORENS TD 146 Specifications

General

Drive System	Belt drive
Speeds	33 1/3, 45 RPM
Platter	Aluminum die-cast
Tonearm	TP 16
Automatic Function	Semi-automatic
Effective length	230 mm
Effective mass	16.5 g
Overhang	15 mm
Wow and flutter	0.05%
Motor	16-pole synchronous motor
