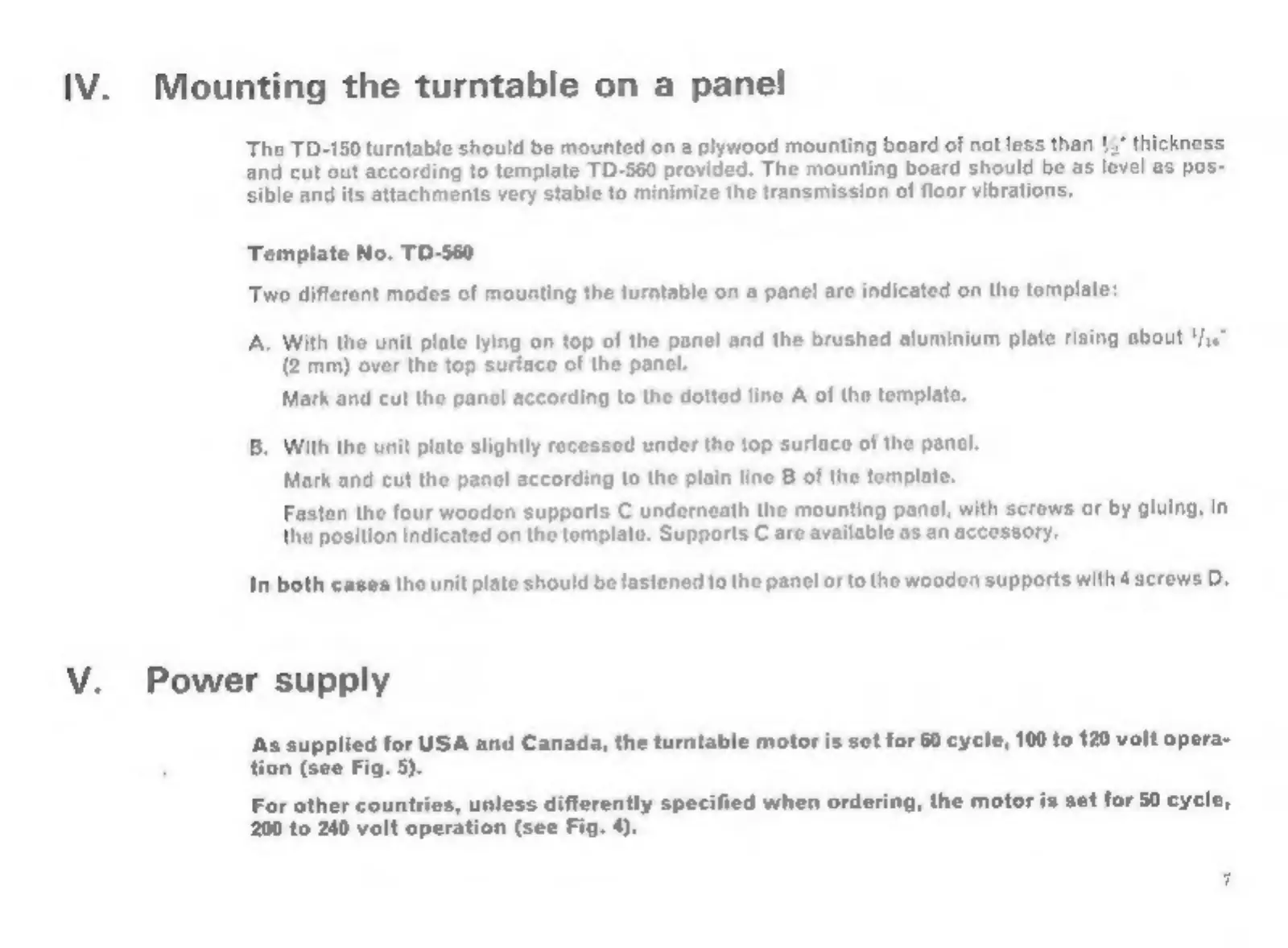

IV.
Mounting
the
turntable
on
a
panel
‘The
TD-150
turntable
should
be
mounted
on
a
plywood
mounting
board
of
not
less
than
1"
thickness
and
cut
out
according
to
template
TD-560
provided.
The
mounting
board
should
be
as
level
as
pos-
sible
and
its
attachments
very
stable
to
minimize
the
transmission
of
floor
vibrations.
‘Template No. TD-560
‘Two
different
modes
of
mounting
the
turntable
on
a
panel
are
indicated
on
the
template:
‘A.
With
the
unit
plate
lying
on
top
of
the
panel
and
the
brushed
aluminium
plate
rising
about
"i."
(2
mm)
over
the
top
surface
of
the
panel,
Mark
and
cut
the
panel
according
to
the
dotted
line
A
of
the
template,
With
the
unit
plate
slightly
recessed
under
the
top
surface
of
the
panel.
Mark
and
cut
the
panel
according
to
the
plain
line
B
of
the
template,
Fasten
the
four
wooden
supports
C
underneath
the
mounting
panel,
with
screws
or
by
gluing,
in
the
position
indicated
on
the
template.
Supports
C
are
available
as
an
accessory,
In
both
cases
the
unit
plate
should
be
fastened
to
the
panel
or
to
the
wooden
supports
with
4
screws
D.
V.
Power
supply
As
supplied
for
USA
and
Canada,
the
turntable
motor
is
set
for
60
cycle,
100
to
120
volt
opera
tion
(see
Fig.
5).
For other countries, unless differently specified when order
200 to 240 volt operation (see Fig. 4).
ing, the motor is set for 50 cycle,
