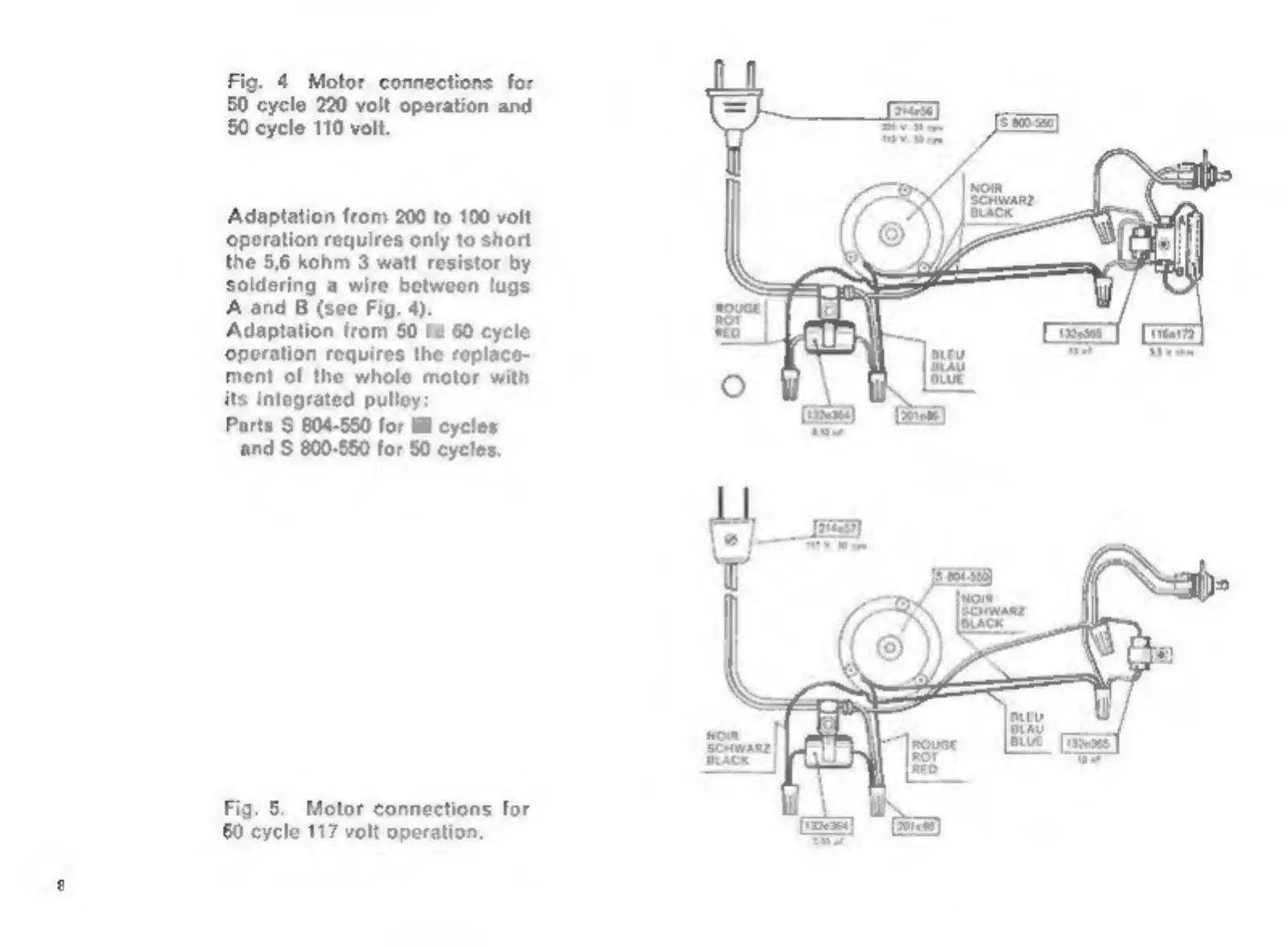

Fig. 4 Motor connections for
150 cycle 220 volt operation and
50 cycle 110 volt.
‘operation requires only to short
the
5,6
kohm
3
watt
resistor
by
soldering a wire between lugs
A and B (see Fig. 4).
‘Adaptation from 50 to 60 cycle
‘operation requires the replace-
ment of the whole motor with
its integrated pulley:
Parts S 804-550 for 60 cycles
and $ 800-550 for 50 cycles.
Fig. 5. Motor connections for
60 cycle 117 volt operation.
