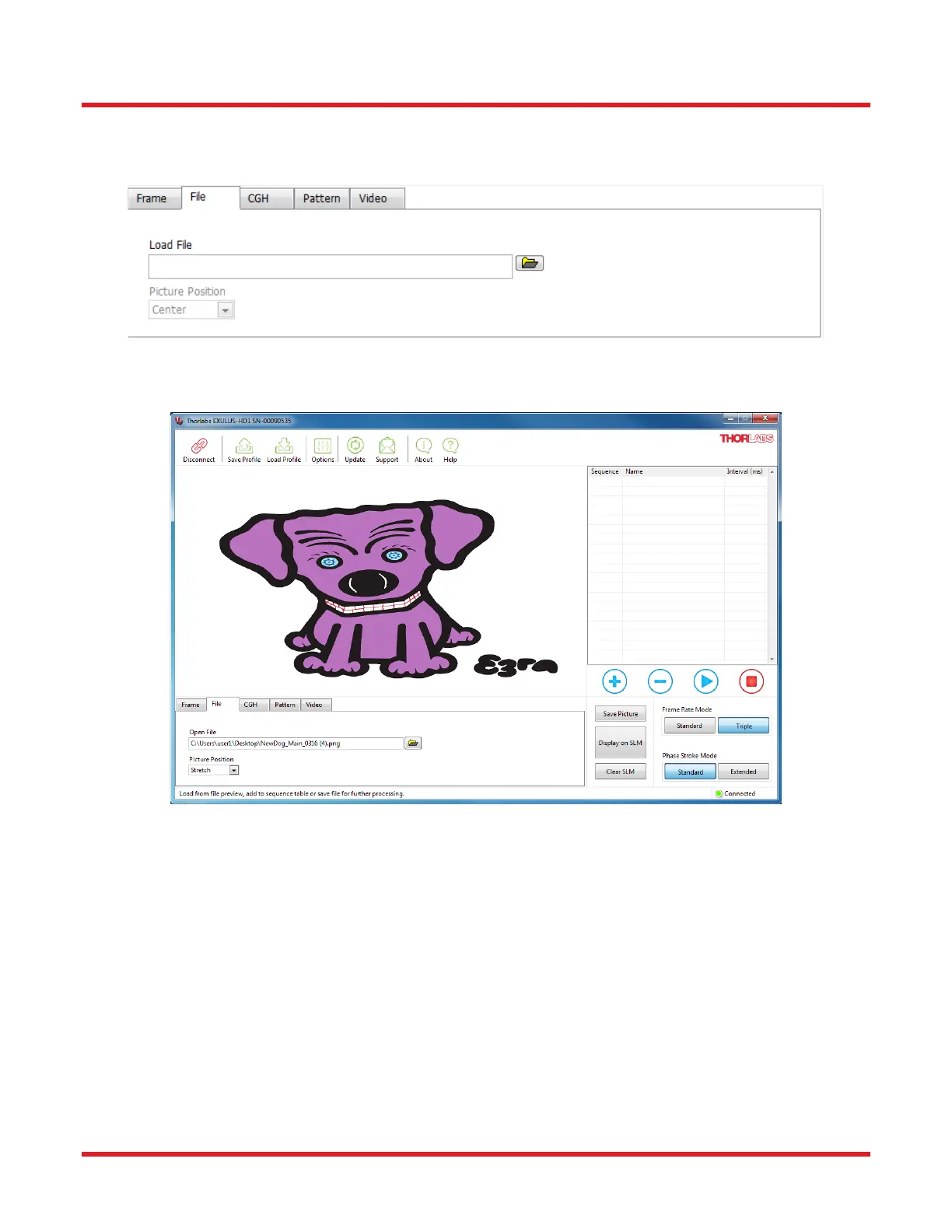

EXULUS-HD1 & EXULUS-4K1 Spatial Light Modulators Chapter 5: Software Operation
Rev I, October 18, 2022 Page 27
File mode
The file mode provides the upload of user defined pattern in common image format (PNG, jpeg, bmp).
The bit depth of the uploaded image is converted automatically to 8-bit gray scale when standard frame rate mode
is selected, shown as below. The file position of the preview window can be selected as well.
Figure 23 Uploaded PNG file in stretch position, based on triple frame rate
