EXULUS-HD1 & EXULUS-4K1 Spatial Light Modulators Chapter 5: Software Operation
Rev I, October 18, 2022 Page 31
Note that for EXULUS-4K1(/M), video mode might not operate properly under Windows 7 environment. For proper
video operation with EXULUS-4K1(/M), it is recommended to use Windows 10.
5.3.5. Sequence Setting
The Sequence Setting area consists of a table list and four control buttons.

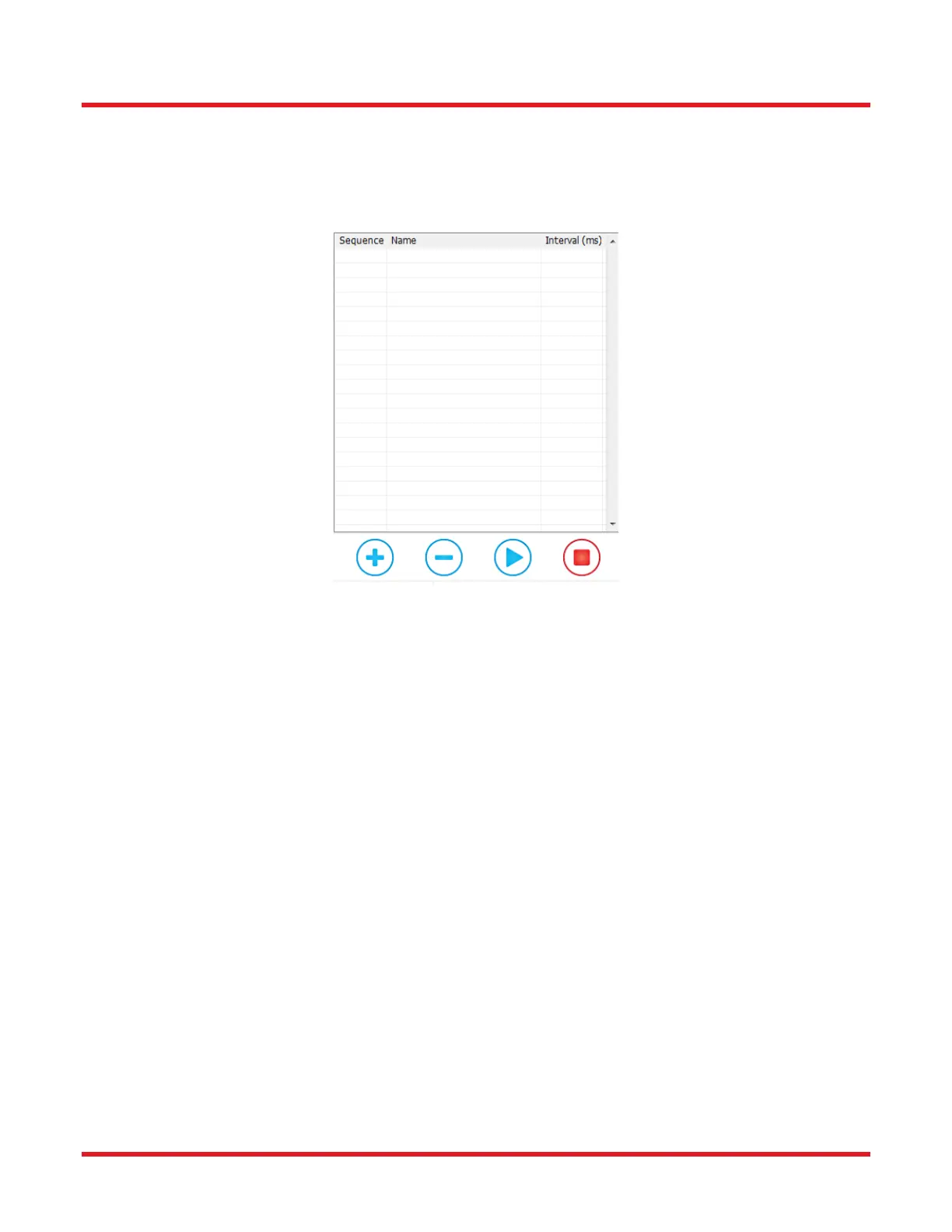

Figure 30 Sequence Setting area
User defined patterns (up to 50 frames) are supported and can be added into the sequence table. The default
interval is 300 ms.
The four control buttons from left to right are “Add to Sequence”, “Remove from Sequence”, “Play the Sequence”
and “Stop Sequence”.
Add to Sequence
Add the current preview pattern into the sequence table.
Remove from Sequence
Remove the selected pattern from the sequence table.
Play the Sequence
Run the sequence with defined interval.
Stop the Sequence
Stop and quit the sequence mode.
5.3.6. Status Bar
The status bar displays information about the system status and the connection status.
