Rev K Jan 2020
Page 56
Chapter 7 Software Reference
D.2.5 Power Saving
The current needed to hold a motor in a fixed position is much smaller than the current
needed to move it, and it is advantageous to reduce the current through a stationary
motor in order to reduce heating. Although this heating does not harm the motor or
stage, it is often undesirable because it can cause thermal movements through
expansion of the metal of the stage.
For this reason, power saving is implemented by default from the software drivers.
When a motor is moving, the ‘Move Power’ is applied. When a motor is stationary, the
‘Rest Power’ is applied. See ‘Phase Powers’ in Section 7.3.3. for more details on
these power settings.
D.3 Error Correction
D.3.1 Backlash correction
The term backlash refers to the tendency of the stage to reach a different position
depending on the direction of approach.
Backlash can be overcome by always making the last portion of a move in the same

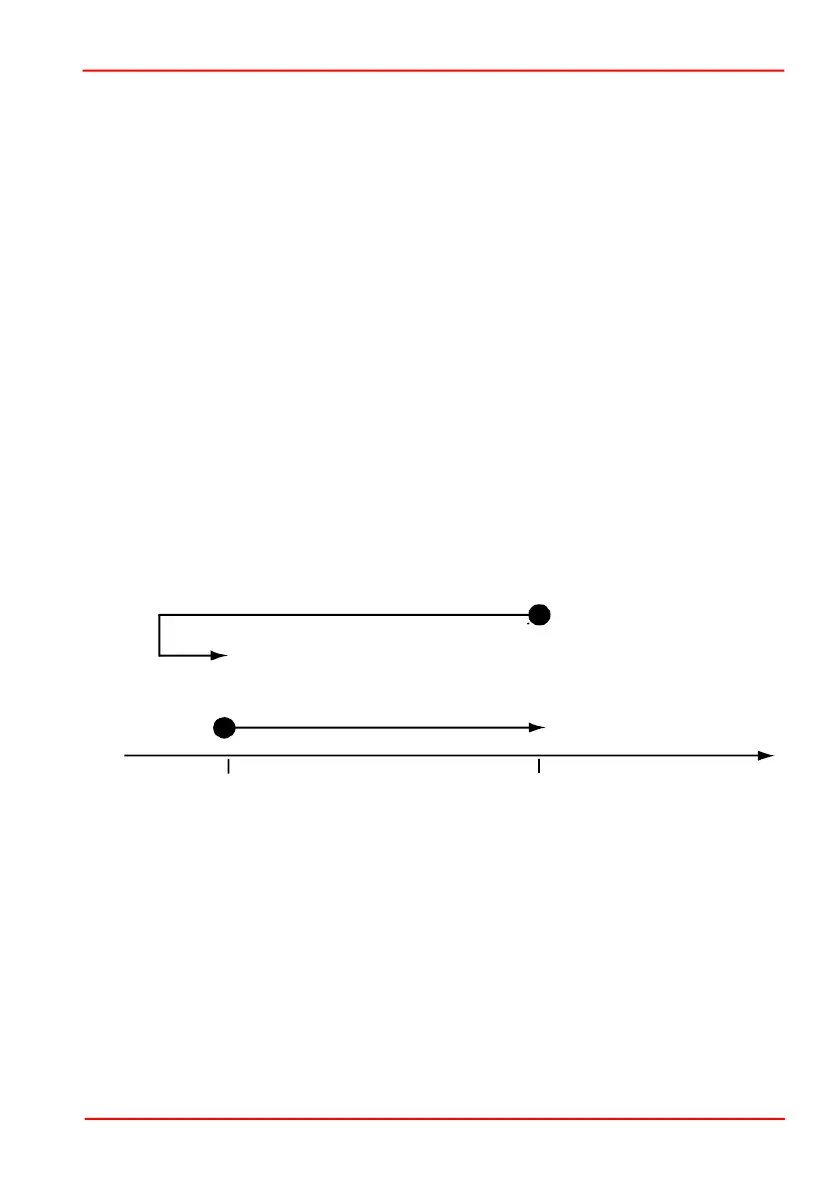

direction, conventionally the positive direction. Consider the situation in Fig. 4.6, a
positive move, from 10 to 20 mm, is carried out as one simple move, whereas a
negative move, from 20 to 10 mm, first causes the stage to overshoot the target
position and then move positively through a small amount.
Fig. 4.6 Backlash correction
The controller has this type of ‘backlash correction’ enabled as its default mode of
operation, but it can be overridden if the overshoot part of the move is unacceptable
for a particular application.
See Section 7.3.1. for details on setting the backlash correction.
negative move
positive move
10mm 20mm
position
