Page 11 16275-D02
LTS Series Long Travel Stages
3.3.3 Mounting In Multi-Axis Configurations
The LTS series stages can be mounted in XY configurations using the LTSP1 spacer
plate. The LTSP2 and LTSP3 angle brackets allow the LTS150 and LTS300 stages
respectively to be mounted vertically in Z axis configurations.
Please see the documentation supplied with the adapter plates for more details.

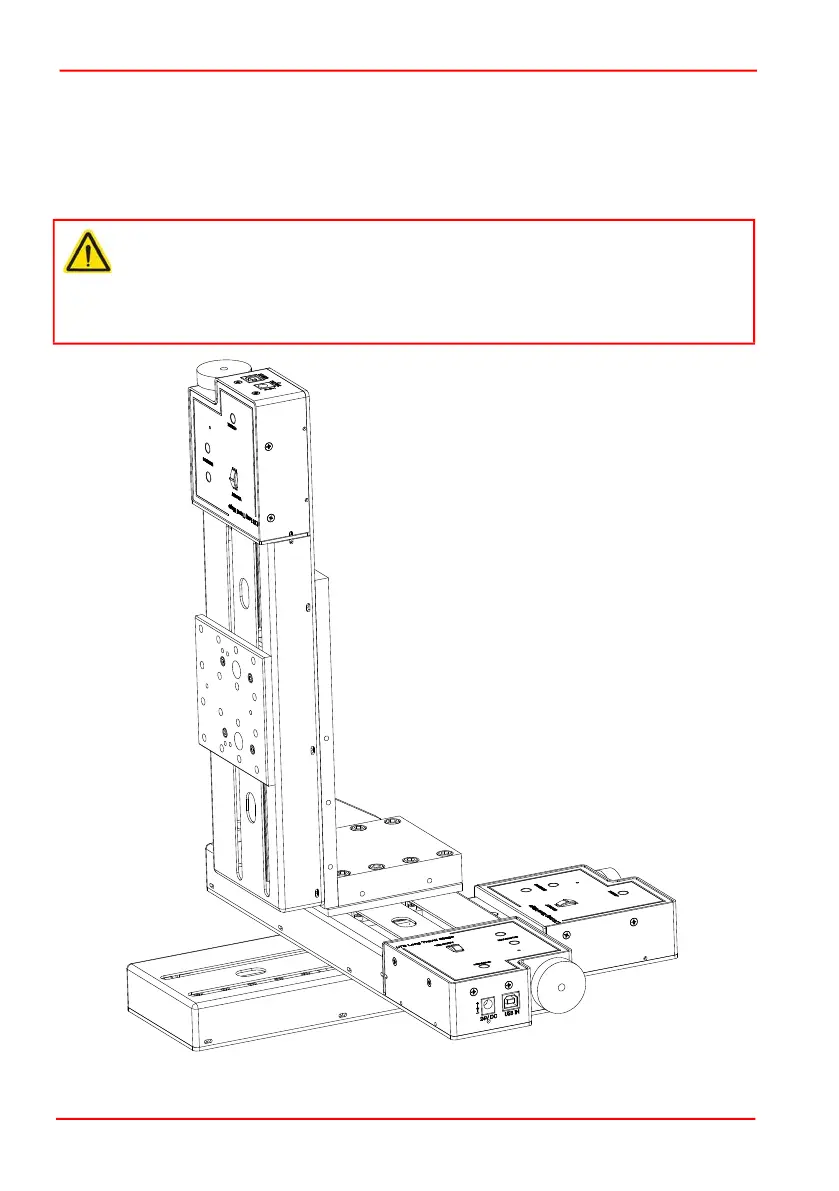

Fig. 3.2 Typical XYZ Configuration
Caution
When mounted in a vertical (Z-axis) orientation, the maximum load capacity is
4 kg and the maximum velocity is 3 mm/sec. For safety reasons, the Max Vel
parameter in the software Settings panel should be set to 3 mm/sec - see
Section 7.3.1. for more details.
