LTS Series Long Travel Stages
Appendix B Specifications and Accessories
B.1 General Specifications
Parameter Value
Controller Specifications
Microsteps per Full Step 2048
Microsteps per Revolution of Motor 409,600 (for 200 step motor)
Motor Drive Voltage 24 V
Motor Drive Power Up to 25 W (Peak)/ 12.5 W (Avg)
Motor Speeds Up to 3000 RPM (200 Full Step Motor)
Stage Specifications
Bidirectional Repeatability < ±2 µm
Calibrated Accuracy < ±5 µm
Backlash 2 µm

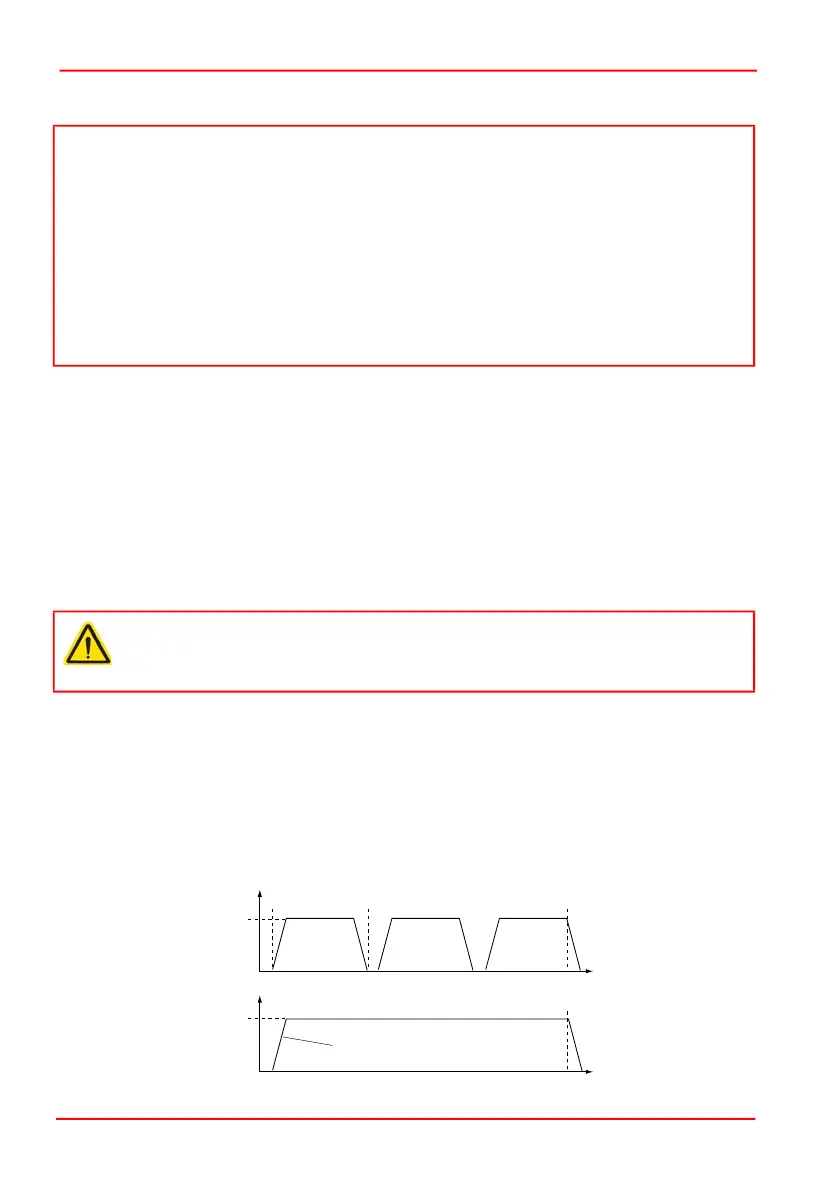

Maximum Acceleration
50 mm/sec
2
Horizontal, 5 mm/sec
2
Vertical
Maximum Horiz Velocity 50 mm/s
Maximum Vertical Velocity 3 mm/s
Velocity Stability ± 1 mm/sec
Max Load Capacity 15 kg Horizontal, 4 kg Vertical
Recommended Horizontal
Load Capacity
< 12 kg
Minimum Achievable
Incremental Movement
0.1 µm
Minimum Repeatable
Incremental Movement
4 µm
Absolute On-Axis Accuracy LTS150 20 µm LTS300 47 µm
Maximum Percentage Accuracy LTS150 0.13 % LTS300 0.12 %
Home Location Accuracy ±0.6 µm
Pitch LTS150 0.016° LTS300 0.022°
Yaw LTS150 0.05° LTS300 0.06°
Construction Aluminum with precision,
recirculating linear bearings
Weight LTS150 1.9 kg (4.8 lb)
LTS300 2.5 kg (5.5 lb)
