THORLABS PM100D Quick Reference

Operating the PM100D 7
© 2017 Thorlabs

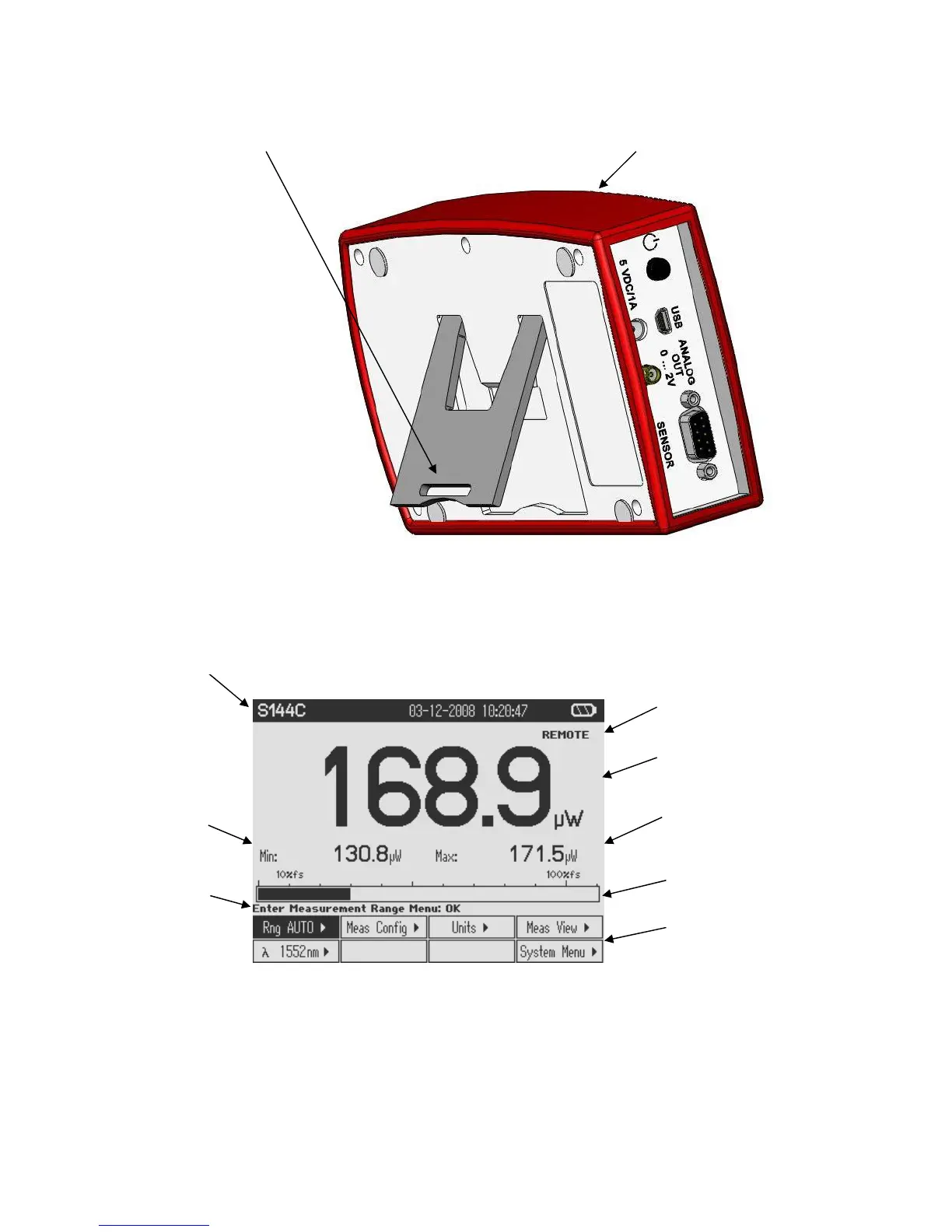

Figure 4 Rear View
Figure 5 Numeric Display Setup
Pull here to lift the support
Removable protective
Rubber boot
Header Line with Sensor Information, Date/Time and Battery state
Status Line with
Annunciators
Configurable
Sub Display
Configurable
Sub Displa
y
Tool Tip Text
Bar Graph
Menu Soft But-
tons
Main Display

THORLABS PM100D Specifications

General

Data Logging	Yes
Storage Temperature Range	-20 °C to 70 °C
Power Accuracy	±0.5% of reading
Interface	USB
Power Supply	USB or AC Adapter
Display Update Rate	10 Hz
Detector Type	Photodiode or Thermopile (Sensor Dependent)
