3.4.2 Power and Energy Measurement in the Numeric Display

The numeric display contains a large configurable measurement value, two

small sub displays for additional measurement information, and a bar-graph

that shows the saturation degree of the chosen measurement range. To con-

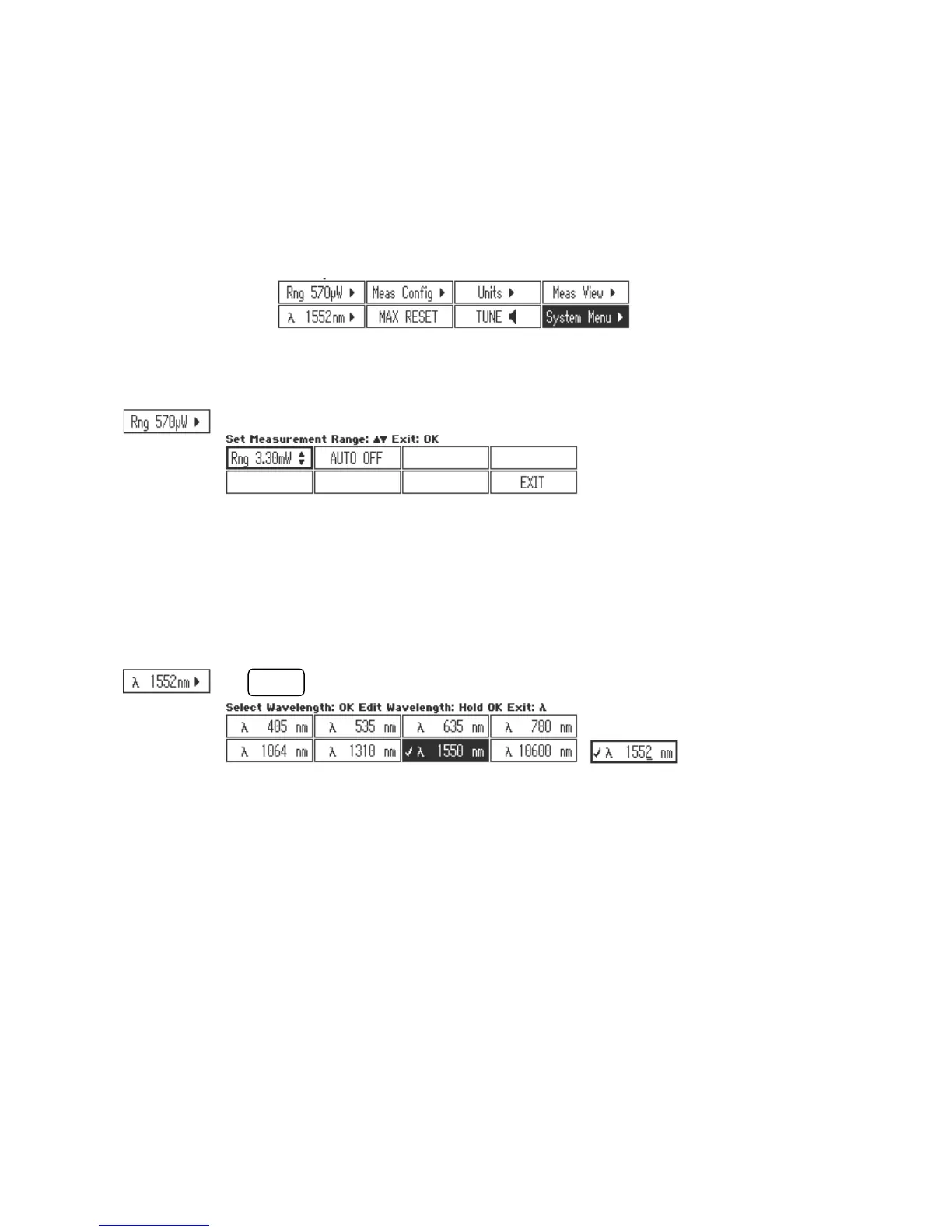

trol and configure the numeric display the soft buttons in the top level are ar-

ranged as following:

3.4.3.1 Range Control

Up to 6 power corresponding current and 4 power / energy corresponding

voltage ranges can be chosen manually with the  or  keys. For power

measurements an auto-ranging function is available.

3.4.3.2 Wavelength Correction

The menu offers 8 individually configurable sensor independent wavelength

settings.

To edit a wavelength keep the OK key pressed for 1 second. Set the desired

wavelength with the  keys.
