6 PM100D
© 2017 Thorlabs
3.2 Operating Elements

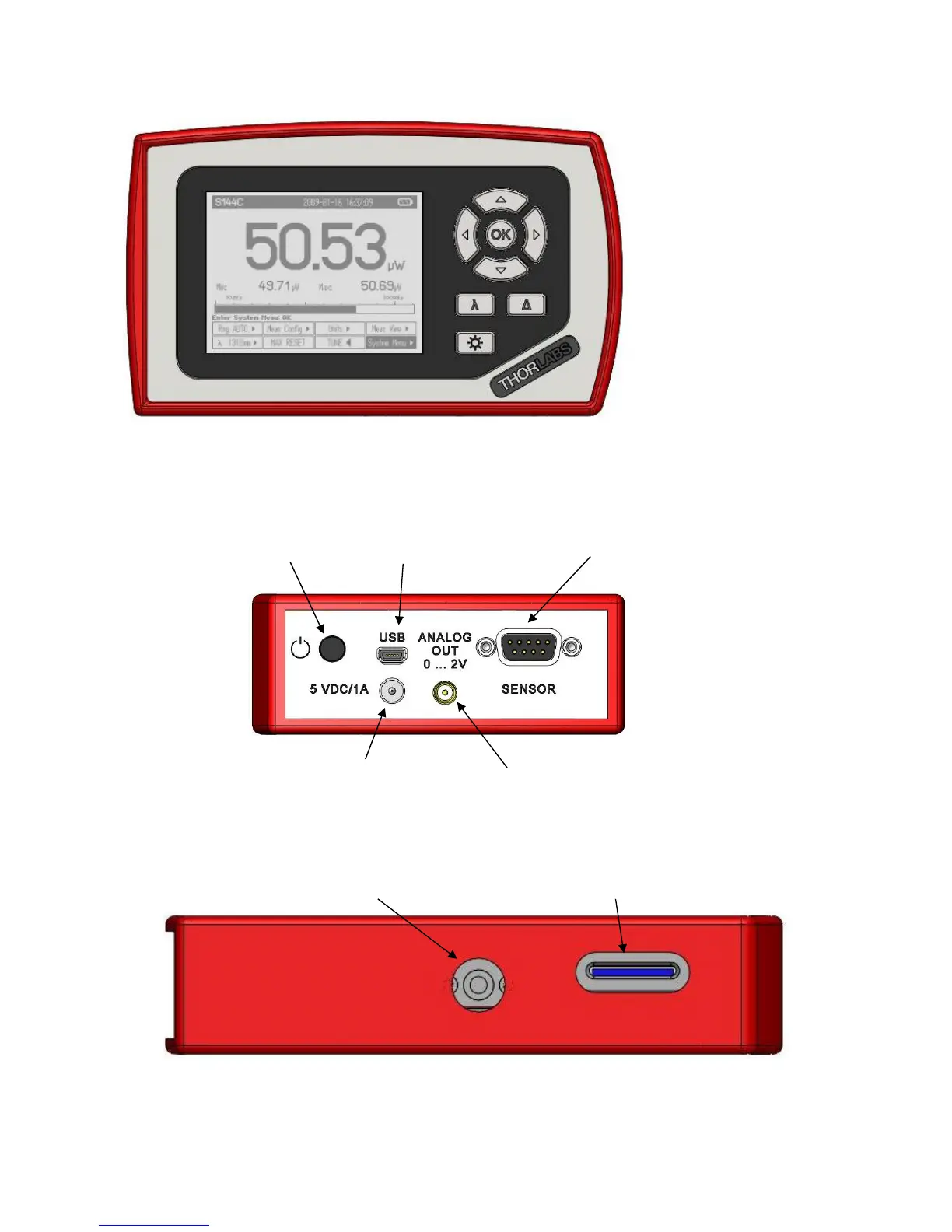

Figure 1 Front Panel
Figure 2 Side Panel
Figure 3 Bottom View
On/Off Switch USB Connector Sensor Connector
(DB9 female)
DC Input (Charger) Analog Output (SMA)
Function Keys:
Navigation: 
Enter/Edit: OK
Wavelength: λ
Relative Measure: ∆
Backlight:
Mounting Thread 1/4“-20 SD Card Slot
