Two aluminum dowel pins, located on either side of the bulb module, may slip out
of their holes while the module is being removed. Be careful not to misplace them
as they are needed for the new module installation.

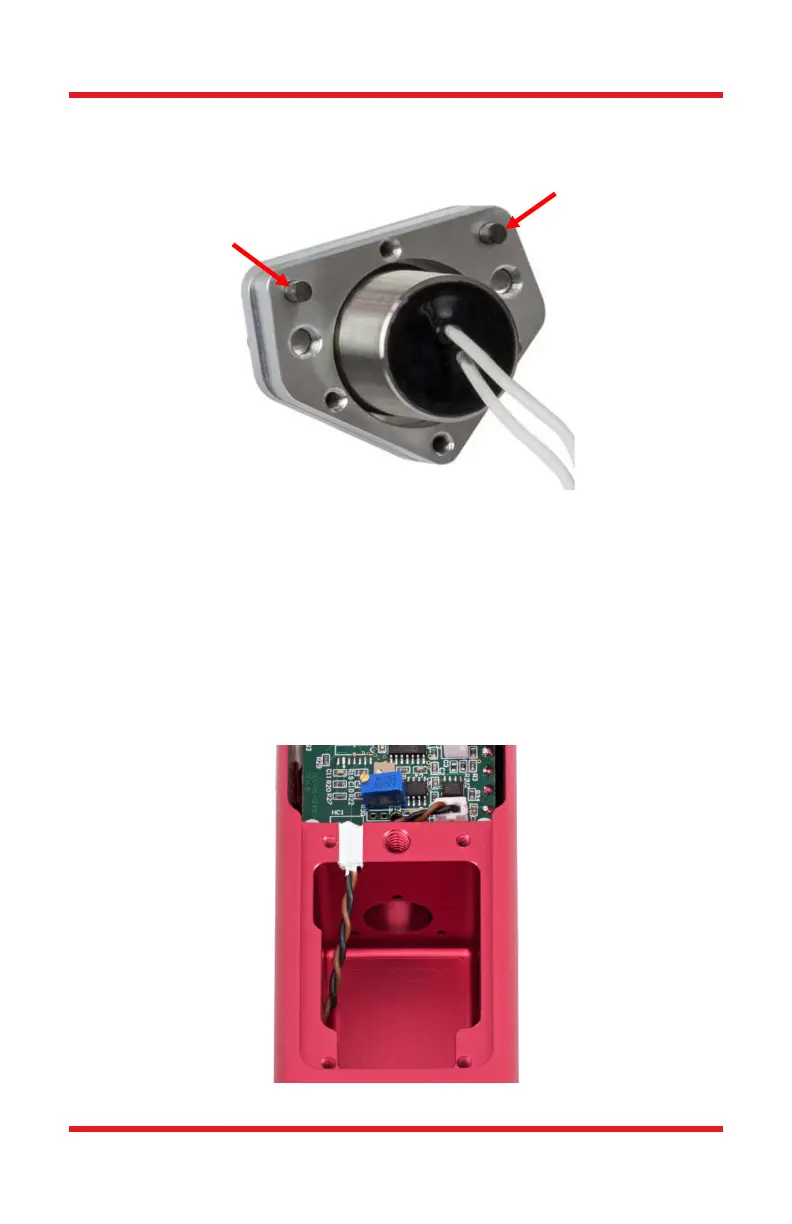

Figure 19 Do not remove the dowel pins on the bulb module.
To install the new bulb module, place the two dowel pins in their corresponding
holes in the new bulb module.
Slide the new bulb module in the bulb chamber. Pass the wire and plug through
the hole in the central wall first and then insert the module. The two dowel pins
should slide smoothly into the holes in the wall.
While pressing the bulb against the central wall, screw the cap screw back in using
the included 1.5 mm hex key.
Insert the white plug back into the circuit board and secure the cavity cover.
Figure 20 Holes on the Central Wall for Bulb Dowel Pins
