THUNDER TIGER Sparrowhawk XXT Maintenance Manual & Parts Catalogue

13

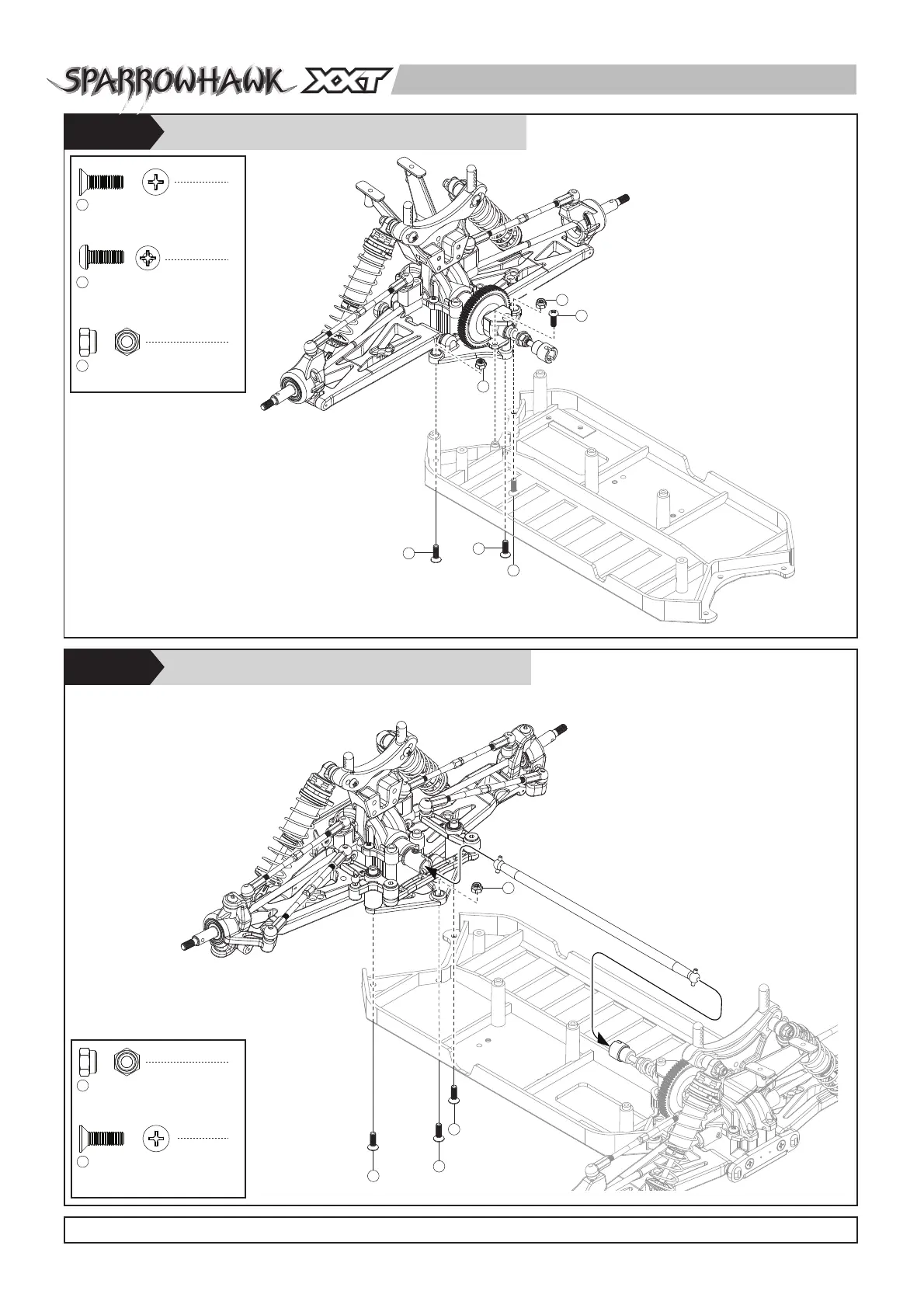

Installation of Rear End 結合後擺臂懸吊組
STEP9
1
3
3x10mm
F/H Philip Machine Screw
平頭十字螺絲
2
3x8mm
BT Philip Machine Screw
圓頭十字螺絲
1
3
M3 Lock Nut
止鬆螺帽
2
〈Rear Suspensison〉
〈將後擺臂懸吊組結合於底板上〉
3
1
3
2
1
1
Installation of Front End 結合前擺臂懸吊組
1
1
2
3
M3 Lock Nut
止鬆螺帽
3x10mm
F/H Philip Machine Screw
平頭十字螺絲
1
2
2
2
〈Front Suspensison〉
〈將前擺臂懸吊組結合於底板上〉
STEP10
