THUNDER TIGER Sparrowhawk XXT Maintenance Manual & Parts Catalogue

2
1
1
Leave one unit of drive axle for
next step.
將剩餘組件留待接下步驟組裝
3mm
Washer
墊圈
1
2
4
3x25 mm
BT Philip Machine Screw
圓頭十字螺絲
2
2
3x16 mm
BT Philip Machine Screw
圓頭十字螺絲
3

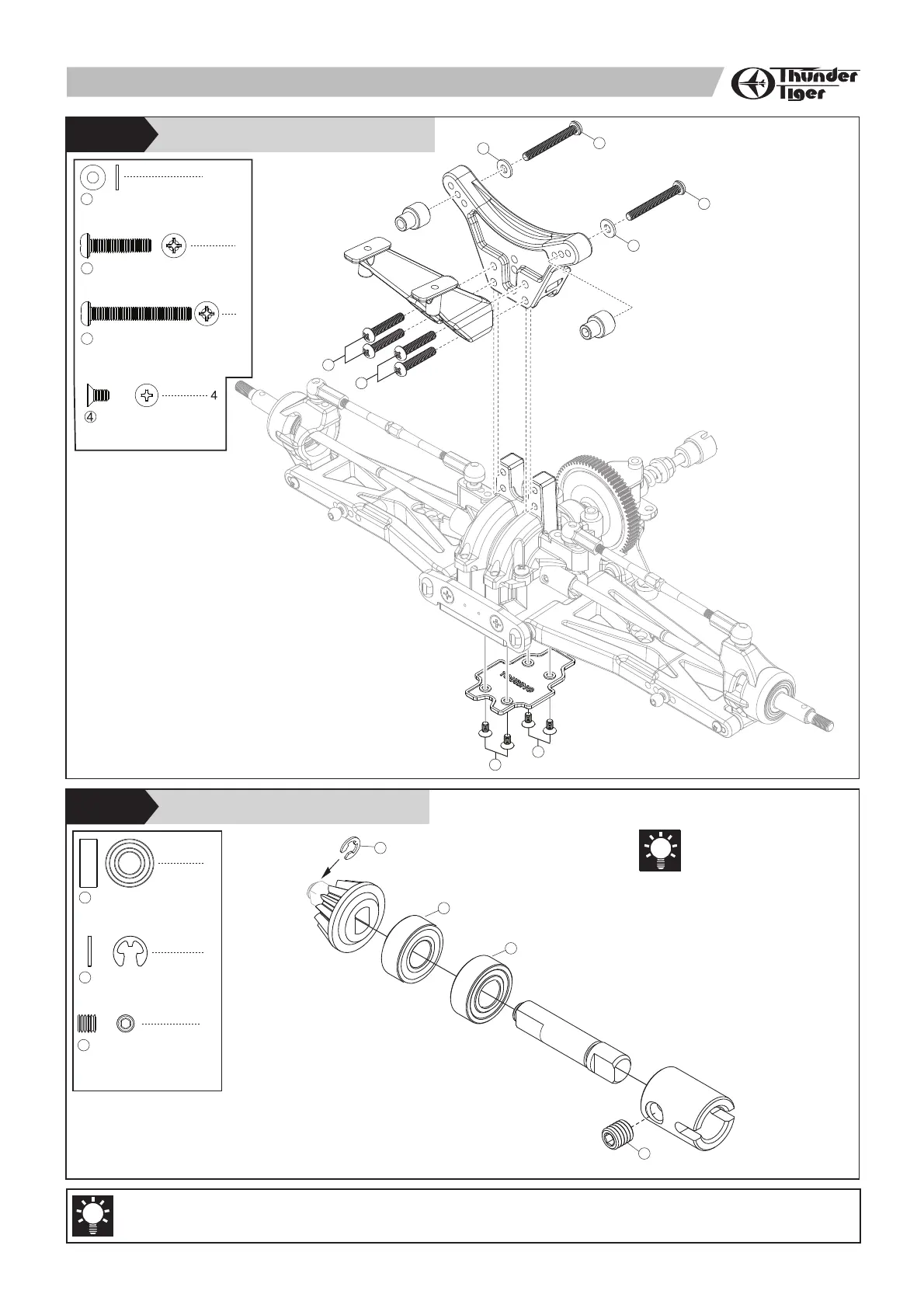

Rear Suspension 後擺臂懸吊組
STEP4
Front Differential Unit 前差速箱
STEP5
2
5x11x4 mm
Ball Bearing
軸承
1
2.5mm
E-clip
E型扣環
2
1
1
4x3mm
Set Screw
無頭內六角固定螺絲
3
Hint
組裝提示
3
6
1
1
2
2
3
3
2.5x6 mm
F/H Philip Machine Screw
平頭十字螺絲
4
4
