Must be purchased separately
改裝品需另購
silicon oil
矽油
Assemble as many times
as specified
依指示組裝所需數量

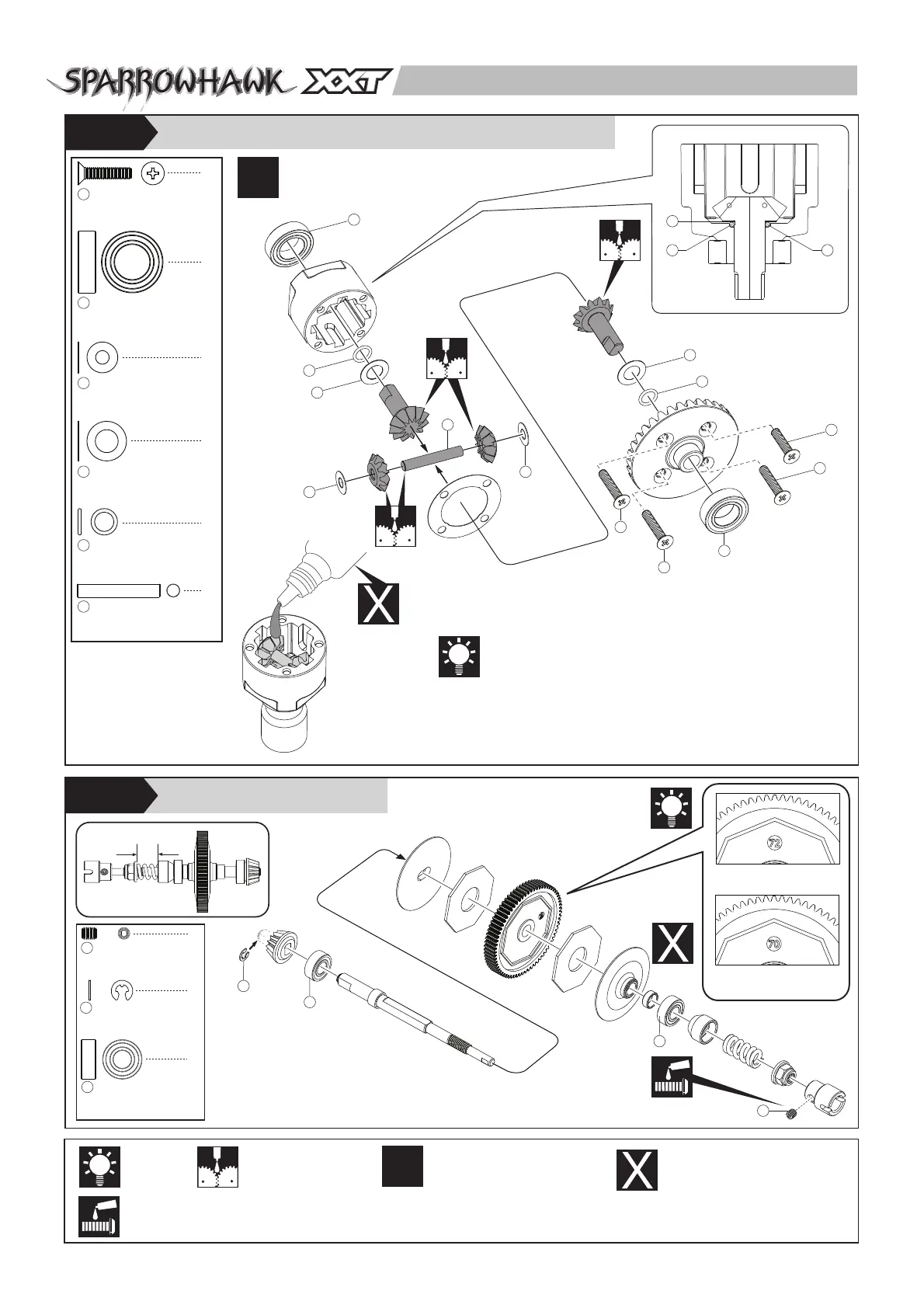

STEP2
Slipper Clutch 扭力控制器
STEP1
Front Differential 前差速組 / Rear Differential 後差速組
Hint
組裝提示
2
1
4
4
4
4
8
8x14x4mm
Ball Bearing
軸承
2
2.5x12mm
F/H Philip Machine Screw
平頭十字螺絲
1
3x5mm
Washer
墊圈
3
5x8mm
Washer
墊圈
4
4.4x0.9mm
O-Ring
O型環
5
3x19mm
Pin
銷
6
5
4
3
6
3
1
1
2
1
1
5
4
4
5
5
X
2
X
2
7mm
Side View
側視圖
Apply threadlocker
使用螺絲防鬆膠
Standard
標準件
Optional
改裝件
2
1
3
3
1
3x3mm
Set Screw
無頭內六角螺絲
1
1
2.5 mm
E-clip
E型扣環
2
2
5x11x4 mm
Ball Bearing
軸承
3
3
You may also use silicone oil to replace grease for the
differentials. Fill up to 80%. Change the viscosity of the silicone
oil according to track conditions and your driving style.
玩家可依需求選購不同番號之差速矽油來取代原廠組裝使用之
黃油。裝填時液面請勿超過差速本體上緣(約八分滿即可)。差
速矽油需另外採購。玩家可依操作習慣及操作路面情況選擇適
合濃度之矽油來調整差速反應。
Apply grease
使用潤滑油膏(黃油)
To Next Page
