13
L. INSTALL JUNCTION BOX
Determine where, underneath the track, you’ll be
mounting the junction box. Route the power wire
from under the end cap, down the center of the
underside of the track to where the box will be. Give
yourself an inch or two of slack and strip back the
wires.
The junction box will come from the factory
pre-wired to the Edison Plug that goes to the wall.
You will have to wire the grey power wire from the
Flex Chain.
All needed connectors are supplied in the
junction box.
Insert the grey wire and connect these ends on the
wires:
Note that there are two black wires. Their jackets are
labeled L1 and L2. It DOES matter which one goes
where.
Now make the connections. There are six wires total
in the junction box, three coming in from the track,
and three going out to the plug in the wall. Below is
a chart to help you double check your wiring.
From Grey Cable Should be connected to:
Black wire (L1) Top Circuit Breaker
Black wire (L2) Wire nutted together with
White wire
Green and Yellow Striped Wire Bolted to Grounding Nut
From Black Cable Should be connected to:
White wire Wire nutted together with
Black wire (L2)
Dark Green Wire Bolted to Grounding Nut
Black wire Bottom Circuit Breaker

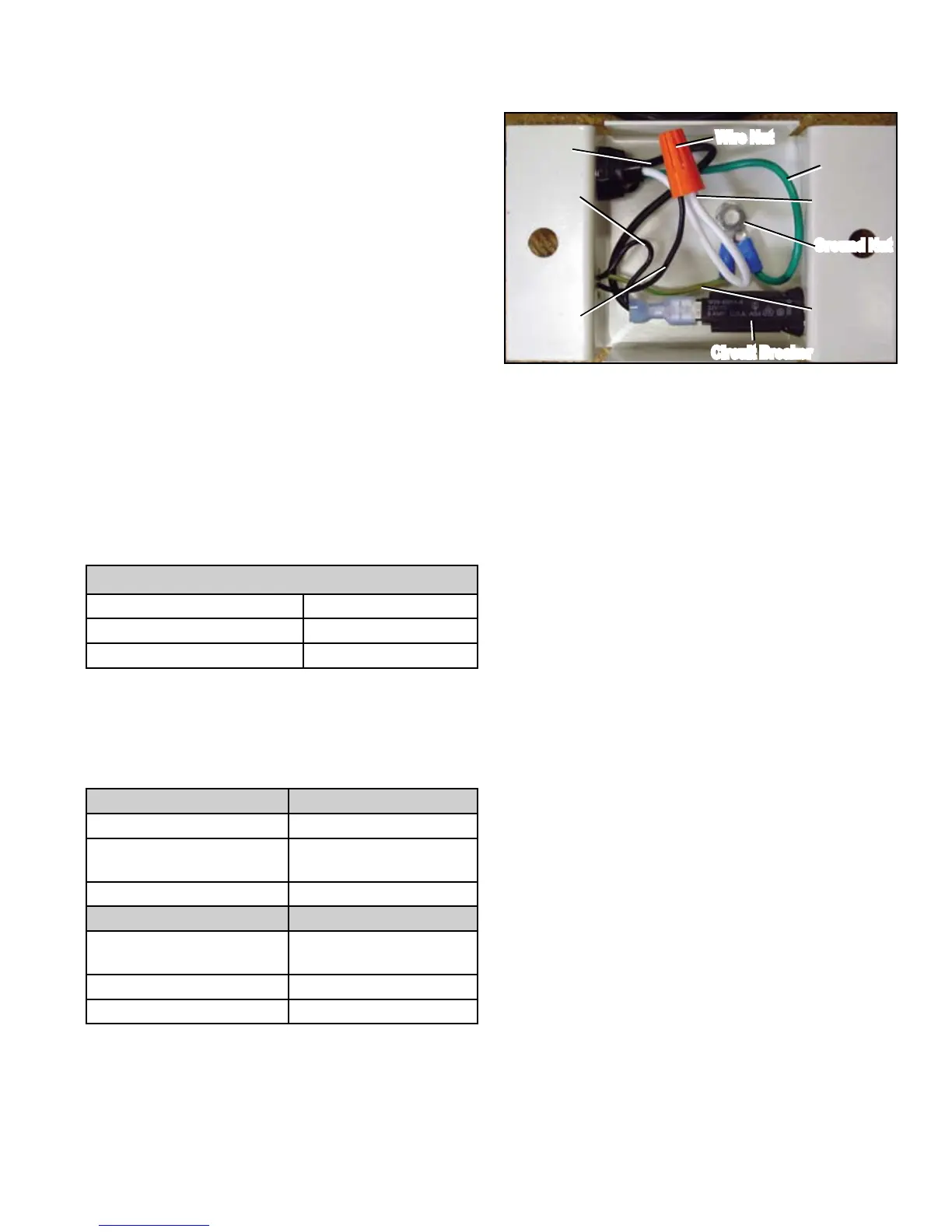

The nished product should look something like
this:
Green
White
Green and
Yellow
stripe
Black
(to wall)
Black L1
Black L2
Circuit Breaker
Wire Nut
Ground Nut
Power Wire Connection Chart
Black wire (L1) Spade Connector
Black wire (L2) Leave Bare
Green and Yellow Striped wire Ring Terminal
Place the black Heyco plug into the hole where the
grey power wire enters the junction box. Heyco
pliers come in especially handy here.
Slide a T-bolt down each side of the track. Attach
the Junction box to the track using two T-bolts and
two nuts.
Plug into the wall.
