ThyssenKrupp Access Citia - Install the Top End Cap; Adjust the Tracking Rollers

14

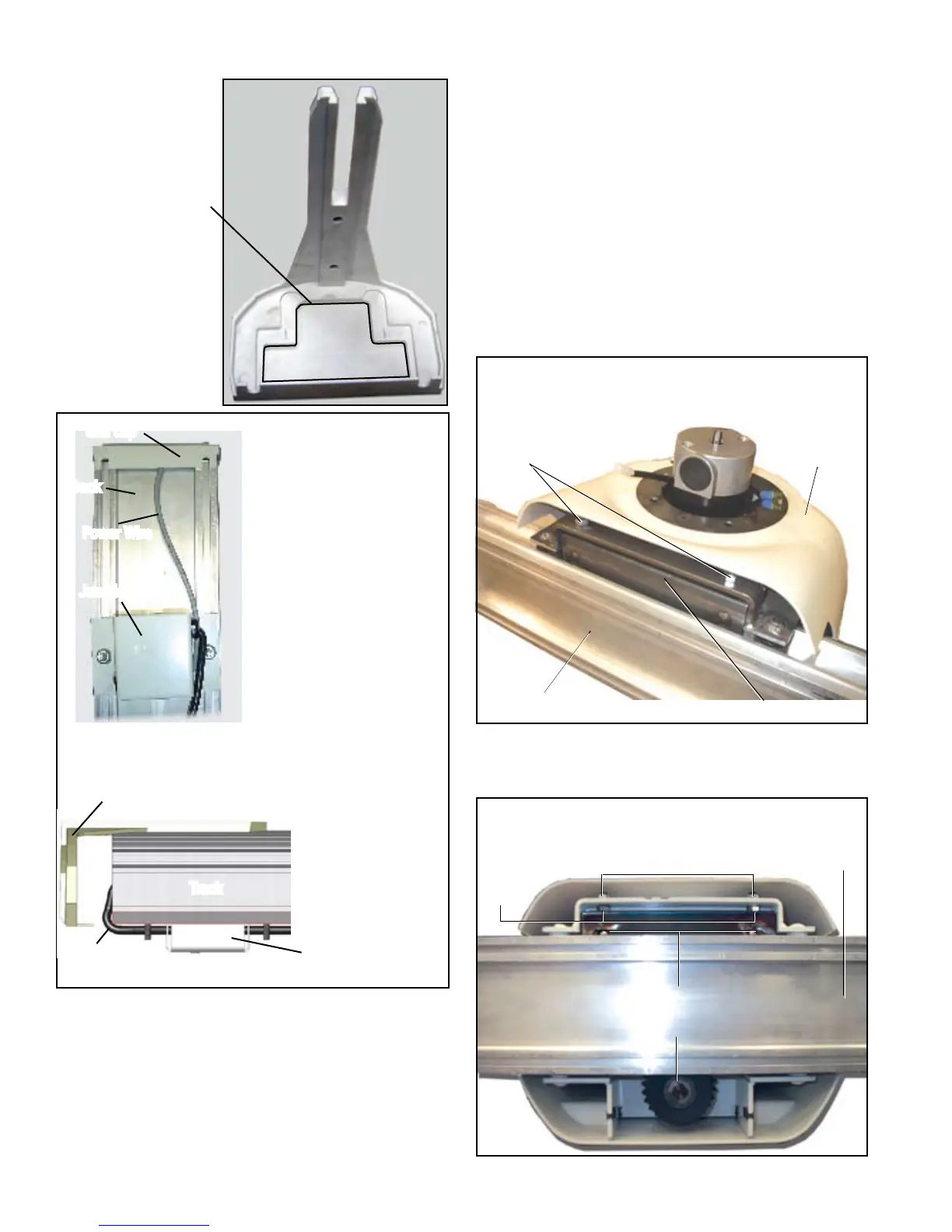

K. INSTALL THE TOP END CAP
Route the power wire
out through the
bottom of the end
cap.
IT IS CRUCIAL
that the power
wire fit into the
recessed area of
the end cap on
its way out. If it
is anywhere else
the wire will pinch
and may possibly
short out.
Wire MUST
t in this
area
To help further explain
the power wire
placement, refer to the
illustrations below. The
side view features a
cutaway of the side of
the end cap to reveal
how the power wire is
routed out of the track,
into the end cap and
down under the track.
The bottom view shows
how the power wire
runs under the track,
down the center to the
junction box.
Side View of end cap
end cap
Track
Power Wire
Bottom View
of end cap
end cap
Track
Power Wire
Junction Box
Junction Box
M. ADJUST THE TRACKING ROLLERS
Loosen locknuts on take-up assembly
Using a wrench, tighten jack-nuts against the chassis.
The gear set wheel should now be tight against the
track.
Tighten locknuts.
Take care in tightening locknuts. The take up assembly
should be level with the track.
Bottom of Track
Track and Chassis (Bottom View)
Chassis
Locknuts
Take-up assembly
Take-up Assembly
(Bottom View, Track in Place)
Jack-nuts
Locknuts
Gear Set Wheel
Take Up Wheels
Bottom of Track
