4
II. TYPICAL COMPONENTS
A. DETERMINE WHERE THE TRACK WILL
BE INSTALLED
Determine which side of the stairway the lift will be installed
on.
Note: The gear rack must be installed on the side nearest
the wall, regardless of whether it is a right-hand or
left-hand installation.
Mount This way, OR this way
Gear Rack
Gear Rack
(against wall)
Starlift Tracks
Fixed or
Fold-Up Seat
(depends on
model)
Chassis
Folding
Footrest
Swivel Seat
Handle
Unit Control

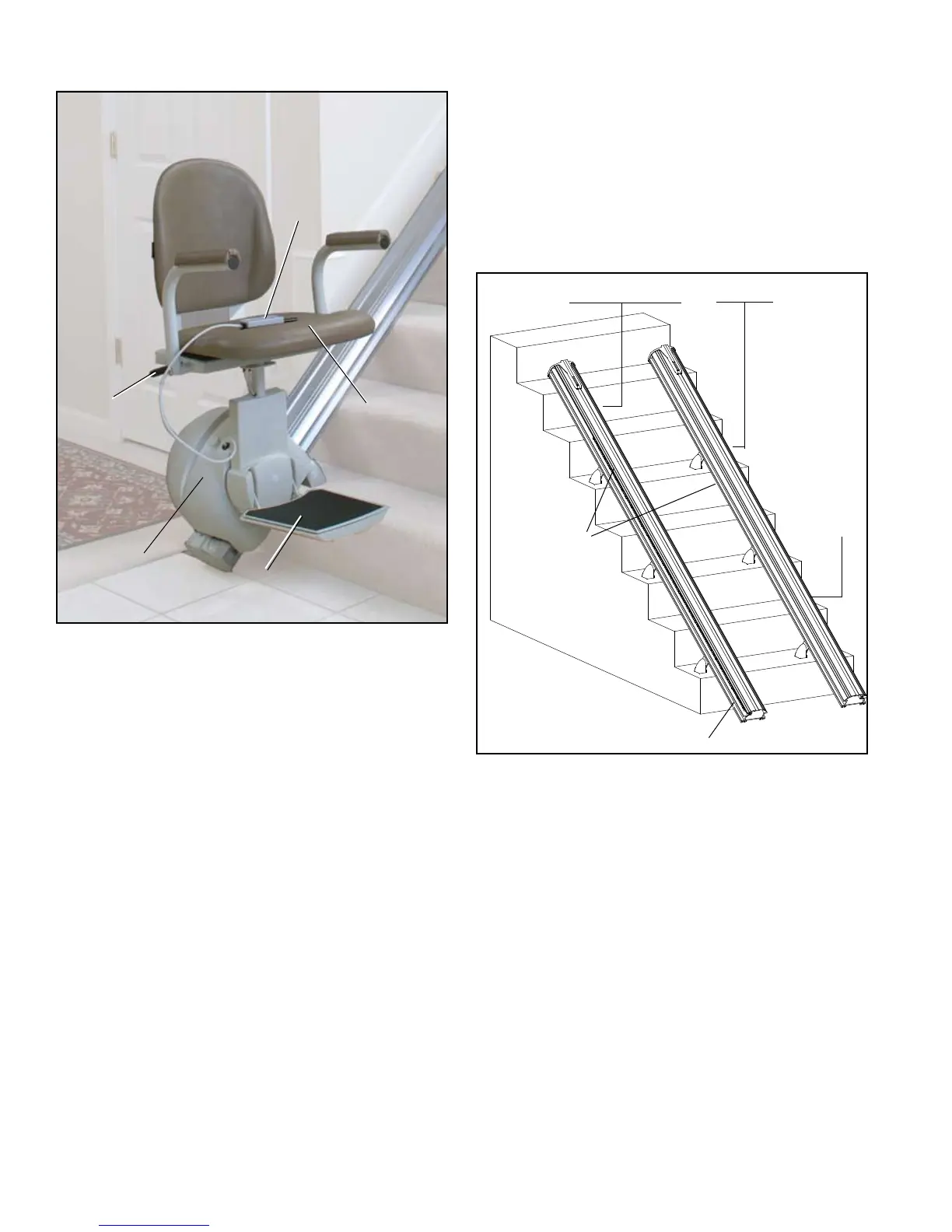

Pictured above is a Citia Select on a BOS track.
The Citia and Aveya models both feature
interchangeable seats. The seat on the unit you
are installing may not look exactly like this. The
A/C track has a channel down the middle which
Regardless, the installation procedures are alike for
all Citia and Aveya models.
If you change the unit to Left Hand, you will need
to change a plug on the unit. Information for hand
changing on the unit can be found on page 10.
