ThyssenKrupp Access Citia - E.T.L. REQUIREMENTS; SERVICE INFORMATION; GENERAL SPECIFICATIONS; STANDARD EQUIPMENT

19
V. E.T.L. REQUIREMENTS
This E.T.L. listed stairway lift must meet the latest ASME
A18.1aspecicationsfortheE.T.L.listingtobevalid.
The following rules must be complied to at the installation
site.
Rule 7.1.1
A free passage width of no less than 20 in. shall be provided.
If the seat and platform can be folded when not in use, the
distance shall be measured from the folded position.
Rule 7.1.2
The structure on which the equipment is installed shall be
capable of safely supporting the loads imposed.
Rule 7.1.3
The installation of all electrical equipment and wiring shall
conform to the requirements ANSI/NFPA 70.
Rule 7.6.4
At no point in its travel shall the edge of the footrest facing
the upper landing be more than 24 in. above the step or
landing as measured vertically.
Rule 7.7.2
No lift shall be installed to operate on a greater incline than
45 deg. as measured on the mean.
VI. SERVICE INFORMATION
A. GENERAL SPECIFICATIONS
Rated Load: 375 lbs. (170 kg)
Speed: 18-25 fpm (dependant on angle of install and
load)
Travel: 32’ max. (track length)
Power Supply: Dedicated* 115VAC, 60 Hz, 3-wire
grounded outlet
Incline Limits: 25° to 45°
ETL Listed when properly installed
B. STANDARD EQUIPMENT
Drive System: Rack and pinion
Motor: .5 hp, 120 VDC
Motor Controller: SoftStart/SoftStop
Brake: Self locking worm gear
Seat:
•Standard-18”widexedseatwithtwoxedarmsOR
•Select-18”widexed,upholsteredseatwithOR
•Excel-19”widefoldingseatwithtwoxedarms
•Seatbelt
•70°lockingswivelatupperandlowerlandings
Controls: Low voltage up-down hand-held control on unit
and two wireless remote controls

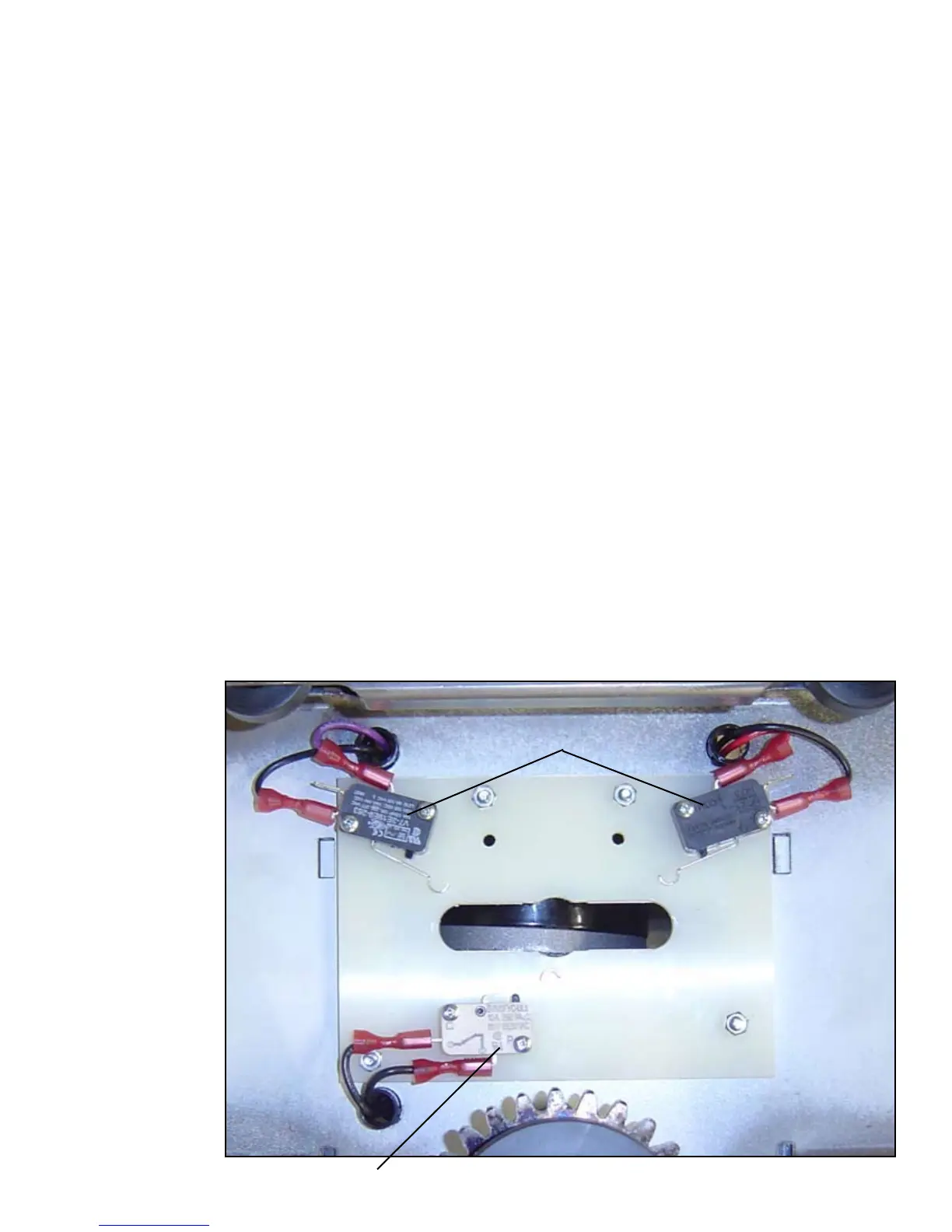

upper and lower
stops
upperandlowernallimit
