INSTALLATION
57
NA011 - Manual - 05 - 2022

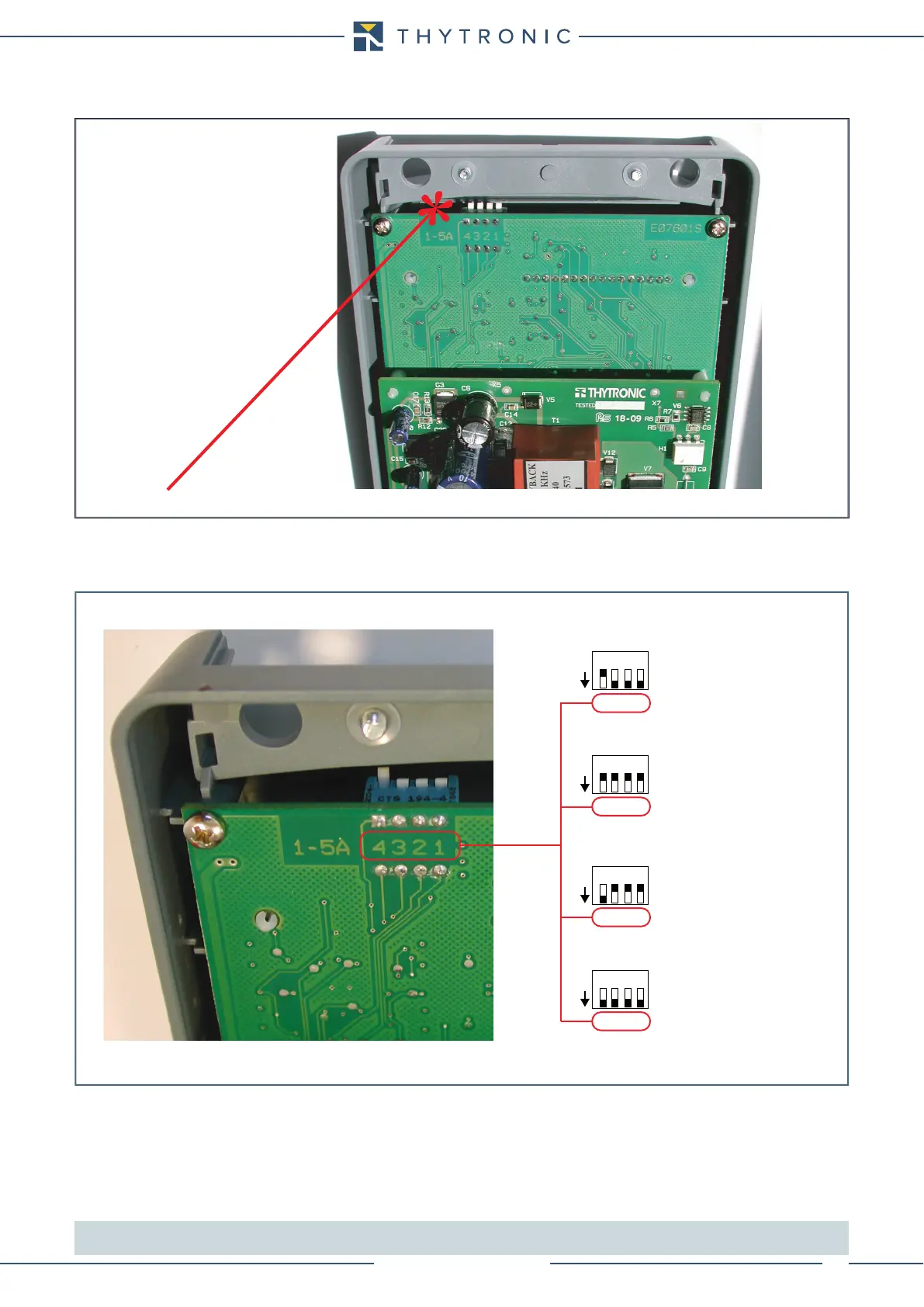

• Set the dip-switches on the top of the circuit board in accordance with the drawing shown below,.
• Move dip-switches according the following layout.
[1]
Note1 On NA011#xxx0 and NA011#xxx1 versions (without residual input circuit), the IE setting is not meaningful.
Place switches 1 ... 4 according to the number on the printed circuit board (not considering the numbers on the component)
Dip-swithes position
Dip-switch localization concerning the nominal current setting inside the front board
Default settings:
- I
n
=5 A
- I
En
=1 A
Settings:
- I
n
=5 A
- I
En
=5 A
Settings:
- I
n
=1 A
- I
En
=1 A
Settings:
- I
n
=1 A
- I
En
=5 A
1 A
5 A
ON
IL1 IL3 IL2 IE
1 A
5 A
ON
IL1 IL3 IL2 IE
1 A
5 A
ON
IL1 IL3 IL2 IE
1 A
5 A
ON
IL1 IL3 IL2 IE
1234
1234
1234
1234
