15
Temperature: the temperature in °C, which is to be held for a defined time.
Time: the time for which the temperature is to be held.
Ramp: the rate of temperature changing in °C per second.
Reminding: the temperature setting range is 0.0°C ~100.0°C.
Reminding: the time setting range is 1s~60min.
Reminding: the ramp setting range is 0.1°C/s~5.5°C/s.
2) If the selected option is Touchdown step mode, the step edit window will be shown as
figure 3-3-5.

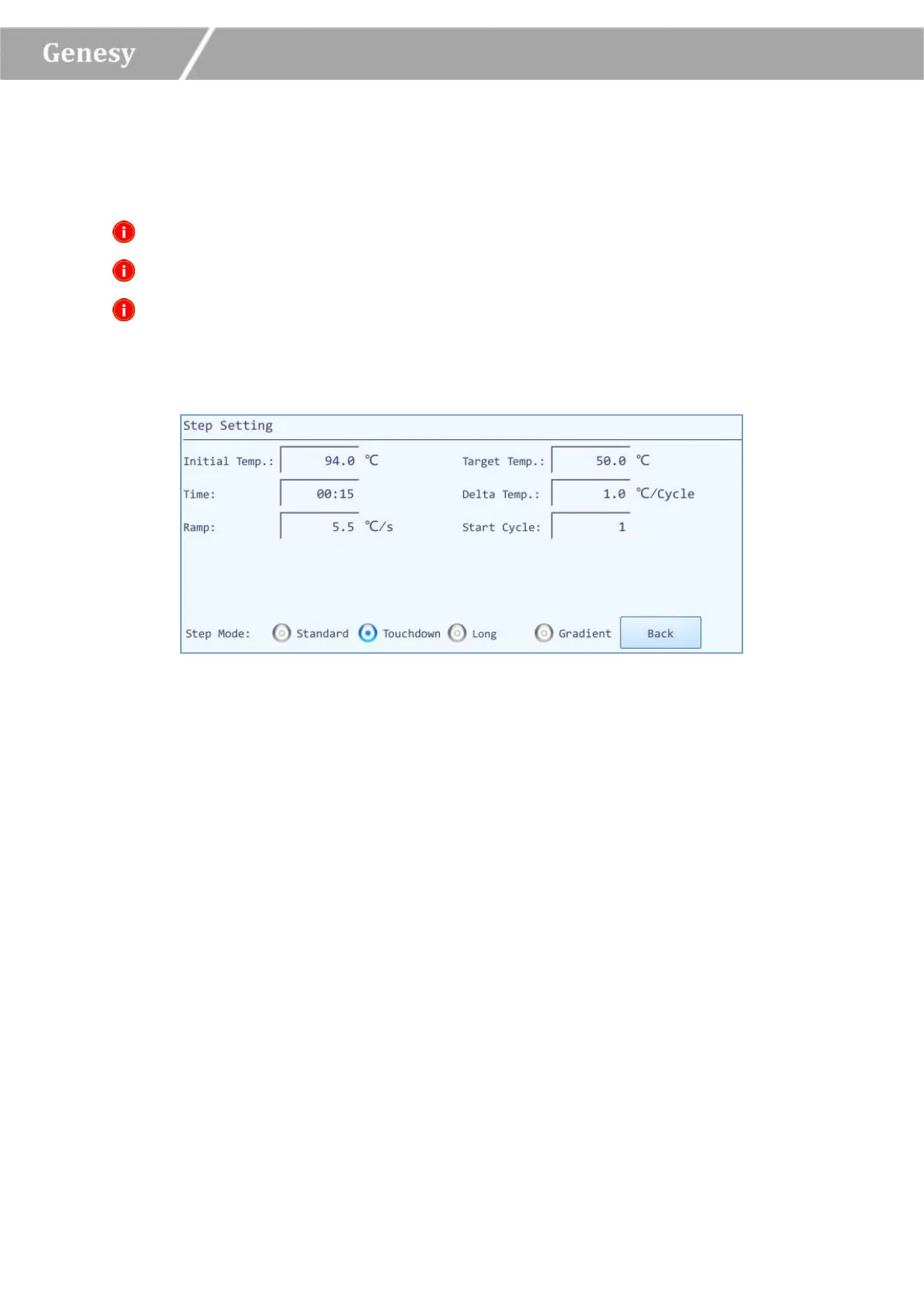

Figure 3-3-5 Step Edit Window - Touchdown Step Mode
► The touchdown step mode allows the temperature program to change the annealing step
temperature from the initial temperature to the target temperature as the cycling proceeds.
► Users could press the input boxes of Initial Temp., Target Temp., Delta Temp. and Start
Cycle to edit the corresponding parameters for the current touchdown step, as shown in
figure 3-3-6.
Initial Temp.: the initial value of annealing temperature change.
Target Temp.: the target value of annealing temperature change.
Delta Temp.: the temperature change in °C per cycle.
Start Cycle: the cycle number after which the temperature change is started.
