Tiger River Sumatran - Caspian (Model CHP) Leveling Points

Page 7
Installation Instructions
•15levelingpoints(placeshimsapprox.18”infromedge,thencentermiddleshims)
CASPIAN
™
(MODEL CHP)
LEVELING POINTS
NOTE:Alldimensionsareapproximate;measure
your spa before making critical design or pathway decisions.
18" (46cm) 18" (46cm)
32" (81cm)
47 1/4" (120cm)
84" (213cm)
25 1/2" (65cm)
53 3/4" (137cm)
18 1/2" (47cm)
21 1/2" (55cm)
21 1/2" (55cm)
18" (46cm)
84" (213cm)
DOOR SIDE

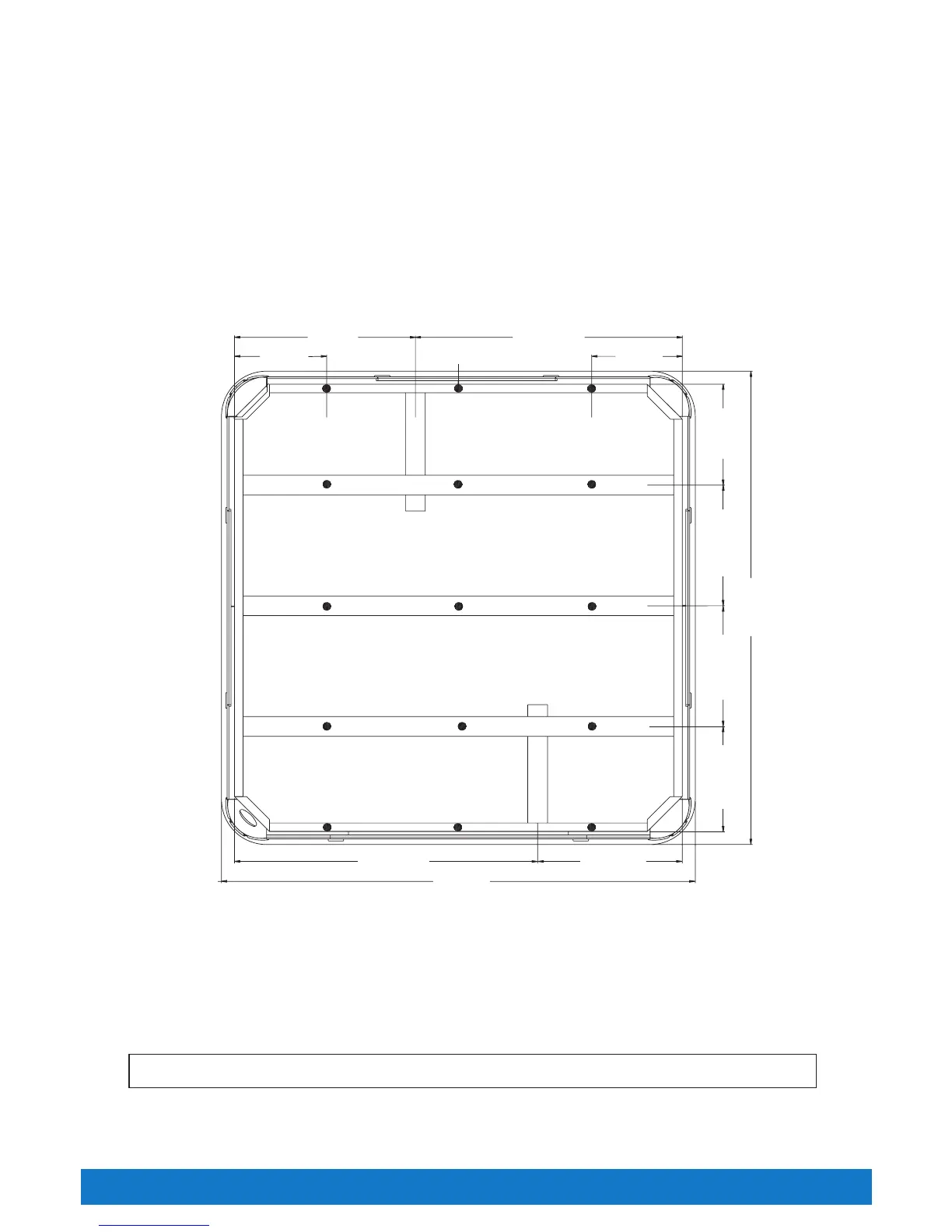

UPSIDE DOWN VIEW OF SPA
CENTER MIDDLE SHIMS
